| Place of Origin: | Shandong, China |
| Brand Name: | MIROC |
| Certification: | ISO, API |
| Model Number: | API Reg Thread DTH Drill Pipe |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Standrad export packaging or customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Material: | Carbon Steel | Type: | DTH Drill Pipe |
|---|---|---|---|
| Processing: | Forging, Friction Welding | Application: | Water Well Drilling, Mining, Rock Drilling, Quarry |
| Diameter: | 76-102mm | Length: | 1m, 1.5m, 3m |
| Advantage: | High Quality Raw Steel Pipe | Other Name: | Mining Drill Pipe, Water Well Drill Pipe |
| Color: | Black Or Printed | Packing: | Bundles, Wooden Cases |
| High Light: | api dth drill pipe,f thread dth drill pipe,reg thread dth drill pipe |
||

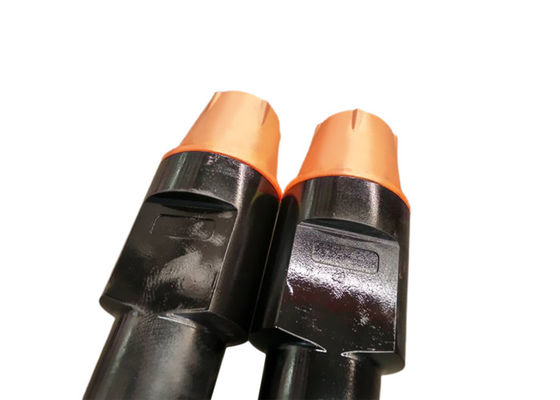

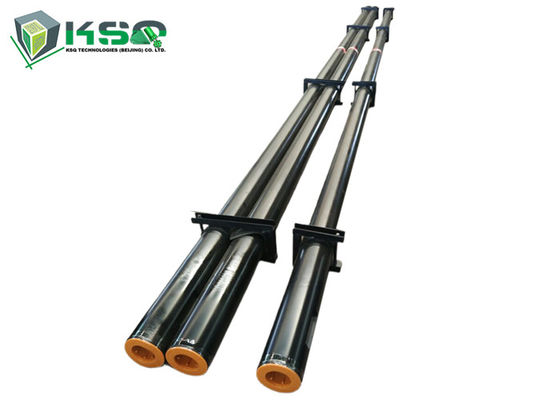

API Reg Thread Or F Thread DTH Drill Pipe And Sub For Water Well Drilling
A drill pipe is a seamless steel pipe that composes around 95% of the length of a drill string. For clarity, a drill string is what is used to actually drill into the ground to extract resources. The drill pipe is hollow, which allows drilling fluid to flow freely throughout the pipe and the pumping process to be completed successfully.Drill pipes are manufactured to transfer drilling torque the entire length of the pipe – often several miles. They are also created to resist pressure changes and need to have the ability to hold the entire weight of the deeper drilling components. Drill pipes are manufactured by welding together the threaded tool joint, the box tool joint and the pin tool joint. These joints are used in the top section of the drill string to pump fluid and transfer torque to the bit.
Specification
| Diameter (mm) |
Thread | Thickness (mm) |
Length (mm) |
Wrench Flat (mm) |
Weight (kg) |
Part Number |
| 76 | 2 3/8 API Reg | 5.5 | 1000 | 57 | 17 | 4148301544 |
| 76 | 2 3/8 API Reg | 5.5 | 1500 | 57 | 22 | 4148301545 |
| 76 | 2 3/8 API Reg | 5.5 | 2000 | 57 | 26 | 4148301546 |
| 76 | 2 3/8 API Reg | 5.5 | 3000 | 57 | 35 | 4148301547 |
| 76 | 2 3/8 API Reg | 5.5 | 1000 | 65 | 17 | 4148301548 |
| 76 | 2 3/8 API Reg | 5.5 | 1500 | 65 | 22 | 4148301549 |
| 76 | 2 3/8 API Reg | 5.5 | 2000 | 65 | 26 | 4148301550 |
| 76 | 2 3/8 API Reg | 5.5 | 3000 | 65 | 35 | 4148301551 |
| 76 | 2 3/8 API Reg | 6.5 | 3000 | 65 | 46 | 4148301552 |
| 76 | 2 3/8 API Reg | 6.5 | 4500 | 65 | 56 | 4148301553 |
| 76 | 2 3/8 API Reg | 6.5 | 6000 | 65 | 73 | 4148301554 |
| 89 | 2 3/8 API Reg | 5.5 | 1000 | 65 | 20 | 4148301555 |
| 89 | 2 3/8 API Reg | 5.5 | 1500 | 65 | 25 | 4148301556 |
| 89 | 2 3/8 API Reg | 5.5 | 2000 | 65 | 30 | 4148301557 |
| 89 | 2 3/8 API Reg | 5.5 | 3000 | 65 | 40 | 4148301558 |
| 89 | 2 3/8 API Reg | 6.5 | 1000 | 65 | 21 | 4148301559 |
| 89 | 2 3/8 API Reg | 6.5 | 1500 | 65 | 26 | 4148301560 |
| 89 | 2 3/8 API Reg | 6.5 | 2000 | 65 | 32 | 4148301561 |
| 89 | 2 3/8 API Reg | 6.5 | 3000 | 65 | 45 | 4148301562 |
| 89 | 2 3/8 API Reg | 6.5 | 4500 | 65 | 65 | 4148301563 |
| 89 | 2 3/8 API Reg | 6.5 | 6000 | 65 | 84 | 4148301564 |
