| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | R25 Shank End Rod |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customized |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Material: | Alloy Steel | Shank: | H22x108mm, H25x159mm |
|---|---|---|---|
| Type: | Threaded Drilling Tools | Length: | 610mm-3600mm |
| Usage: | Small Hole Drilling | Color: | Black Or Customised |
| Bit Dia.: | 22mm (7/8"), 25mm (4 1/4") | Advantage: | OEM |
| Processing Type: | Forging | Thread Connection: | R25 |
| High Light: | h22x108mm threaded drill rod,h25x159mm threaded drill rod,r25 threaded drill rod |
||
Description

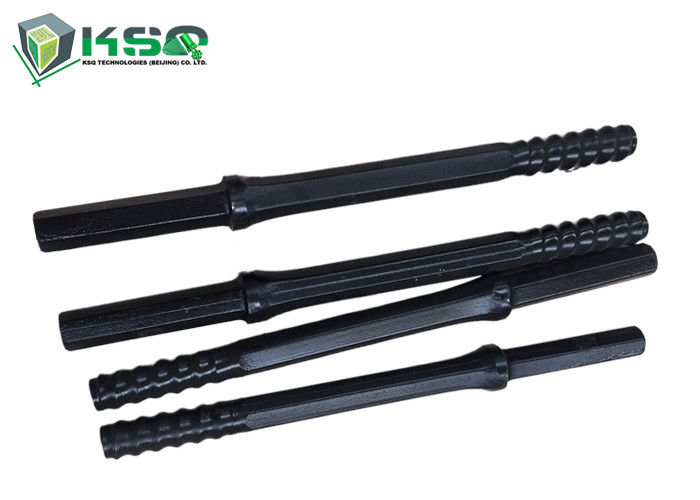

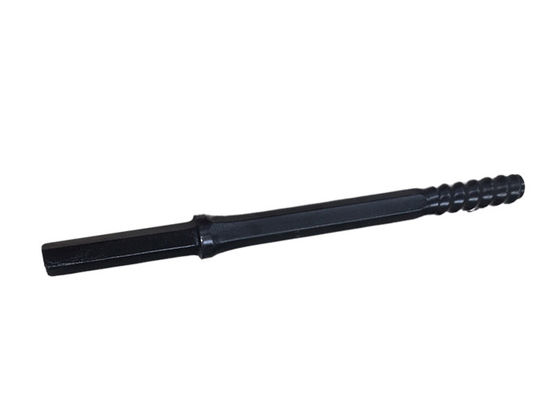

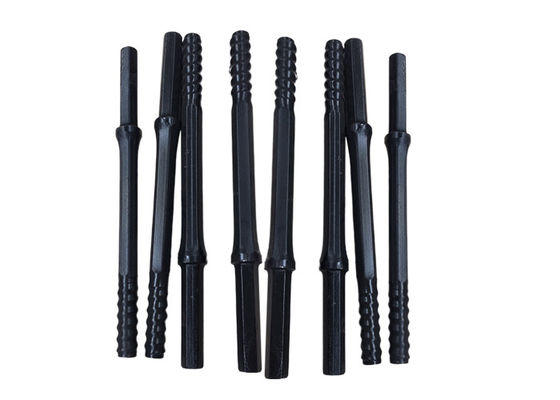

Shank end rod with R25 thread system, are connced to R25 couple, extention rod or speed rod.
Features:
1. High-grade raw material
2. Manufactured from high-grade steel and processed using state-of-the-art CNC machinery
and heat treatment
3. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
Application:
• Underground Mining
• Drifting and Tunneling
• Benching and long hole drilling
• Quarrying
• On drilling machines equipped with automatic rod changer
Specifications:
| Shank End Rod | Length | Diameter | Weight | Product Code | ||
| mm | ft | mm | inch | kg | ||
| R25 Shank End Rod Hex 22 Shank 22mm x 108mm (7/8" x 4 1/4") |
610 | 2 | 22 | 7/8 | 2.6 | DRH22-R25-610 |
| 760 | 2 1/2 | 22 | 7/8 | 2.9 | DRH22-R25-760 | |
| 1000 | 3 2/7 | 22 | 7/8 | 3.7 | DRH22-R25-1000 | |
| 1220 | 4 | 22 | 7/8 | 4.4 | DRH22-R25-1220 | |
| 1830 | 6 | 22 | 7/8 | 6.3 | DRH22-R25-1830 | |
| 2435 | 8 | 22 | 7/8 | 8.1 | DRH22-R25-2435 | |
| 3200 | 10 1/2 | 22 | 7/8 | 10.6 | DRH22-R25-3200 | |
| 3600 | 11 4/5 | 22 | 7/8 | 12 | DRH22-R25-3600 | |
| R25 Shank End Rod Hex 25 Shank 25mm x 159mm (1" x 6 1/4") |
2700 | 8 6/7 | 25 | 1 | 11.3 | DRH25-R25-2700 |
| 3200 | 10 1/2 | 25 | 1 | 13.7 | DRH22-R25-3200 |
|
