Product Name: | Thread Coupling Sleeve | Material: | Alloy Steel |
---|---|---|---|
Application: | Drifting & Tunneling, Benching And Long Hole Drilling | Diameter: | 35mm-77mm (or 1 3/8 Inch To 3 Inch) |
Length: | 150mm-235mm (or 6 Inch To 9 1/4 Inch) | Processing: | CNC Milling And Heat Treatment |
Bridge Type: | Full-bridge, Semi-bridge Etc. | Thread Type: | R25,R28,R32,R38,T38,T45,T51 |
High Light: | t45 Drill Coupling,210mm Drill Coupling,R25 dth drilling tools |

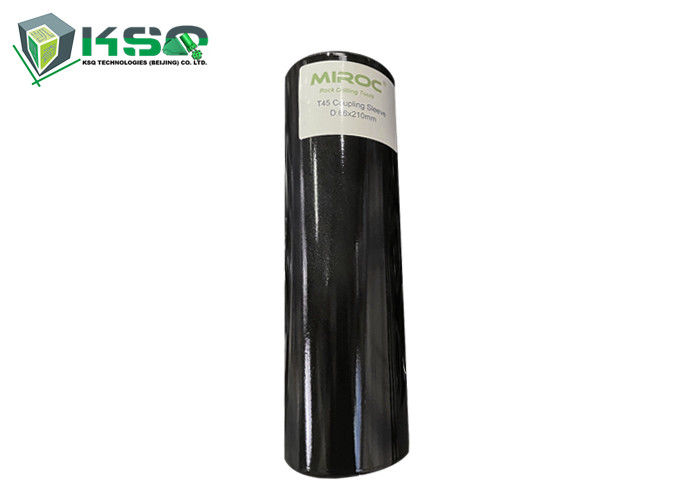

T45 210mm For Connecting And Extension Drill Rod Threaded Coupling Sleeve
Product Description

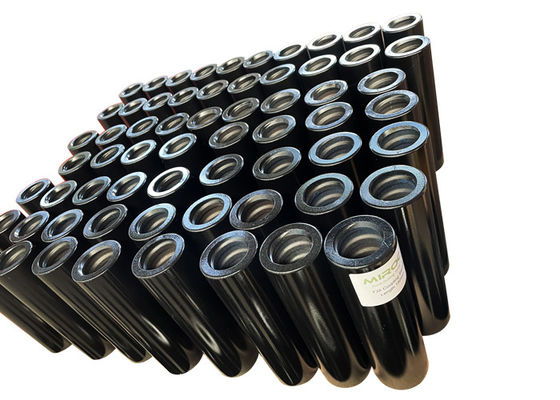

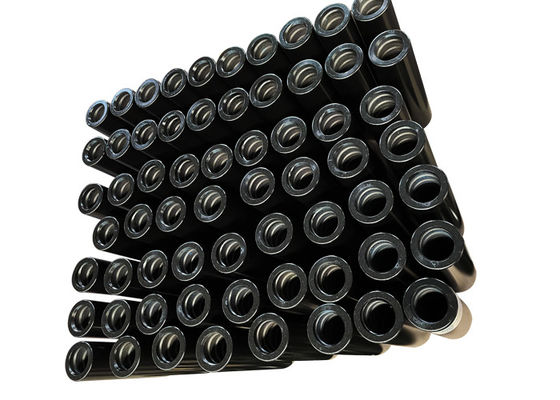

Coupling sleeve for Extension Drill Rod connection.High quality of alloy steels and CNC machining guarantee our reliable and consistent quality control of coupling sleeves.when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod, ensuring the ends touch for efficient energy transmission.
Coupling sleeves are also used to connect several rods to each other in the same way. Coupling sleeves have a middle stop to prevent over-threading on to the drill rod.
Thread: R25, R28, R32, R38, T38, T45, T51,
Function: Coupling sleeve, Adapter Coupling
Type: Full-bridge, Semi-bridge
We can make length and thread according to your request!
Specification for Couple Sleeve
Coupling Sleeve | ||||||
Length | Diameter | Thread | Weight | Part Number | ||
mm | inch | mm | inch | kg | ||
R25 Coupling Sleeve | ||||||
150 | 6 | 35 | 1 3/8 | R25 | 0.7 | 4148300429 |
155 | 6 1/9 | 44 | 1 3/4 | R25 | 1 | 4148300430 |
160 | 6 2/7 | 38 | 1 1/2 | R25 | 1.3 | 4148300431 |
R28 Coupling Sleeve | ||||||
150 | 6 | 40 | 1 4/7 | R28 | 0.9 | 4148300483 |
170 | 6 2/3 | 55 | 2 1/6 | R28 | 2 | 4148300484 |
R32 Coupling Sleeve | ||||||
150 | 6 | 44 | 1 3/4 | R32 | 1 | 4148300646 |
160 | 6 2/7 | 44 | 1 3/4 | R32 | 1.1 | 4148300647 |
R38 Coupling Sleeve | ||||||
170 | 6 2/3 | 55 | 2 1/6 | R38 | 1.9 | 4148300703 |
190 | 7 1/2 | 55 | 2 1/6 | R38 | 2.1 | 4148300704 |
T38 Coupling Sleeve | ||||||
190 | 7 1/2 | 55 | 2 1/6 | T38 | 2.1 | 4148300803 |
T45 Coupling Sleeve | ||||||
210 | 8 1/4 | 63 | 2 1/2 | T45 | 3 | 4148300881 |
210 | 8 1/4 | 66 | 2 3/5 | T45 | 3.3 | 4148300882 |
T51 Coupling Sleeve | ||||||
225 | 8 6/7 | 71 | 2 4/5 | T51 | 4.6 | 4148300961 |
225 | 8 6/7 | 76 | 3 | T51 | 4.8 | 4148300962 |
235 | 9 1/4 | 72 | 2 5/6 | T51 | 4.7 | 4148300963 |
235 | 9 1/4 | 77 | 3 | T51 | 4.9 | 4148300964 |
