| Certification: | ISO |

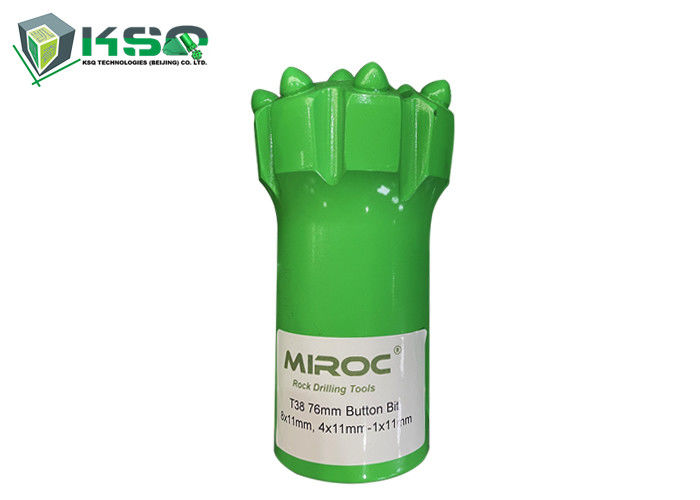

| Model Number: | T38 76mm Thread Button Bit |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Nogotiation |
| Packaging Details: | customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Place Of Origin: | China | Brand Name: | MIROC |
|---|---|---|---|
| Type: | Drill Button Bit | Processing Type: | Forging |
| Diameter: | 64mm, 76mm, 89mm | Material: | Tungsten Carbide |
| Button Type: | Spherical, Ballistic | Corlor: | Customised |
| Button Numbers: | 9, 10, 11,12,13 | Face Type: | Flat Face , Drop Center |
| Flushing Hole: | With 2 Or 3 Holes | Product Name: | T38 Button Drill Bit |
| High Light: | t38 button bit,64mm button bit,89mm button bit |
||

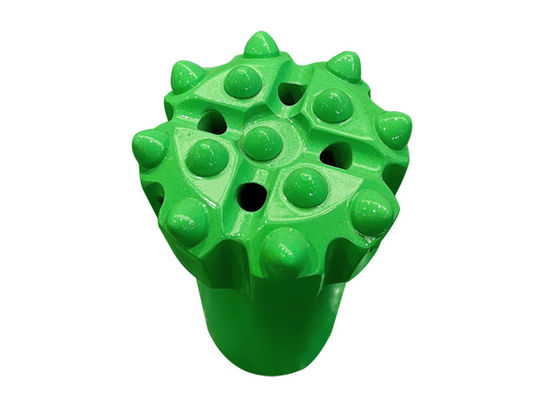

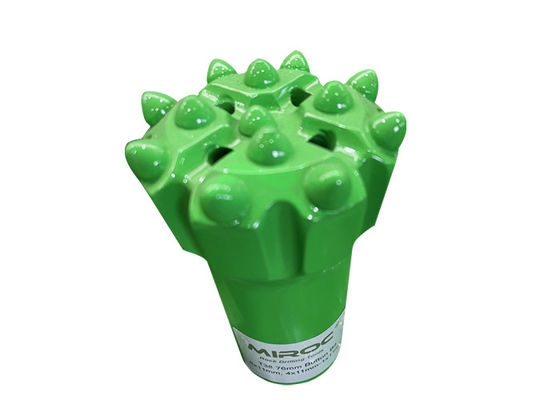

Product Description
KSQ With the top quality of alloy steels and the best carbides made in China, use best tungsten carbide, featuring good wear-resistance and toughness. We use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons dropping out of the holes.
Specification:
| T38 Threaded Button Bit | Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Product Code | |||
| mm | inch | Front | Gauge | Front | Side | kg | ||
| Button Bit Spherical Buttons, B9XX |
64 | 2 1/2 | 3x11 | 6x12 | 3 | - | 1.8 | B964-T38-S |
| Button Bit, Drop Center Spherical Buttons, B10XX |
64 | 2 1/2 | 3x10, 1x10 | 6x11 | 3 | - | 1.7 | B1064-T38-S |
| 70 | 2 3/4 | 3x10, 1x10 | 6x12 | 3 | - | 1.8 | B1070-T38-S | |
| 76 | 3 | 3x11, 1x11 | 6x12 | 3 | 1 | 2.6 | B1076-T38-S | |
| Button Bit, Drop Center Spherical Buttons, B11XX |
89 | 3 1/2 | 3x11, 2x11 | 6x13 | 3 | 1 | 3.3 | B1189-T38-S |
| Button Bit Spherical Buttons, B12XX |
64 | 2 1/2 | 4x10 | 8x10 | 2 | - | 1.6 | B1264-T38-S |
| 70 | 2 3/4 | 4x11 | 8x11 | 2 | - | 1.9 | B1270-T38-S | |
| 76 | 3 | 4x11 | 8x11 | 2 | - | 2.4 | B1276-T38-S | |
| 89 | 3 1/2 | 4x13 | 8x13 | 2 | - | 3.3 | B1289-T38-S | |
| Button Bit Spherical Buttons, B13XX |
76 | 3 | 5x11 | 8x13 | 2 | 1 | 2.4 | B1376-T38-S-1 |
| 89 | 3 1/2 | 5x13 | 8x13 | 2 | - | 3.3 | B1389-T38-S-1 | |
| Button Bit, Drop Center Spherical Buttons, B13XX |
70 | 2 3/4 | 4x10, 1x10 | 8x11 | 4 | - | 1.9 | B1370-T38-S |
| 76 | 3 | 4x11, 1x11 | 8x12 | 4 | - | 2.6 | B1376-T38-S-2 | |
| 76 | 3 | 4x11, 1x11 | 8x11 | 4 | - | 2.6 | B1376-T38-S-3 | |
| 89 | 3 1/2 | 4x11, 1x11 | 8x13 | 4 | - | 3.3 | B1389-T38-S-2 | |
| 89 | 3 1/2 | 4x13, 1x13 | 8x13 | 4 | - | 3.3 | B1389-T38-S-3 | |
| Button Bit Spherical Buttons, B14XX |
89 | 3 1/2 | 6x11 | 8x12 | 2 | - | 3.3 | B1489-T38-S |
| Button Bit Ballistic Buttons, B9XX |
64 | 2 1/2 | 3x11 | 6x12 | 3 | - | 1.8 | B964-T38-B |
| Button Bit, Drop Center Ballistic Buttons, B10XX |
64 | 2 1/2 | 3x10, 1x10 | 6x11 | 3 | - | 1.7 | B1064-T38-B |
| 76 | 3 | 3x11, 1x11 | 6x12 | 3 | 1 | 2.6 | B1076-T38-B | |
| Button Bit, Drop Center Ballistic Buttons, B11XX |
89 | 3 1/2 | 3x11, 2x11 | 6x13 | 3 | 1 | 3.3 | B1189-T38-B |
| Button Bit Ballistic Buttons, B12XX |
64 | 2 1/2 | 4x10 | 8x10 | 2 | - | 1.6 | B1264-T38-B |
| 70 | 2 3/4 | 4x11 | 8x11 | 2 | - | 1.9 | B1270-T38-B | |
| 76 | 3 | 4x11 | 8x11 | 2 | - | 2.4 | B1276-T38-B | |
| Button Bit Ballistic Buttons, B13XX |
76 | 3 | 5x11 | 8x13 | 2 | 1 | 2.4 | B1376-T38-B-1 |
| 89 | 3 1/2 | 5x13 | 8x13 | 2 | - | 3.3 | B1389-T38-B-1 | |
| Button Bit, Drop Center Ballistic Buttons, B13XX |
70 | 2 3/4 | 4x10, 1x10 | 8x11 | 4 | - | 1.9 | B1370-T38-B |
| 76 | 3 | 4x11, 1x11 | 8x12 | 4 | - | 2.6 | B1376-T38-B-2 | |
| 76 | 3 | 4x11, 1x11 | 8x11 | 4 | - | 2.6 | B1376-T38-B-3 | |
| 89 | 3 1/2 | 4x11, 1x11 | 8x13 | 4 | - | 3.3 | B1389-T38-B-2 | |
| 89 | 3 1/2 | 4x13, 1x13 | 8x13 | 4 | - | 3.3 | B1389-T38-B-3 | |
| Button Bit Ballistic Buttons, B14XX |
89 | 3 1/2 | 6x11 | 8x12 | 2 | - | 3.3 | B1489-T38-B |
