| Certification: | ISO |

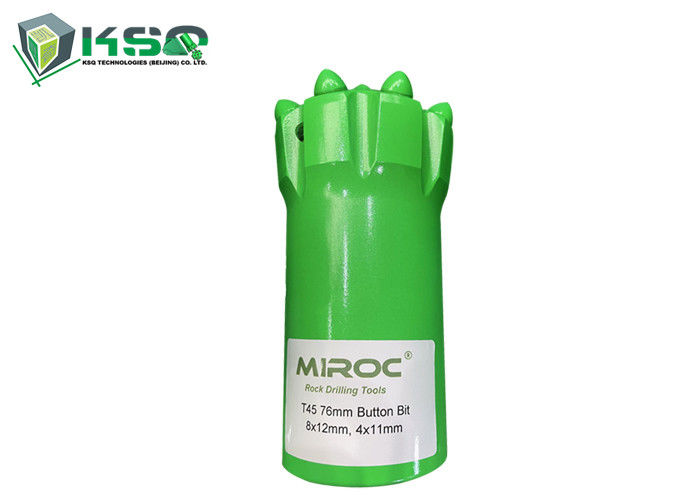

| Model Number: | T45 76mm Thread Button Bit |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Nogotiation |
| Packaging Details: | customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Place Of Origin: | China | Brand Name: | MIROC |
|---|---|---|---|
| Type: | Rock Bit | Processing Type: | Forging |
| Diameter: | 70mm, 76mm, 89mm,102mm | Material: | Tungsten Carbide And Steel |
| Button Type: | Spherical, Ballistic, Conical Buttons | Corlor: | Green, Yellow, Orange, Black Or Customized |
| Button Numbers: | 10 To 14 | Face Type: | Flat Face, Drop Center, Convex, Concave |
| Flushing Hole: | 2, 3, 4, 5 | Product Name: | T45 Button Bit |
| High Light: | t45 button drill bit,70mm button drill bit,102mm button drill bit |
||

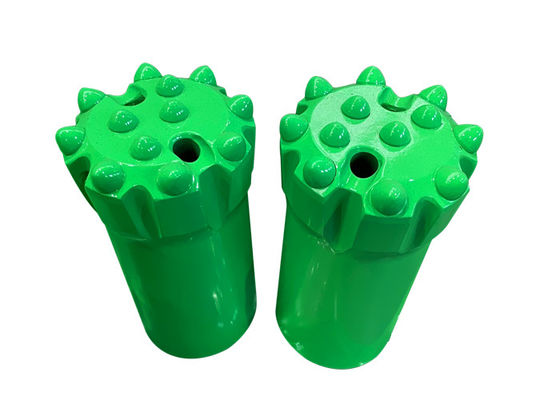

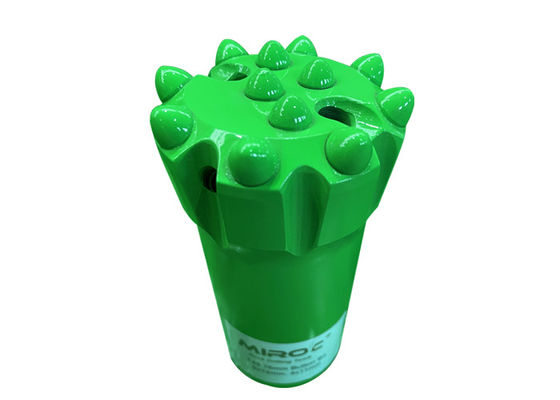

Product Description
T45 button bits are widely used in Bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer Drilling.With the top quality of alloy steels and the best carbides, we produce all Top Hammer Drilling Tools by hot press technology and multiple heat-treated process to extend the product life for maximum wear and performance in the toughest of drilling conditions.
Specification:
| T45 Threaded Button Bit | Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Product Code | |||
| mm | inch | Front | Gauge | Front | Side | kg | ||
| Button Bit, Drop Center Spherical Buttons, B10XX |
70 | 2 3/4 | 3x11,1x19 | 6x11 | 3 | - | 2.2 | B1070-T45-S |
| 76 | 3 | 3x11,1x11 | 6x13 | 3 | - | 2.4 | B1076-T45-S | |
| Button Bit, Drop Center Spherical Buttons, B11XX |
89 | 3 1/2 | 3x11, 2x11 | 6x13 | 3 | 1 | 4.1 | B1189-T45-S |
| 102 | 4 | 3x13, 2x13 | 6x14 | 3 | 1 | 4.5 | B11102-T45-S | |
| Button Bit Spherical Buttons, B12XX |
70 | 2 3/4 | 4x11 | 8x11 | 2 | - | 2.3 | B1270-T45-S |
| 76 | 3 | 4x11 | 8x11 | 2 | - | 2.6 | B1276-T45-S | |
| 89 | 3 1/2 | 4x13 | 8x13 | 2 | - | 4.6 | B1289-T45-S | |
| Button Bit, Drop Center Spherical Buttons, B13XX |
70 | 2 3/4 | 4x10, 1x10 | 8x11 | 4 | - | 2.2 | B1370-T45-S |
| 76 | 3 | 4x11, 1x11 | 8x12 | 4 | - | 2.6 | B1376-T45-S | |
| 89 | 3 1/2 | 4x11, 1x11 | 8x12 | 4 | - | 4.6 | B1389-T45-S-1 | |
| 89 | 3 1/2 | 4x13, 1x13 | 8x13 | 4 | - | 4.6 | B1389-T45-S-2 | |
| 102 | 4 | 4x13, 1x13 | 8x14 | 4 | - | 4.5 | B13102-T45-S | |
| Button Bit Spherical Buttons, B14XX |
89 | 3 1/2 | 6x11 | 8x12 | 2 | - | 4.6 | B1489-T45-S |
| 102 | 4 | 6x13 | 8x16 | 2 | 1 | 5 | B14102-T45-S-1 | |
| Button Bit, Drop Center Spherical Buttons, B14XX |
102 | 4 | 4x13, 2x13 | 8x13 | 4 | 1 | 4.5 | B14102-T45-S-2 |
| Button Bit, Drop Center Ballistic Buttons, B10XX |
70 | 2 3/4 | 3x11, 1x19 | 6x11 | 3 | - | 2.2 | B1070-T45-B |
| 76 | 3 | 3x11, 1x11 | 6x13 | 3 | 1 | 2.4 | B1076-T45-B | |
| Button Bit, Drop Center Ballistic Buttons, B11XX |
89 | 3 1/2 | 3x11, 2x11 | 6x13 | 3 | 1 | 4.1 | B1189-T45-B |
| Button Bit Ballistic Buttons, B12XX |
76 | 3 | 4x11 | 8x11 | 2 | - | 2.6 | B1276-T45-B |
| 89 | 3 1/2 | 4x13 | 8x13 | 2 | - | 4.6 | B1289-T45-B | |
| Button Bit Ballistic Buttons, B13XX |
76 | 3 | 5x11 | 8x12 | 2 | 1 | 2.6 | B1376-T45-B-1 |
| Button Bit, Drop Center Ballistic Buttons, B13XX |
70 | 2 3/4 | 4x10, 1x10 | 8x11 | 4 | - | 2.2 | B1370-T45-B |
| 76 | 3 | 4x11, 1x11 | 8x11 | 4 | - | 2.6 | B1376-T45-B-2 | |
| 76 | 3 | 4x11, 1x11 | 8x12 | 4 | - | 2.6 | B1376-T45-B-3 | |
| 89 | 3 1/2 | 4x11, 1x11 | 8x12 | 4 | - | 4.6 | B1389-T45-B-1 | |
| 89 | 3 1/2 | 4x13, 1x13 | 8x13 | 4 | - | 4.6 | B1389-T45-B-2 | |
| Button Bit Ballistic Buttons, B14XX |
89 | 3 1/2 | 6x11 | 8x12 | 2 | - | 4.6 | B1489-T45-B |
