Name: Ql50-140mm 5 Inch High Pressure Dth Drill Bits For Water Well Drilling
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: QL50
Price: 817.00 USD
Availability: InStock

Home Products DTH Drill Bits

Ql50-140mm 5 Inch High Pressure Dth Drill Bits For Water Well Drilling

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	QL50

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Standard export packing
Delivery Time:	15-20 days
Supply Ability:	5000 pcs per month

Contact Now

Detailed Product Description

Material:	Carbon Steel	Application:	Water Well Drilling
Buttons:	Spherical, Ballistic	Shank:	QL50
Face Type:	Flat, Concave, Covex	Product Name:	High Pressure DTH Drill Bit
Advantage:	High Wear Resistant Cemented Carbide	Processig Type:	Forging
Diameter:	130mm To 152mm	Packing:	Wooden Cace Or As Requrements
Highlight:	ql50 , ql50 dth drill bits , 5 inch dth drill bits

Description

Our products are compatible with most of the products manufactured by , Atlas Copco, etc. DTH drill bits are widely used in mining, tunneling, quarrying, construction and civil engineering project.

QL50-5"

Shank Length: 240mm

Number of Splines: 12

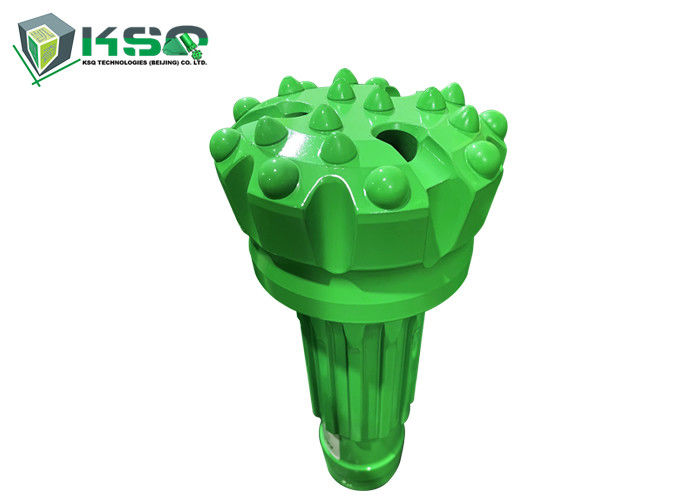

Ql50-140mm 5 Inch High Pressure Dth Drill Bits For Water Well Drilling 0

Specifications

Item	Bit Dia.		Buttons (mm)		Flushing Holes	Weight	Part Number
Item	mm	inch	Front	Gauge	Flushing Holes	(kg)	Part Number
QL50 Spherical Concave Face	130	5 1/8	4x14, 3x14	8x16	2	14.5	4148301347
	133	5 1/4	4x14, 3x14	8x16	2	14.5	4148301348
	140	5 1/2	4x14, 4x14	8x16	2	15.5	4148301349
	146	5 3/4	4x14, 4x14	8x16	2	15.6	4148301350
	152	6	4x16, 4x16	8x18	2	16.5	4148301351
QL50 Ballistic Convex Face	130	5 1/8	3x14, 4x14	9x16	3	14.5	4148301352
	133	5 1/4	3x14, 4x14	9x16	3	14.5	4148301353
	140	5 1/2	3x16, 4x16	9x16	3	15.5	4148301354
	146	5 3/4	3x16, 4x16	9x16	3	15.6	4148301355
	152	6	3x16, 5x16	9x18	3	16.5	4148301356
QL50 Spherical Flat Face	130	5 1/8	7x14	8x16	2	14.5	4148301357
	133	5 1/4	7x14	8x16	2	14.5	4148301358
	140	5 1/2	7x14	7x18	2	15.5	4148301359
	140	5 1/2	8x14	9x16	3	15.5	4148301360
	146	5 3/4	8x14	9x16	3	15.6	4148301361
	152	6	8x16	9x18	3	16.5	4148301362

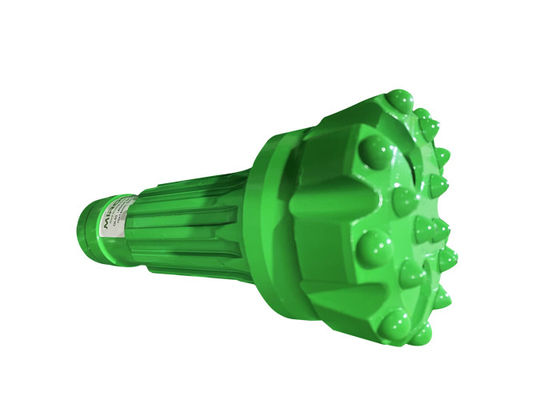

Ql50-140mm 5 Inch High Pressure Dth Drill Bits For Water Well Drilling 1

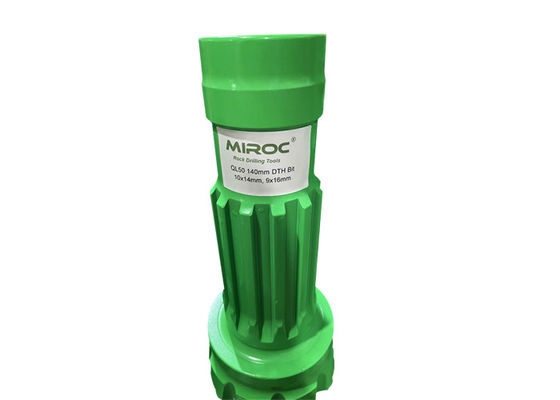

Ql50-140mm 5 Inch High Pressure Dth Drill Bits For Water Well Drilling 2
