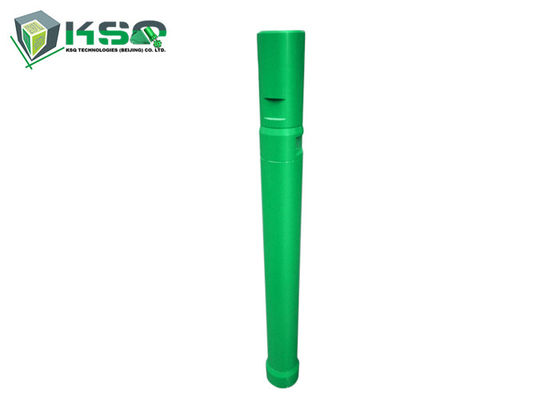

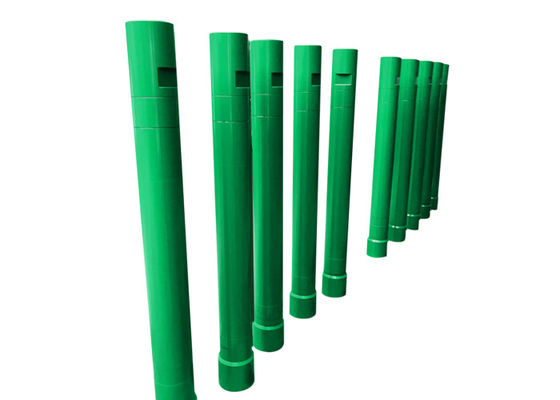

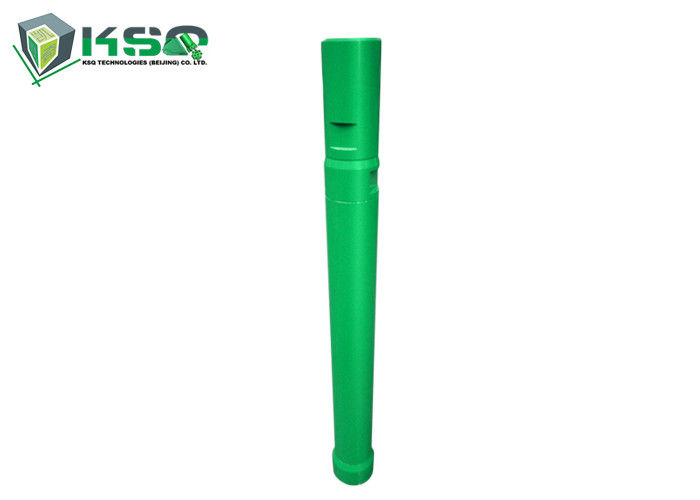

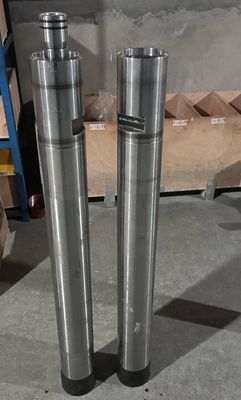

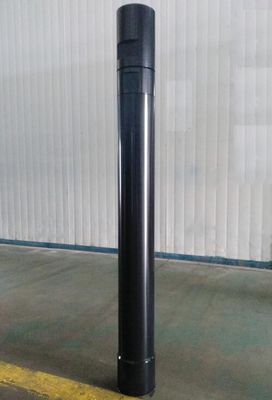

Dual Wall Drilling 3" And 3.5" Remet 3.5 RC Hammer Collect Dry Sample

Dual Wall Drilling 3" And 3.5" Remet 3.5 RC Hammer Collect Dry Sample

RC series reverse circulation DTH Hammer is the latest developed product of our company. It is mainly used for deep exploration drilling and ore grade control.

It has the following characteristics:
1. Based on previous experience of ordinary hammers, combined with the features of reverse circulation hammer, optimized internal structure and ideal energy transfer, thus ensuring the series of hammers drilling with fast, smooth and continuous sampling.

2. The internal structure is very simple with components of high rigidity, thus ensuring long life and easy maintenance of the hammer.

3. The collection tube adopts an integrative design and can be replaced without disassembling the hammer. With carburizing treatment, it has good abrasive resistance.

4. Equipped with bits designed with patent. Simply by replacing the drill bit, the same hammer can drill holes of different sizes ensuring that the sample is not contaminated.

5. In difficult conditions such as loose soil, hard rock and plenty of water exists, sampling can be done well.

Reverse Circulation Hammers​ Specification:

3.5" RC Hammer	Item Description	Weight(kg)	Part Number
	A Top sub Assy Remet 3"
	1 Top sub	6.13	3.5-R3-01
	2 O Ring of Adaptor Tube x2	0.02	3.5-R3-02
	3 Adaptor Tube	1.49	3.5-R3-03
	B Top sub Assy Remet 3.5"
	1 Circlip of top sub	0.03	3.5-R3.5-01
	2 O Ring of Adaptor Tube x3	0.02	3.5-R3.5-02
	3 Adaptor Tube	1.35	3.5-R3.5-03
	4 Top sub	5.90	3.5-R3.5-04
	Parts List
	5 O Ring of Sample Tube x3	0.02	3.5-R3.5-05
	6 Sample Tube	3.30	3.5-R3.5-06
	7 O Ring of Sample Tube x3	0.02	3.5-R3.5-07
	8 Circlip of top sub	0.02	3.5-R3.5-08
	9 Distributor Nozzle	0.03	3.5-R3.5-09
	10 Top sub	0.30	3.5-R3.5-10
	11 Plunger	5.90	3.5-R3.5--11
	12 Y Ring of Plunger x1	0.30	3.5-R3.5--12
	13 Spring	0.02	3.5-R3.5--13
	14 Compressoin buffer	0.05	3.5-R3.5--14
	15 Mount Sample Tube	0.28	3.5-R3.5--15
	16 Inner Cylinder	0.87	3.5-R3.5--16
	17 Piston	1.20	3.5-R3.5--17
	18 Piston case	8.20	3.5-R3.5--18
	19 Bush drive sub	11.25	3.5-R3.5--19
	20 O Ring of Bit retaining ring X1	1.45	3.5-R3.5--20
	21 Bit retaining ring	0.01	3.5-R3.5--21
	22 Shroud	0.15	3.5-R3.5--22
	23 Drive sub	1.10	3.5-R3.5--23
	24 Drill bit	2.80	3.5-R3.5--24

3.5 RC Hammer Technical Parameters

Applications

1. Mine and quarry
2. Road construction for the drilling and blasting work
3. Water well drilling
4. Slope protection
