Place of Origin: | CHINA |
Brand Name: | MIROC |
Certification: | API ISO |
Model Number: | 76mm DTH Drilling Pipe |
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | Bundle and Wooden Box |
Delivery Time: | 10- 25 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20000pcs per month |
Name: | DTH Drill Rod | Diameter: | 76mm |
---|---|---|---|
Application: | Water Well And Blasting | Length: | 1.5m 2m 3m 4.5m 6m |
Thread: | API 2 3/8" | Advantage: | Long Life High Quality |
High Light: | 76mm dth drill rod,API 2 3/8 dth drill rod,water well blasting dth drill rod |

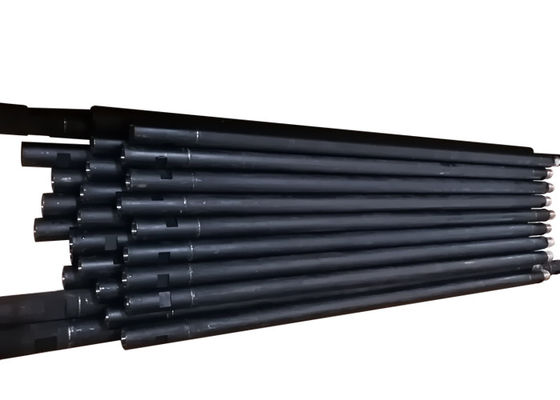

API 76mm 2 3/8 Water Well Drill Drilling Pipe DTH Drill Rod
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
DTH drilling enables drillers to reach hole depths that are double of what top hammer drilling can do. This is possible with the use of DTH Pipes and DTH Subs.
• High grade steel used on thread area and main drill pipe body
• Automated welding process used in joining the thread area and main drill pipe body
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specification of DTH Drill pipe
Part Number | Product Brief Description | OD(mm) | OD(inch) | Thread | Thickness (mm) |
4148301544 | DTHP76-1000, DTH Drill Pipe API Reg Thread | 76 | 3 | 2 3/8" API Reg | 5.5 |
4148301545 | DTHP76-1500, DTH Drill Pipe API Reg Thread | 76 | 3 | 2 3/8" API Reg | 5.5 |
4148301546 | DTHP76-2000, DTH Drill Pipe API Reg Thread | 76 | 3 | 2 3/8" API Reg | 5.5 |
4148301547 | DTHP76-3000, DTH Drill Pipe API Reg Thread | 76 | 3 | 2 3/8" API Reg | 5.5 |
4148301548 | DTHP76-1000, DTH Drill Pipe API Reg Thread | 76 | 3 | 2 3/8" API Reg | 5.5 |
4148301549 | DTHP76-1500, DTH Drill Pipe API Reg Thread | 76 | 3 | 2 3/8" API Reg | 5.5 |
4148301550 | DTHP76-2000, DTH Drill Pipe API Reg Thread | 76 | 3 | 2 3/8" API Reg | 5.5 |
4148301551 | DTHP76-3000, DTH Drill Pipe API Reg Thread | 76 | 3 | 2 3/8" API Reg | 5.5 |
4148301552 | DTHP76-3000, DTH Drill Pipe API Reg Thread | 76 | 3 | 2 3/8" API Reg | 6.5 |
4148301553 | DTHP76-4500, DTH Drill Pipe API Reg Thread | 76 | 3 | 2 3/8" API Reg | 6.5 |
4148301554 | DTHP76-6000, DTH Drill Pipe API Reg Thread | 76 | 3 | 2 3/8" API Reg | 6.5 |
4148301555 | DTHP89-1000, DTH Drill Pipe API Reg Thread | 89 | 3 1/2 | 2 3/8" API Reg | 5.5 |
4148301556 | DTHP89-1500, DTH Drill Pipe API Reg Thread | 89 | 3 1/2 | 2 3/8" API Reg | 5.5 |
4148301557 | DTHP89-2000, DTH Drill Pipe API Reg Thread | 89 | 3 1/2 | 2 3/8" API Reg | 5.5 |
4148301558 | DTHP89-3000, DTH Drill Pipe API Reg Thread | 89 | 3 1/2 | 2 3/8" API Reg | 5.5 |
4148301559 | DTHP89-1000, DTH Drill Pipe API Reg Thread | 89 | 3 1/2 | 2 3/8" API Reg | 6.5 |
4148301560 | DTHP89-1500, DTH Drill Pipe API Reg Thread | 89 | 3 1/2 | 2 3/8" API Reg | 6.5 |
4148301561 | DTHP89-2000, DTH Drill Pipe API Reg Thread | 89 | 3 1/2 | 2 3/8" API Reg | 6.5 |
4148301562 | DTHP89-3000, DTH Drill Pipe API Reg Thread | 89 | 3 1/2 | 2 3/8" API Reg | 6.5 |
4148301563 | DTHP89-4500, DTH Drill Pipe API Reg Thread | 89 | 3 1/2 | 2 3/8" API Reg | 6.5 |
4148301564 | DTHP89-6000, DTH Drill Pipe API Reg Thread | 89 | 3 1/2 | 2 3/8" API Reg |
6.5 |
