Place of Origin: | China |
Brand Name: | MIROC DTH Drilling Tools |
Certification: | API |
Model Number: | Reverse Circulation DTH hammer |
Minimum Order Quantity: | 1 Piece Reverse Circulation DTH hammer |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden Box |
Delivery Time: | 10-15 Days |
Supply Ability: | 20000 pieces per month |
Product Name: | RE542 RC Hammer | Series: | Series DTH Hammer |
---|---|---|---|
Size: | 113mm - 130mm | Type: | RC Hammer |
Use: | Tunneling, Mining,Quarrying,Water Well | Color: | Green, Black, Orange, Blue, Golden Etc. |
High Light: | Deep Exploration Drilling rc hammer,Deep Exploration Drilling hammer rc,5" rc hammer |
Hole Range 113mm-130mm Higher Production 5“ RC Hammer RE542
Introduction of R.C. Drilling
RC series reverse circulation DTH Hammer is the latest developed product of our company. It is mainly used for deep exploration drilling and ore grade control.
The use and the advantages of the R.C. DTH Hammer
I) No Contamination
The R.C. System collects sample through the recovery holes in the face of the drill bit immediately as the cuttings or sample is formed. The drilled sample does not have to travel the length of the hammer where contamination and loss of sample takes place.
2) Higher Production
In broken and fractured ground conditions, the R.C.will often out perform the conventional hammer in terms of penetration rates.
3) Dry Sample
Even in certain water bearing strata, it is still possible to collect a dry sample because the cuttings (sample) are collected as they are formed through the face of the drill
4) Higher Sample Recovery
Because the sample is collected through the face of e drill bit there is no loss of sample when drilling through broken or fractured ground. And since the bit matched to the chuck size, there is very little bypass of sample and recovery rates of up to 98% are generally achievable.
Reverse Circulation Hammers Specification:
5" RC Hammer Diagram | Item Description | Weight(kg) | Part Number |
A Top sub Assy Remet 3.5" | |||
1 Circlip of top sub | 0.03 | 542-R3.5-01 | |
2 O Ring of Adaptor Screen x3 | 0.02 | 542-R3.5-02 | |
3 Adaptor Screen | 1.70 | 542-R3.5-03 | |
4 O Ring of Adaptor Screen x2 | 0.02 | 542-R3.5-04 | |
5 Top sub | 8.60 | 542-R3.5-05 | |
B Top sub Assy Remet 4" | |||
1 Circlip of top sub | 0.03 | 542-R4-01 | |
2 O Ring of Adaptor Screen x2 | 0.02 | 542-R4-02 | |
3 Adaptor Screen | 2.45 | 542-R4-03 | |
4 O Ring of Adaptor Screen x2 | 0.02 | 542-R4-04 | |
5 Top sub | 7.55 | 542-R4-05 | |
C Top sub Assy Metzke 4" | |||
1 Circlip of top sub | 0.03 | 542-M4-01 | |
2 Adaptor Screen | 2.45 | 542-M4-02 | |
3 O Ring of Adaptor Screen x2 | 0.02 | 542-M4-03 | |
4 Top sub | 7.10 | 542-M4-04 | |
Parts List | |||
6 Sample Tube | 3.50 | 542--05 | |
7 O Ring of Sample Tube x4 | 0.02 | 542--06 | |
8 Circlip of Inner Cylinder | 0.04 | 542--07 | |
9 Air Screen | 0.02 | 542--08 | |
10 Distributor Nozzle | 0.56 | 542--09 | |
11 O Ring of Distributor Nozzle x1 | 0.02 | 542--10 | |
12 Plunger | 0.45 | 542--11 | |
13 Y Ring of Plunger x1 | 0.20 | 542--12 | |
14 Spring | 0.08 | 542--13 | |
15 Mount Sample Tube | 0.86 | 542--14 | |
16 YRing of Mount Sample Tubex1 | 7.26 | 542--15 | |
17 Inner Cylinder | 0.02 | 542--16 | |
18 O Ring of Inner Cylinderx1 | 0.02 | 542--17 | |
19 Piston | 11.64 | 542--18 | |
20 Piston Case | 12.70 | 542--19 | |
21 Bush drive sub | 2.35 | 542--20 | |
22 O Ring of Bush drive subx2 | 0.02 | 542--22 | |
23 Bush drive sub retaining ring | 0.05 | 542--23 | |
24 Bit retaining ring | 0.26 | 542--24 | |
25 O Ring of Bit retaining ring X1 | 0.02 | 542--25 | |
26 Shroud | 2.21 | 542--26 | |
27 Drive sub | 2.97 | 542--27 | |
28 Drill bit | 542--28 |
RE542 RC Hammer Technical Parameters
Length(Without Bit) | Weight(Without Bit) | External Diameter(mm) |
1191mm | 55.4kg | 109.5mm |
Working Pressure | Impact Rate At 17 bar | Speed Recommended |
1.5-3.5 Mpa | 35Hz | 25-40rpm |
Bit Shank | Hole Range | Connection Thread (top sub-drill pipe) |
RE542 | 113mm-130mm |
3.5" /4" Remet 4"Metzke |
Reference Air Consumption(m³/min) | ||
1.7 Mpa | 2.4 Mpa | 3.0 Mpa |
14 m³/min | 19 m³/min | 24 m³/min |
Applications
1. Mine and quarry
2. Road construction for the drilling and blasting work
3. Water well drilling
4. Slope protection
working principle

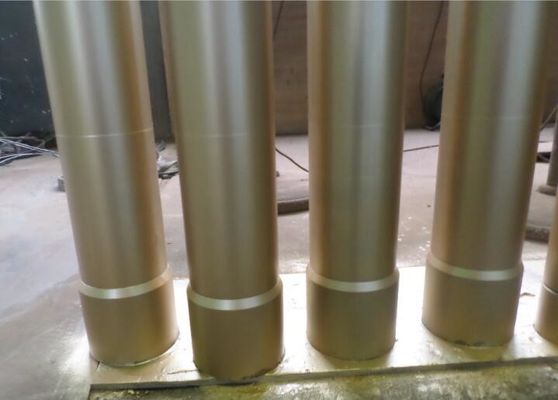

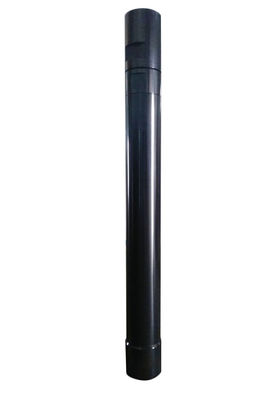

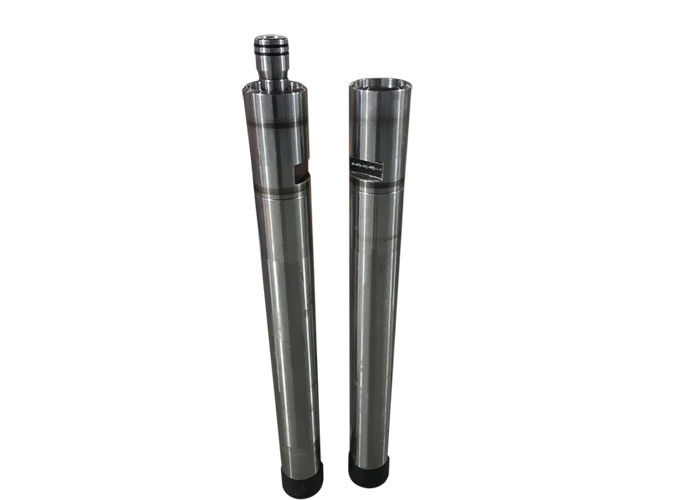

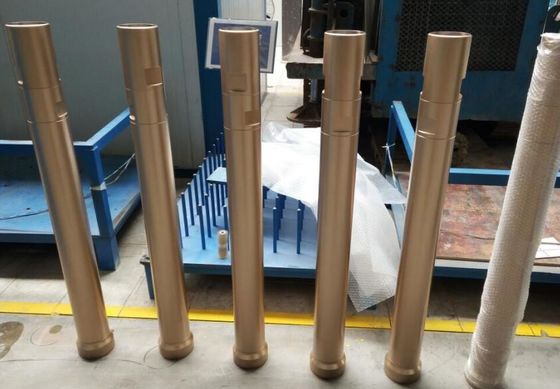

Pictures
