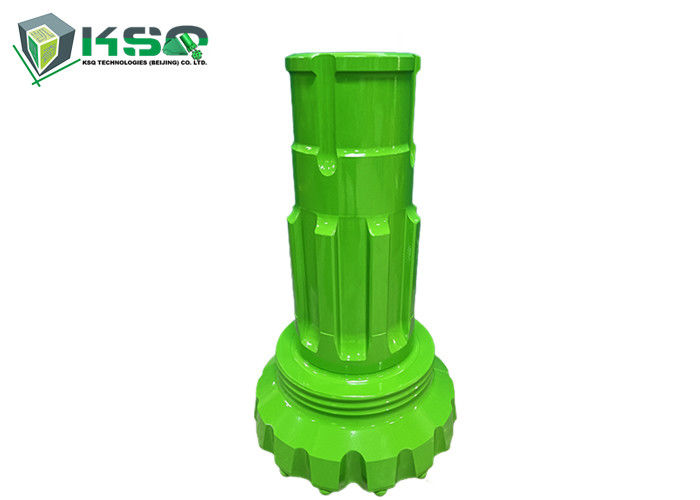

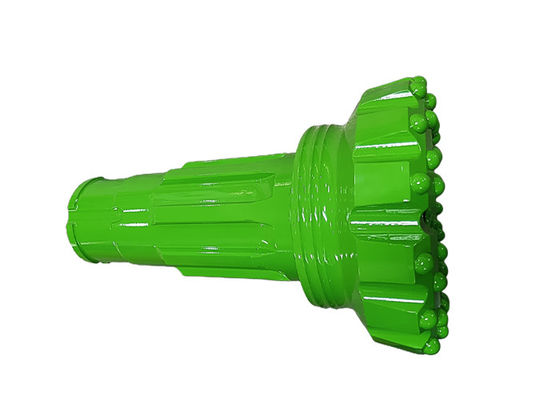

305mm SD10 Dth Drill Bit For 10 Inch High Air Pressure Dth Hammer

305mm SD10 Dth Drill Bit For 10 Inch High Air Pressure Dth Hammer

305mm SD10 Dth Drill Bit For 10 Inch High Air Pressure Dth Hammer
305mm SD10 Dth Drill Bit For 10 Inch High Air Pressure Dth Hammer
305mm SD10 Dth Drill Bit For 10 Inch High Air Pressure Dth Hammer
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: SD10-305mm DTH Drill Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standrad export packaging or customized
Delivery Time: 15-20 days
Supply Ability: 2000pcs per month
Contact Now
Detailed Product Description
Material: Hign Manganese Steel Use: Well Drilling
Model Type: SD10 Face Design: Concave, Convex, Flat
Carbide Design: Dome, Parabolic, Ballistic Processing Type: Forging
Diameter: 254mm To 305mm Shank Type: SD10
High Light:

305mm dth drill bit

,

sd10 dth drill bit

,

10 inch dth hammer bit

SD10 DTH Bit

DTH bit is the tool cutting rocks, and subject to severe stress from the striking piston as well as from the abrasive cuttings passing the bit at high velocity. When selecting the right bit for optimum performance you have to balance penetration against bit life. On occasion you can successfully sacrifice bit life for penetration, remember the rule of thumb that states that a 10% increase in penetration covers at least a 20% loss in bit life.We can design and manufacture according to customer's requirements of the bit diameter, the NO. of air holes, carbide buttons and face shape.

305mm SD10 Dth Drill Bit For 10 Inch High Air Pressure Dth Hammer 0



Specification



Drill Bit Head Dia. No. x Button diameter (mm) Button Angle NO. of Flushing holes Dia.(mm) Weight Part No.
Gauge Buttons Front Buttons
mm inch Flat Face Convex Face Concave Face (kg)
SD10 254 10 12x19mm 12x16mm 8x18mm 6x16mm 38° 2x30mm 82.1 SD10-254CC12
275 10 5/6 12x19mm 12x16mm 8x18mm 8x16mm 38° 2x30mm 86.2 SD10-275CC12
305 12 15x19mm 15x18mm 12x18mm 9x16mm 38° 3x26mm 98.7 SD10-305CC15



305mm SD10 Dth Drill Bit For 10 Inch High Air Pressure Dth Hammer 1
