32mm 12 Degree Tapered Button Bit For Rock Drilling

32mm 12 Degree Tapered Button Bit For Rock Drilling

32mm 12 Degree Tapered Button Bit For Rock Drilling
32mm 12 Degree Tapered Button Bit For Rock Drilling
32mm 12 Degree Tapered Button Bit For Rock Drilling
Product Details:
Place of Origin: Shandong, China
Brand Name: MIROC
Certification: ISO
Model Number: 12 Degree Taper Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiation
Packaging Details: Carton, wooden boxes or customized
Delivery Time: 15-20 days
Supply Ability: 20000 pcs per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide Bit Dia.: 32mm To 70mm
Buttons: 4, 5 , 6 , 7, 8 Buttons Skirt: Short Skirt, Long Skirt
Flushing Holes: 2 Or 3 Taper Degree: 4, 7, 11, 12 Degree
Button Shape: Ballistic, Spherical, Conical Shank Size: Hex 19mm, 22mm, 25mm
Highlight:

32mm tapered button bit

,

12 degree tapered button bit

,

12 degree button bit rock drilling

Product Description



Taper button bit, as a small hole bit, use taper match bit with rod to be used for air leg or hand held jack hammer driller in quarrying and mining. With diameter of 32mm to 65mm, they are widely used in mining and quarrying, with combination of well anti-wear and anti-impact carbide buttons and high performance steel, it features the advantages of higher driving efficiency, long service life, better powder exhausting and easier bit back.

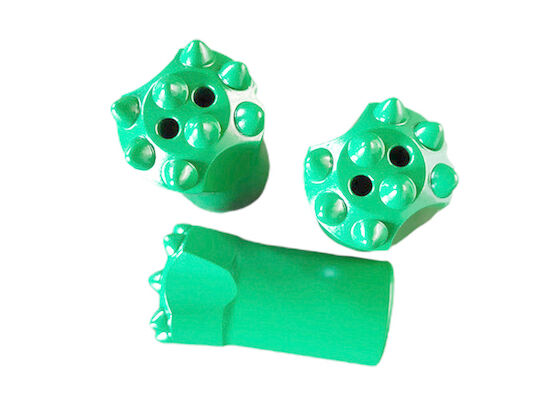

32mm 12 Degree Tapered Button Bit For Rock Drilling 0

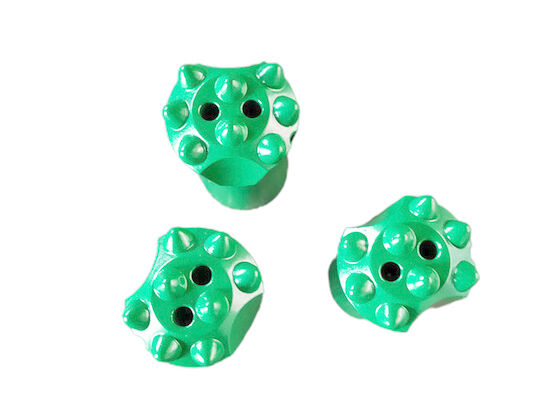

32mm 12 Degree Tapered Button Bit For Rock Drilling 1



Specifications



12° Tapered Button Bit Bit Dia. Buttons and Size (mm) Flushing Hole Weight Product Code
mm inch Front Gauge Front Side kg

Button Bit, Short Skirt
BS4XX		 28 1 1/9 1x7 3x7 1 1 0.2 BS428-12D-22
29 1 1/7 1x7 3x7 1 1 0.21 BS429-12D-22
30 1 1/6 1x7 3x7 1 1 0.22 BS430-12D-22

Button Bit, Short Skirt
BS5XX		 28 1 1/9 2x7 3x7 1 1 0.2 BS528-12D-22
30 1 1/6 2x7 3x7 1 1 0.22 BS530-12D-22

Button Bit, Short Skirt
BS6XX		 30 1 1/6 2x7 4x7 1 1 0.22 BS630-12D-22
35 1 3/8 2x7 4x7 1 1 0.33 BS635-12D-22
38 1 1/2 2x9 4x9 1 1 0.4 BS638-12D-22

Button Bit, Short Skirt
BS7XX		 32 1 1/4 2x7 5x7 2 1 0.24 BS732-12D-22
33 1 2/7 2x7 5x7 1 1 0.25 BS733-12D-22
34 1 1/3 2x7 5x8 1 1 0.29 BS734-12D-22
35 1 3/8 2x7 5x8 2 1 0.33 BS735-12D-22-1
35 1 3/8 2x7 5x9 1 1 0.33 BS735-12D-22-2
36 1 3/7 2x7 5x9 1 1 0.37 BS736-12D-22
37 1 4/9 2x7 5x9 1 1 0.38 BS737-12D-22
38 1 1/2 2x7 5x9 1 1 0.4 BS738-12D-22

Button Bit, Long Skirt
BL7XX		 32 1 1/4 2x7 5x7 1 1 0.3 BL732-12D-22
33 1 2/7 2x7 5x7 1 1 0.31 BL733-12D-22
35 1 3/8 2x7 5x9 1 1 0.38 BL735-12D-22
36 1 3/7 2x7 5x9 1 1 0.39 BL736-12D-22
38 1 1/2 2x7 5x9 1 1 0.41 BL738-12D-22
41 1 5/8 2x7 5x9 1 1 0.42 BL741-12D-22

Button Bit, Long Skirt
BL8XX		 33 1 2/7 2x7 6x7 2 1 0.31 BL833-12D-22
35 1 3/8 2x7 6x7 2 1 0.35 BL835-12D-22

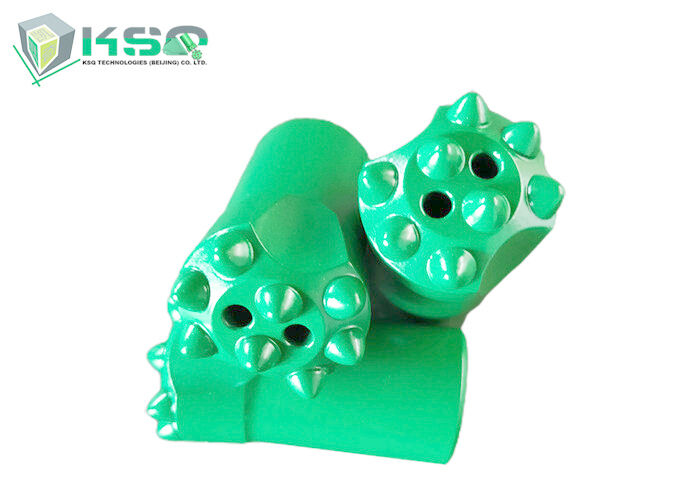

32mm 12 Degree Tapered Button Bit For Rock Drilling 2
