| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | COP1238 Shank Adapter |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Material: | Alloy Steel | Thread: | R25, R32, R38, T38, T45 |
|---|---|---|---|
| Process Type: | Forging | Product Name: | Shank Adapter |
| Length: | 485mm, 500mm, 575mm | Color: | Black Or Customized |
| High Light: | t38 shank adapter,575mm shank adapter,atlas copco rig shank adapter |
||

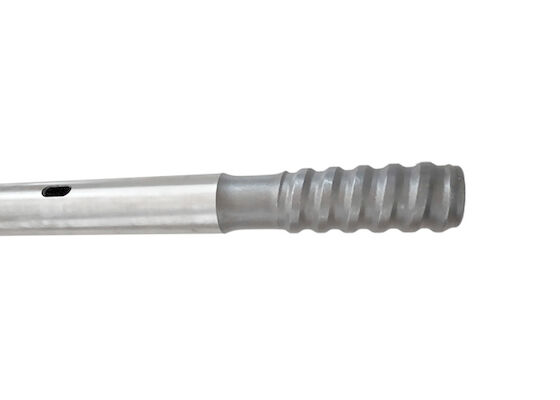

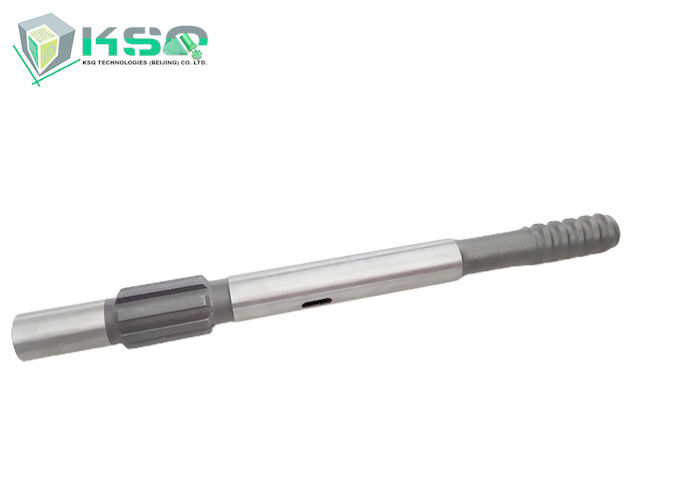

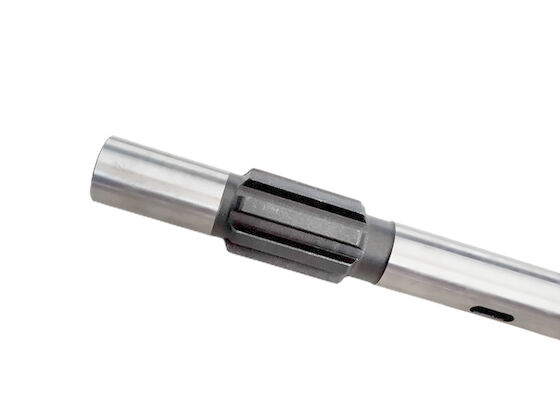

T38 575mm COP1238 Shank Adapter for Atlas Copco rig
The shank adapters are designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Furukawa drifters, Ingersoll-Rand drifters, Montabert drifters, Secoma Hydrastar drifters, Toyo drifters, Tam rock series drifters, Garden Diver series drifters etc.
Male shank adapters are ideal for drifting, tunneling & extension application where high bending stresses are present, Female shank adapters are used when the drilling space is limited and the total feed length is important.
Specification
| Item | Thread | Length | Diameter | Weight | Flushing Tube | Part Number |
| mm | mm | kg | mm | |||
| Atlas Copco COP 1036, COP 1038, COP 1238 Drifting |
R32 (1 1/4") | 485 | 38 | 4 | - | 414832419 |
| R32 (1 1/4") | 485 | 38 | 4 | - | 414832420 | |
| R38 (1 1/2") | 485 | 38 | 4.2 | - | 414832421 | |
| R38 (1 1/2") | 485 | 38 | 4.3 | - | 414832422 | |
| T38 (1 1/2") | 485 | 38 | 4.2 | - | 414832423 | |
| Atlas Copco COP 1036, COP 1038, COP 1238 Bench Drilling |
R32 (1 1/4") | 500 | 38 | 4 | - | 414832424 |
| T38 (1 1/2") | 500 | 38 | 4.4 | - | 414832425 | |
| T45 (1 3/4") | 500 | 45 | 5 | - | 414832426 | |
| Atlas Copco COP 1036, COP 1038, COP 1238 Bench Drilling, Productin Drilling |
R32 (1 1/4") | 575 | 38 | 4.6 | - | 414832427 |
| R38 (1 1/2") | 575 | 38 | 4.7 | - | 414832428 | |
| T38 (1 1/2") | 575 | 38 | 4.9 | - | 414832429 | |
| T45 (1 3/4") | 575 | 45 | 5.8 | - | 414832430 | |
| R32 (1 1/4") | 575 | 45 | 5.2 | - | 414832431 | |
| R38 (1 1/2") | 575 | 45 | 5.4 | - | 414832432 | |
| T38 (1 1/2") | 575 | 45 | 5.4 | - | 414832433 | |
| Atlas Copco COP 1132 Bolting, Drifting |
R32 (1 1/4") | 410 | 35 | 2.4 | - | 414832434 |
| Atlas Copco COP 1132 Longhole drilling |
R32 (1 1/4") | 500 | 35 | 3 | - | 414832435 |
| Atlas Copco COP 1132 Bolting |
R32 (1 1/4") | 280 | 45 | 2.4 | - | 414832436 |
| Atlas Copco COP 1140 Bench Drilling |
R32 (1 1/4") | 410 | 35 | 2.6 | - | 414832437 |
| Atlas Copco COP 1238 Bench Drilling |
R25 (1") | 485 | 38 | 4.2 | - | 414832438 |
| Atlas Copco COP 1240 Bench Drilling |
R32 (1 1/4") | 565 | 52 | 6.4 | - | 414832439 |
| T38 (1 1/2") | 565 | 52 | 6.6 | - | 414832440 | |
| Atlas Copco COP 1240, COP 1640 Bench Drilling |
R32 (1 1/4") | 680 | 52 | 9.6 | - | 414832441 |
