| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | COP 1840 Shank Adapter |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Material: | Alloy Steel | Thread: | T45, T51 |
|---|---|---|---|
| Process Type: | Forging | Product Name: | Shank Adapter |
| Length: | 565mm | Color: | Black Or Customized |
| High Light: | T45 drill shank adapter,565mm drill shank adapter,bench drill shank adapter |
||

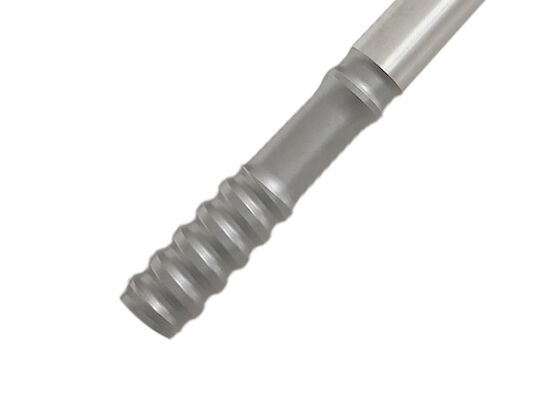

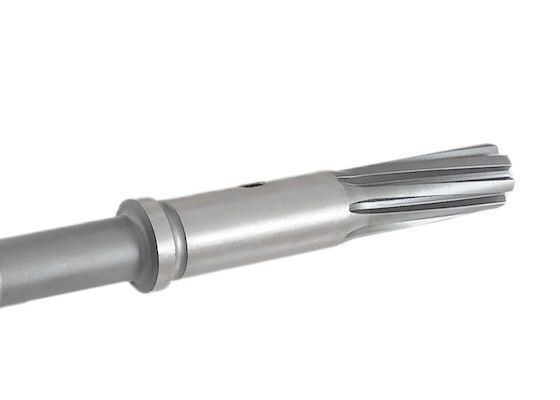

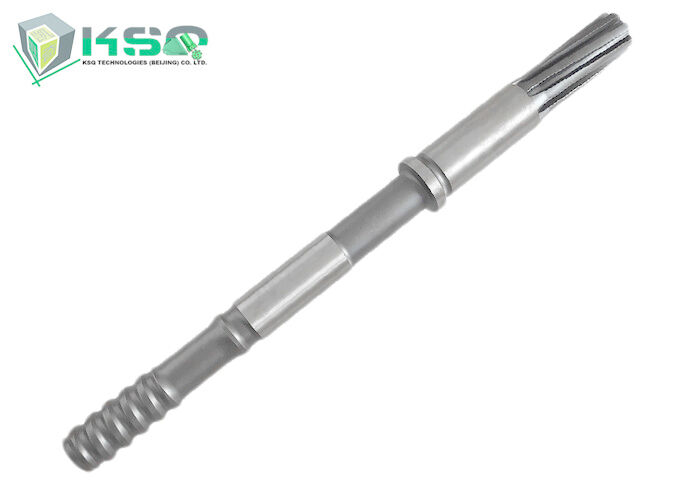

T45 T51 565mm COP1840 Shank Adapter for Bench Drilling
The shank adapters are designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Furukawa drifters, Ingersoll-Rand drifters, Montabert drifters, Secoma Hydrastar drifters, Toyo drifters, Tam rock series drifters, Garden Diver series drifters etc.
Male shank adapters are ideal for drifting, tunneling & extension application where high bending stresses are present, Female shank adapters are used when the drilling space is limited and the total feed length is important.
Specification
| Item | Thread | Length | Diameter | Weight | Flushing Tube | Part Number |
| mm | mm | kg | mm | |||
| Atlas Copco COP 1838MUX/HUX Production Drilling |
T38 (1 1/2") | 730 | 52 | 9.6 | - | 414832476 |
| T45 (1 3/4") | 730 | 52 | 9.9 | - | 414832477 | |
| Atlas Copco COP 1840 Bench Drilling |
T45 (1 3/4") | 565 | 52 | 6.8 | - | 414832478 |
| T51 (2") | 565 | 52 | 7.2 | - | 414832479 | |
| Atlas Copco COP 1840EX Bench Drilling |
T45 (1 3/4") | 770 | 60 | 10.8 | - | 414832480 |
| T51 (2") | 770 | 60 | 10.9 | - | 414832481 | |
| Atlas Copco COP 1850 Bench Drilling |
T51 (2") | 565 | 52 | 7.2 | - | 414832482 |
| Atlas Copco COP 1850EX Bench Drilling |
T51 (2") | 770 | 60 | 10.9 | - | 414832483 |
