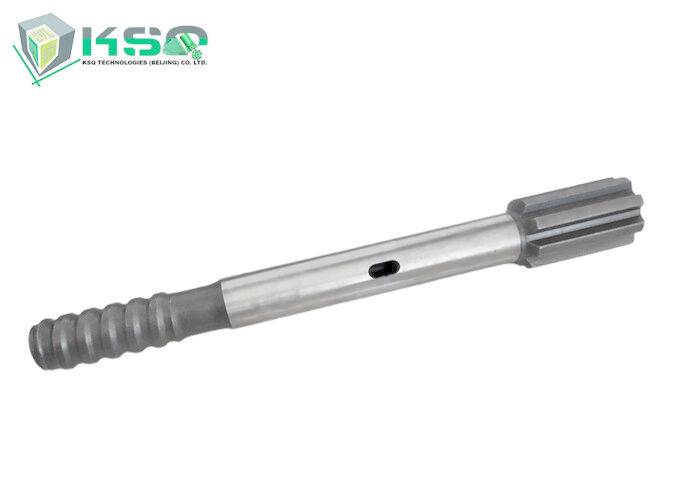

R32 R38 T38 T45 T51 COP1838 Shank Adapter For Atlas Copco Rig

R32 R38 T38 T45 T51 COP1838 Shank Adapter For Atlas Copco Rig

R32 R38 T38 T45 T51 COP1838 Shank Adapter For Atlas Copco Rig
R32 R38 T38 T45 T51 COP1838 Shank Adapter For Atlas Copco Rig
R32 R38 T38 T45 T51 COP1838 Shank Adapter For Atlas Copco Rig
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: COP 1838 Shank Adapter
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standrad export packaging or customised
Delivery Time: 15-20 days
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Material: Alloy Steel Thread: R32 R38 T38 T45 T51
Process Type: Forging Product Name: Shank Adapter
Length: 435mm, 525mm, 585mm,640mm Color: Black Or Customized
High Light:

cop1838 For Atlas Copco Rig

,

COP1838 Shank Adapter

,

t45 Shank Adapter

R32 R38 T38 T45 T51 COP1838 Shank Adapter for Atlas Copco Rig



The shank adapters are designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Furukawa drifters, Ingersoll-Rand drifters, Montabert drifters, Secoma Hydrastar drifters, Toyo drifters, Tam rock series drifters, Garden Diver series drifters etc.



Male shank adapters are ideal for drifting, tunneling & extension application where high bending stresses are present, Female shank adapters are used when the drilling space is limited and the total feed length is important.

R32 R38 T38 T45 T51 COP1838 Shank Adapter For Atlas Copco Rig 0





Specification

Item Thread Length Diameter Weight Flushing Tube Part Number
mm mm kg mm
Atlas Copco COP 1440, COP1838
Bolting - SDA
R32 (1 1/4") 640 52 7.5 - 414832451
Atlas Copco COP 1440, COP 1838
Bolting- SDA, IRIA
R32 (1 1/4") 640 52 9.1 - 414832452
R38 (1 1/2") 640 52 8.9 - 414832453
Atlas Copco COP 1440, COP 1550, COP 1838
Bench Drilling
R32 (1 1/4") 525 52 5.7 - 414832454
T38 (1 1/2") 525 52 5.9 - 414832455
T45 (1 3/4") 525 52 6.1 - 414832456
T51 (2") 525 52 6.5 - 414832457
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
Drifting
R32 (1 1/4") 435 38 3.6 - 414832458
R38 (1 1/2") 435 38 3.9 - 414832459
T38 (1 1/2") 435 38 3.8 - 414832460
Atlas Copco COP 1440, COP1550, COP 1638, COP 1838
Bolting, Drifting
T38 (1 1/2") 435 38 3.9 - 414832461
Atlas Copco COP 1440, COP 1550, COP 1638, COP 1838, COP 2238
Bench Drilling
R32 (1 1/4") 585 38 4.2 - 414832462
R38 (1 1/2") 525 38 4.3 - 414832463
T38 (1 1/2") 525 38 4.3 - 414832464
Atlas Copco COP 1638, COP 1838AW
Drifting
R38 (1 1/2") 455 38 4.1 - 414832465
T38 (1 1/2") 455 38 4.1 - 414832466
Atlas Copco COP 1638, COP 1838AW
Longhole Drilling
R32 (1 1/4") 525 38 4.3 - 414832467
T38 (1 1/2") 525 38 4.5 - 414832468
Atlas Copco COP 1640
Bench Drilling
T38 (1 1/2") 565 52 6.6 - 414832469
Atlas Copco COP 1640EX
Bench Drilling
T38 (1 1/2") 770 60 10.7 - 414832470
Atlas Copco COP 1838EX
Bench Drilling
T38 (1 1/2") 730 60 9.8 - 414832471
T45 (1 3/4") 730 60 10.2 - 414832472
T51 (2") 730 60 10.4 - 414832473
Atlas Copco COP 1838MUX/HUX
Bench Drilling
T38 (1 1/2") 730 52 9.9 - 414832474
T45 (1 3/4") 730 52 9.9 - 414832475
Atlas Copco COP 1838MUX/HUX
Production Drilling
T38 (1 1/2") 730 52 9.6 - 414832476
T45 (1 3/4") 730 52 9.9 - 414832477
