| Place of Origin: | CHINA |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | R32 76mm |
| Packaging Details: | Carton Box or Wooden Box |
|---|---|
| Delivery Time: | 10-25days |
| Supply Ability: | 30000pcs per month |
| Applicable: | Waterwell Drilling, Drifting And Bench Long Hole | Use: | Ore Mining, Undergroud Drilling |
|---|---|---|---|
| Diameter: | 76mm | Button: | Tungsten Carbide |
| Specification: | R32 | Color: | Green |
| High Light: | r32 reamer drill bit,76mm reaming bits,ore mining reaming bits |
||

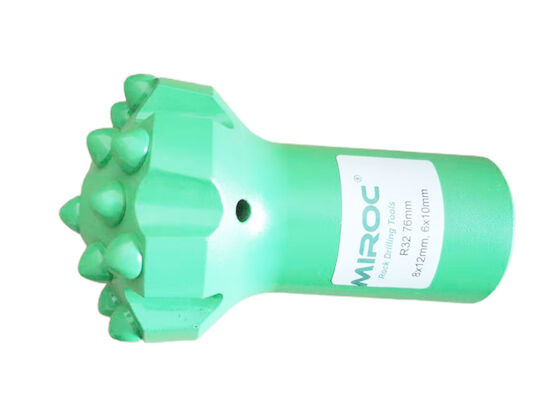

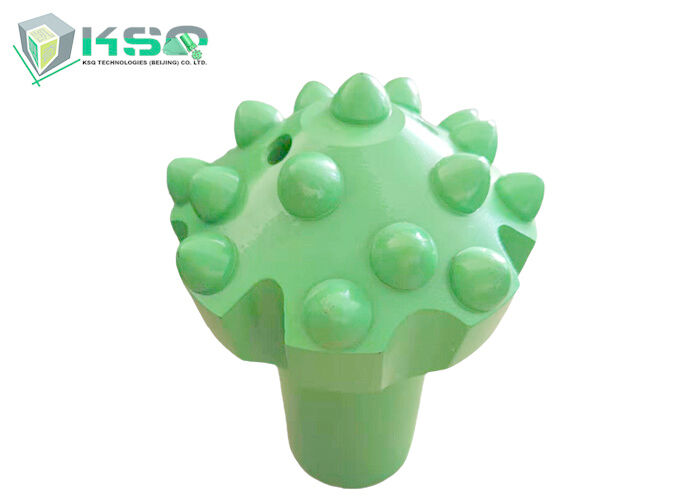

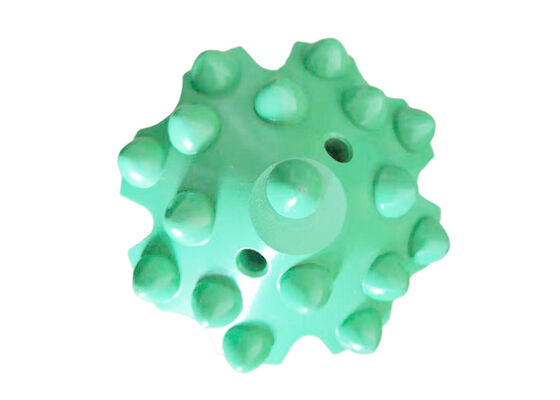

R32 76mm For Drilling Thread Reaming Button Bits
Reaming drilling tools are used when a large diameter is needed to be reamed out after a pilot holes is drilled to a depth. We manufacture pilot reaming drilling tools, domed reaming button bits and adapter reaming button bits. Pilot reaming drilling tools consist of pilot adapters and reaming button bits, however, both domed reaming button bits and and adapter reaming button bits are one-piece designed;
Thread sizes:R25,R28,R32,R38,T38,T45,T51,ST58;
Reaming diameters: 76mm, 89mm, 102mm, 127mm;
These bits are designed for layer drilling, to enlarge pilot holes for long hole blasting of drop raises in underground mines, and constructing service holes.
reaming equipments come with three kinds: reamer bit match with pilot bit, or dome bit or hole opener bit separately.
Specification Overview:
|
|
Bits Diameter |
Connection |
| Reaming Bits | 57 ~ 160mm (2 1/4” ~ 6 1/4”) | 6°, 12° taper degree, or R25, R28, R32 threads |
| Pilot Drill Bits | 36 or 40mm (1 27/64” or 1 37/64”) | with back thread size of R25, R28, R32, and matched central connection as the relative reamer bits |
| Dome Bits | 76 ~ 152mm (3” ~ 6”) | R25, R28, R32, R38, T38, T45, and T51 |
| Hole Opener Bits |
Reamed:76 ~ 165mm (3” ~ 6”) Pilot:26 ~ 102mm (1” ~ 4”) |
R32, R38, T38, T45, and T51 |
