R32 76mm Rock Drilling Thread Button Bit

Product Details:

Place of Origin:	CHINA
Brand Name:	MIROC
Certification:	ISO
Model Number:	R32-76mm

Payment & Shipping Terms:

Packaging Details:	Carton Box or Wooden Box
Delivery Time:	10-25days
Supply Ability:	30000pcs per month

Contact Now

Detailed Product Description

Product Name:	R32-76mm Button Drill Bit	Material:	Tugestun Carbide，Structural Alloy Steel
Application:	Bench Drilling, Production Drilling, Long Hole Drilling	Usage:	Hydraulic Rock Drill Tools
Bit Shape:	Spherical, Ballistic , Mixed Buttons	Body Shape:	Regular Skirt Body
Highlight:	rock drilling thread button bit , 76mm thread button bit , r32 thread button bit

R32 76mm Rock Drilling Thread Button Bit

KSQ threaded buttonbits offers leading strength and penetration rates in the industry for more productivity, excellent straightness and hole clean quality, with max drilling performance for rock drill bits with long life to save up fuel cost rate. R32-76mm threaded drill bits are specially designed for hard stone rock formation.

We will choose to use tungsten carbide of T6,featuring good wear-resistance and toughness.
This type of carbide has already been proved to be the best in world and been competing with those big names worldwide for quite a long time.
Meanwhile,we will choose to use superior steel suitable for hot insertion technology, by which the drilling bits body will hold the carbide buttons so tightly that reduce the risk of buttons’ dropping out of the holes.

In order to better resist the abrasiveness of rock, spherical shape will be a good option for the carbide if high speed is not a necessity.

Specification of button bit:

Thread	Diameter range	Skirt Design	Face Design	Button Design
R22	35 – 45mm	Normal	Flat Face Drop Centre	Hemispherical Ballistic
R25	33 – 57mm	Normal	Flat Face Drop Centre	Hemispherical Ballistic
R28	36 – 51mm	Normal	Flat Face Drop Centre	Hemispherical Ballistic
R32	41 – 89mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
R35	48 – 51mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
R38	64 – 102mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T38	57 – 102mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T45	70 – 127mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T51	76 – 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
T60	89 – 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
ST58	89 – 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
GT60	93 – 140mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical
ST68	102 – 152mm	Normal Retrac	Flat Face Drop Centre	Hemispherical Ballistic Conical

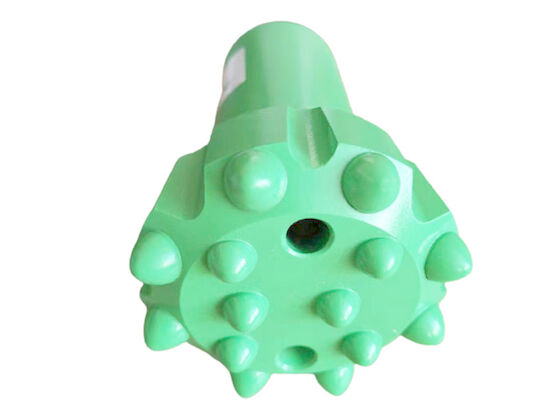

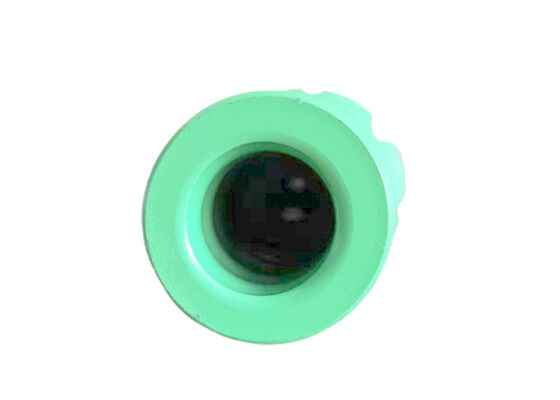

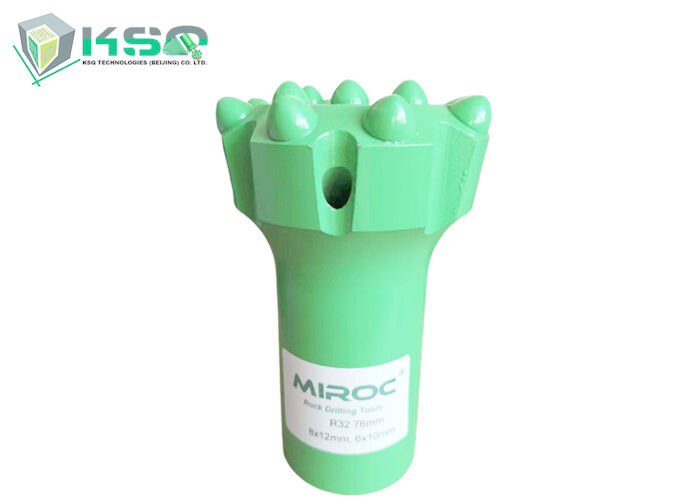

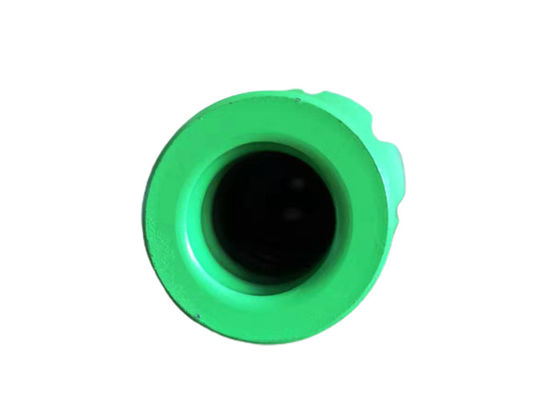

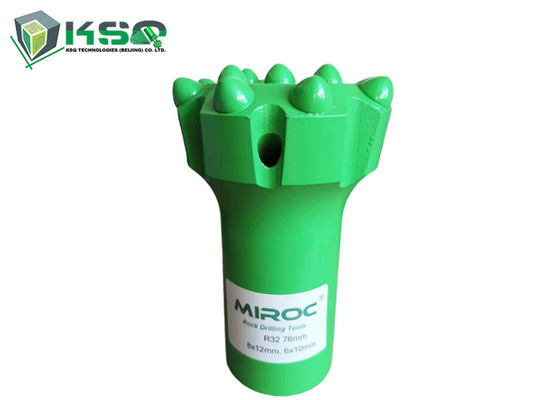

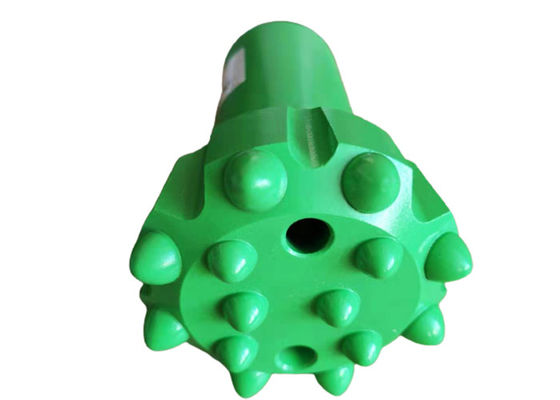

R32 76mm Rock Drilling Thread Button Bit 0

R32 76mm Rock Drilling Thread Button Bit 1
