| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | Anchor Drill Rod R32N |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Standard export packaging or customized |
| Delivery Time: | 10-15 days |
| Supply Ability: | 20000 pcs per month |
| Machine Type: | Self Drilling Tools | Product Type: | Self Drilling Anchor Bolt |
|---|---|---|---|
| Product Name: | Drill Anchor Bar | Material: | Tungsten Carbide And Alloy |
| Application: | Tunneling, Mining, Quarrying And Etc. | Model: | R32N |
| Processing Type: | Forging | Capacity: | High Load Capacity |
| External Diameter: | 32 Mm | Internal Diameter: | 19 Mm |
| Color: | Black Or Customized | ||
| High Light: | r32n self drilling anchor bolt,self drilling anchor bolt r32n,anchor self drilling rock bolts |
||
Self Drilling Anchor Bolt
Drilling Anchor Rod
Description:
Self Drilling Anchor Bolts are a bolting solution for unstable ground conditions such as sand, gravel, silt, and clays, and in soft to medium fractured rock formations.
For projects facing such ground conditions, self-drilling anchors should be considered as the main productivity solution. Self-Drilling Anchors by KSQ Technologies are designed for optimized installation, tailored to the project’s needs.

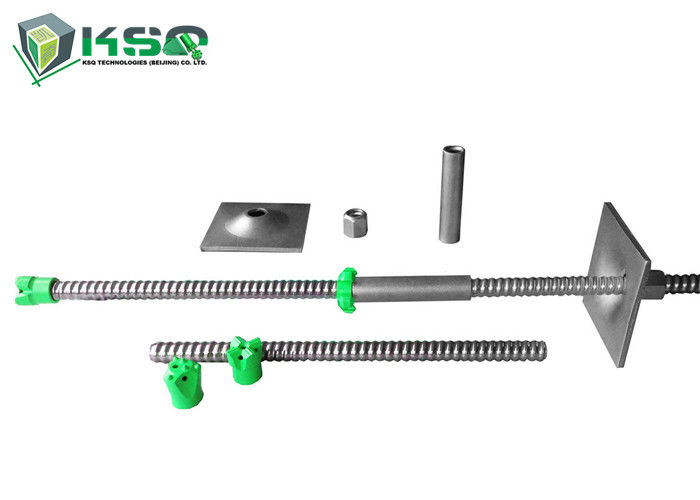

Self drilling anchor bolts consists of:

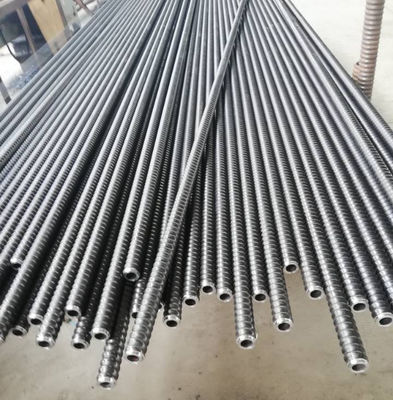

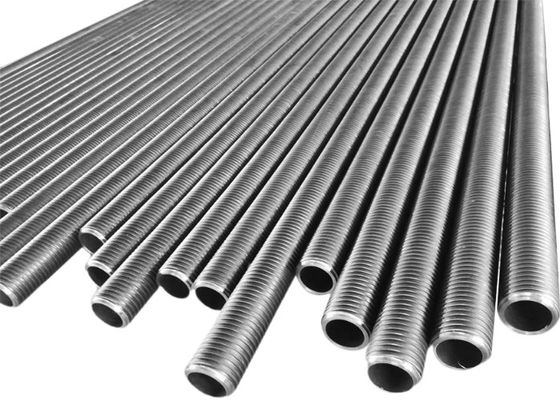

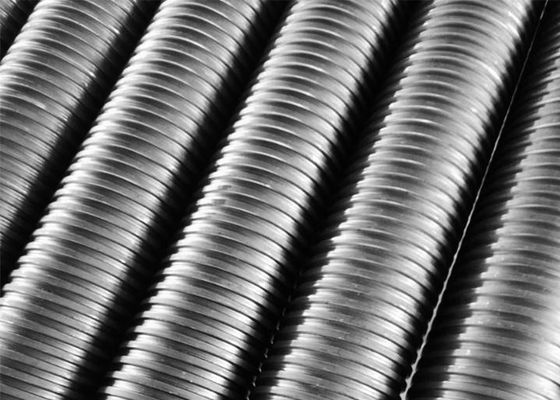

Real photos from our factory:
Specifications of other models of the SELF DRILLING ANCHOR BOLT:
| Models: | R25N | R32N | R32S | R38N | R51L | R51N | T76N | T76S |
| Outside Diameter (mm) | 25 | 32 | 32 | 38 | 51 | 51 | 76 | 76 |
| Internal Diameter (mm) | 14 | 19 | 16 | 19 | 36 | 33 | 52 | 45 |
| Ultimate Load Capacity (kN) | 200 | 280 | 360 | 500 | 550 | 800 | 1600 | 1900 |
| Yield Load Capacity (kN) | 150 | 230 | 280 | 400 | 450 | 630 | 1200 | 1500 |
| Tensile Strength, Rm (N/mm2) | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Yield Strength, Rp0.2 (N/mm2) | 650 | 650 | 650 | 650 | 650 | 650 | 650 | 650 |
| Weight (Kg/m) | 2.3 | 3.2 | 3.6 | 5.5 | 6.5 | 8.0 | 16.0 | 19.7 |
| Steel Grade | EN10083-1 (Alloy Structure Steel) | |||||||
| Compared to carbon steel, alloy structure steel has high anti-corrosion capacity and high mechanical. |
||||||||
FAQ:
Q: What methods of payment are accepted?
A: We work with T/T, L/C, AliBaba, Paypal, West Union, Money Gram.
Q: Can we select the color of the products?
A: Yes, sure. Either you can choose the color among our standards or we can make it exactly according to your requirements.
Q: Can we use our company's logo on your products?
A: Yes, we can offer OEM service for you.
Q: What's your delivery time?
A: It depends on the quantity of your order, but normally the manufacture time is around 10-20 days. And the delivery time depends on the way of shipment (by air/by sea). We always advice you the best way of delivery use the individual approach according to your requirements.
Q: What about the shipment?
A: It's based on the product type and the order quantity. We use carton or wooden box (also we can follow your reqirements) ans we can send it to you by Air or by Sea, either send the products to your Chinese agent.
Q: How to control the quality?
A: We always carefully check all the details before shipment, we are always online with you if any questions. Your satisfaction with our products is one of our main aims. We can send all the prooves if any questions.
Q: Do you offer sample order?
A: Yes, we welcome you to order some samples for testing our quality. For cheching the quality it's need only 1-2 samples to understand our really high quality and be sure in our production.
Q: Do you have after-sale service and warranty period?
A: Yes, of course. We offer our clients after-sale maintenance, technical support and warranty. If any questions or problems, please contact us asap and we will reply you within 24 hours.
Q: Do you have any social network to follow your updates?
A: We have:
Instagram: ksq_tech;
Twitter: @KsqCo - KSQ Technologies (Beijing) Co. Ltd.
Facebook: KSQ Technologies
YouTube: in the search box type KSQ Technologies and you will find some videos of our work.
P.S. Our company has been certificated by Chinese government, and verified by Alibaba Trade Assurance, 100% refund of the Trade Assurance Amount. Alibaba can guarantee all of your payment, you don't need to worry about it, everything is controlled by world corporations. We are fair with our customers and do our best to be reliable company for you!
MIROC® Production:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Coupling Sleeves
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
Company Information:
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
