| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | YH65 Shank Adapter |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Material: | Alloy Steel | Thread: | T38, T45 |
|---|---|---|---|
| Process Type: | Forging | Product Name: | Shank Adapter |
| Length: | 500mm, 700mm | Color: | Black Or Customized |
| High Light: | yh65 drill shank adapter,drill shank adapter yh65,alloy steel drill shank adapter |
||

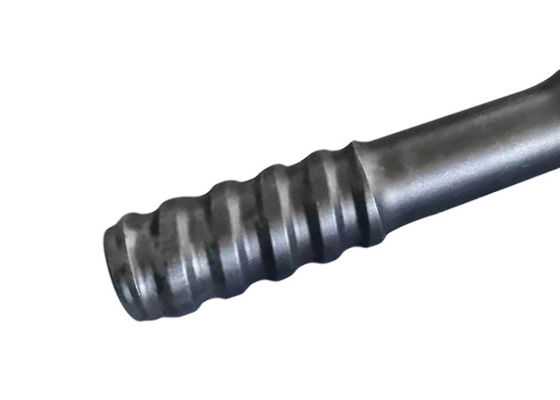

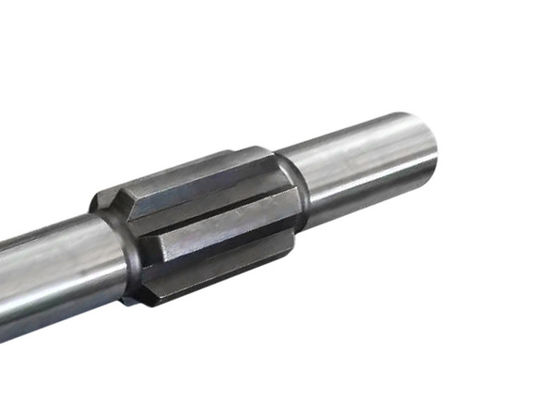

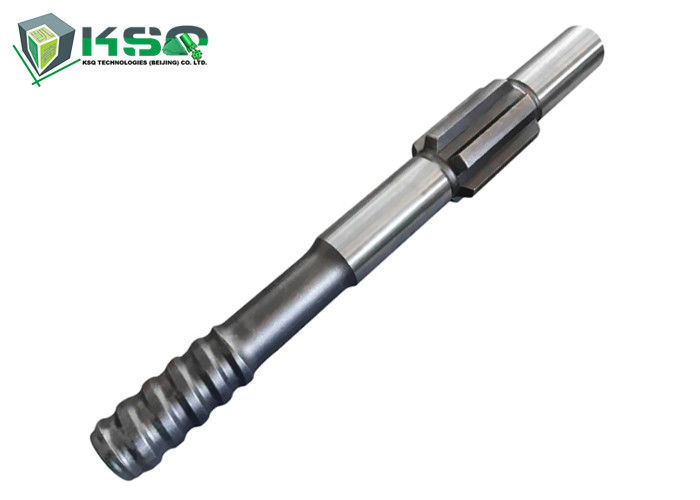

T38 T45 YH65 Alloy Steel Drill Shank Adapter For Ingersoll Rand Bench Drilling
The shank adapters are designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Furukawa drifters, Ingersoll-Rand drifters, Montabert drifters, Secoma Hydrastar drifters, Toyo drifters, Tam rock series drifters, Garden Diver series drifters etc.
Male shank adapters are ideal for drifting, tunneling & extension application where high bending stresses are present, Female shank adapters are used when the drilling space is limited and the total feed length is important.
Specification
| Item | Thread | Length | Diameter | Weight | Flushing Tube | Part Number |
| mm | mm | kg | mm | |||
| Ingersoll Rand YH 65, YH 70 Bench Drilling |
T38 (1 1/2") | 500 | 45 | 5.2 | 19 | 414832563 |
| T45 (1 3/4") | 500 | 45 | 5.2 | 19 | 414832564 | |
| Ingersoll Rand YH 65 RP Bench Drilling |
T38 (1 1/2") | 700 | 45 | 7.8 | 19 | 414832565 |
| T45 (1 3/4") | 700 | 45 | 7.9 | 19 | 414832566 | |
| Ingersoll Rand YH 80A Bench Drilling |
T38 (1 1/2") | 500 | 51 | 5.5 | 19 | 414832567 |
| T45 (1 3/4") | 500 | 51 | 5.7 | 19 | 414832568 | |
| T51 (2") | 500 | 51 | 6.4 | 19 | 414832569 | |
| Ingersoll Rand YH 80A RP Bench Drilling |
T45 (1 3/4") | 700 | 51 | 8.8 | 19 | 414832570 |
| T51 (2") | 700 | 51 | 9.3 | 19 | 414832571 | |
| Ingersoll Rand YH 95 RP, YH 100 RP Bench Drilling |
T51 (2") | 840 | 51 | 11.6 | 23 | 414832572 |
| Ingersoll Rand YH 110VRP, Y 135 RP Bench Drilling |
T51 (2") | 900 | 55 | 14.2 | - | 414832573 |
| Ingersoll Rand YH 110V, YH 135 Bench Drilling |
T45 (1 3/4") | 728 | 55 | 11.4 | - | 414832574 |
| T51 (2") | 728 | 55 | 11.7 | - | 414832575 |
