| Place of Origin: | CHINA |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | T38 76mm |
| Packaging Details: | Carton Box or Wooden Box |
|---|---|
| Delivery Time: | 5-15 Working Days |
| Supply Ability: | 10000000 Pieces per Year |
| Type: | Rock Drill Bit | Manufacturing Process: | Forging |
|---|---|---|---|
| Material: | Tungsten Carbide | Surface Treatment: | Heat Treatment |
| Button Shape: | Spherical / Ballistic | Rock Class: | Soft, Medium And Hard |
| Application: | Rocking | Name: | T38 Button Bit |
| High Light: | T38 button drill bit,76MM button drill bit,T38 76mm drill bit |
||

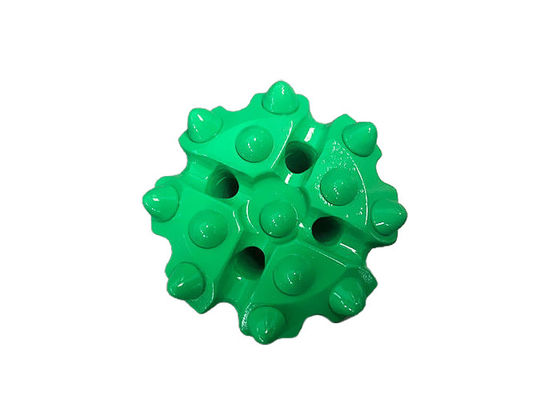

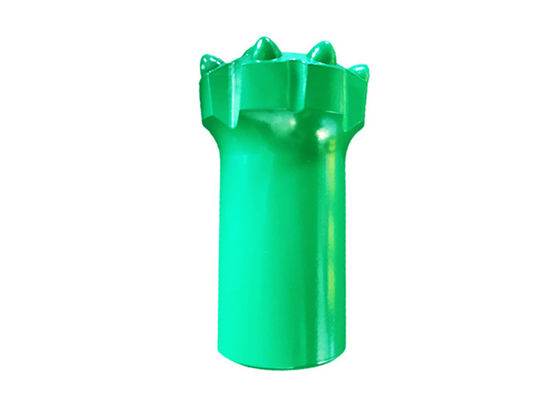

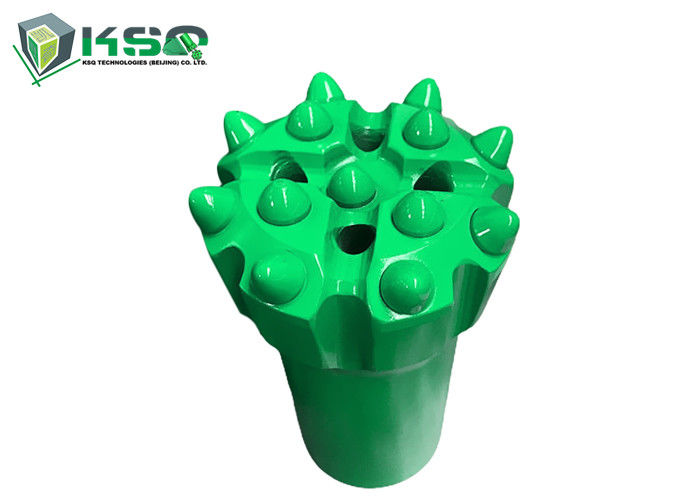

T38 76mm Rock Mining Drill Thread Button Drill Bit
Application
The thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Rock Drill Thread Button Bits is suitable for R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60 rock drill rods use. It have many thread. It's widely used for hard rock(f=8~18) drilling use.
Characteristics
1. Thread connection: R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60
2. Alloy steel:42CrMo
3. Suitable carbide tips:YK05
4. Technology:hot-pressing or welding
Before Official Order, please confirm below informations:
1. Thread Type
2. Standard or Retrac
3. Bit button shape (tip shape)--Spherical or Ballistic
4. Bit face shape--Drop Center, Flat Face, Convex, Concave, etc...
| T38 button bit | ||||||
| Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | |||
| mm | Front | Gauge | Front | Side | kg | |
| 1 | 64 | 3×10, 1×10 | 6×11 | 3 | - | 1.7 |
| 2 | 70 | 3×10, 1×10 | 6×12 | 3 | - | 1.8 |
| 3 | 76 | 3×11, 1×11 | 6×12 | 3 | 1 | 2.6 |
| 4 | 89 | 3×11, 2×11 | 6×13 | 3 | 1 | 3.3 |
FAQ
Q1: What’s your delivery time?
A: Commonly product need 20 days to produce, within 3 days if in stock.
Q2: What’s methods of payments are accepted?
A: We agree T/T ,L/C ,West Union ,One touch ,Money Gram ,Paypal.
Q3: What about the Shipments?
A: Bases on other quantity .We can send it to you by Express ,by Air ,by Sea ,and by Train.Or send the goods to your Chinese agent.
Q4: How to control the quality?
A: We should be checking & testing everyone button bit before shipment.
Q5: Do you agree sample order ?
A: Yes ,we are welcome your sample order to testing our quality.
Q6: Can we select the button bit color?
A: Yes ,we have golden ,green ,black for your choice.
Q7: Can we change to our mark on the button bit?
A: Yes ,we can casting your company mark on the button bit.(Except sample order)
Q8: Do you have after-sale service and warranty service ?
A: Any Quality or quantity problem once confirmed,we will be compensate you the same. Any question or problem we will be reply you within 24 hours.
Q9: Can I trust your company ?
A: Our company has been certificated by Chinese government ,and verified by Ali baba Trade Assurance. 100% refund of the Trade Assurance Amount .Ali baba can guarantee all of you payment .
