| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | CIR76 DTH Drill Hammer |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customized |
| Delivery Time: | 15-20 days |
| Supply Ability: | 2000pcs per month |
| Material: | Carbon Steel | Application: | Energy & Mining, Well Drilling |
|---|---|---|---|
| Diameter: | 76mm | Pressure: | Low Pressure |
| Process Type: | Forging | Packaging: | Carton, Wooden Box, Pallet |
| High Light: | CIR76 down the hole hammer drilling,carbon steel dth hammer drilling,carbon down the hole hammer drilling |
||

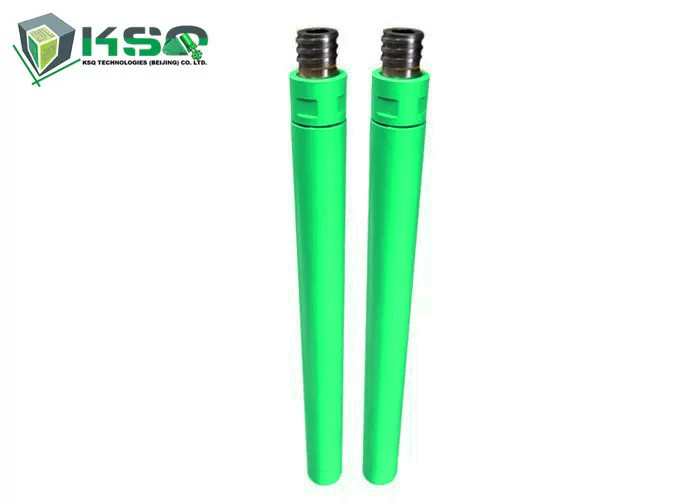

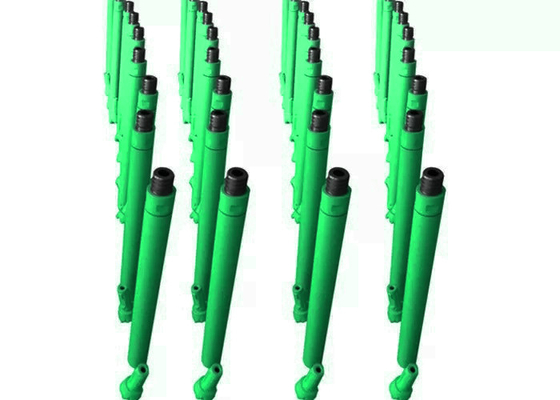

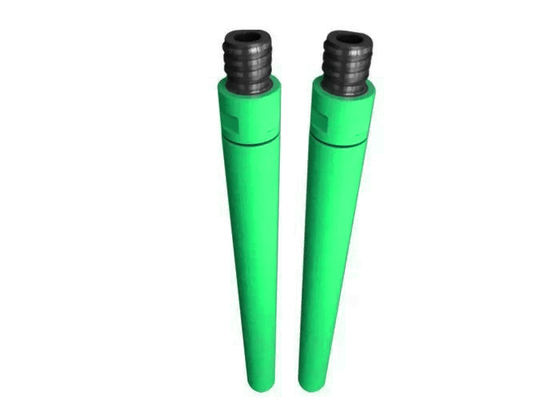

CIR76 Low Air Pressure Carbon Steel Down The Hole Hammer Drilling DTH Hammers
All the products are manufactured as per the international standard and well compatible with the brand of Atlas Copco, Ingersoll-Rand, etc
Main Features
1) DTH hammers series we supply
A) High pressure series
B) Medium pressure series
C) Low pressure series
D) High efficiency high pressure series
E) Reverse circulation series
2)Outside diameters: 61.2~275mm
3)Drilling diameter: 68~508mm
Application
They are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.
Normal Specifications:
|
Item |
76 HAMMER |
90 HAMMER |
110 HAMMER |
130 HAMMER |
|
Hammer Length without bits: |
811MM |
855MM |
871MM |
890MM |
|
Top sub thread: |
F48*10PIN |
F48*10PIN |
API 2 3/8'' REG BOX |
API 2 3/8'' REG BOX |
|
Outside diameter: |
66MM |
80MM |
98MM |
112MM |
|
Weight: |
13.5KG |
22KG |
33KG |
48.5KG |
|
Bit diameter: |
76MM |
90-120MM |
110-150MM |
130-175MM |
|
Working pressure: |
4-10BAR |
5-10BAR |
5-10BAR |
5-10BAR |
|
Air consumption: |
6-10 m³/min |
7-12 m³/min |
7-12 m³/min |
7-12 m³/min |
|
Bit shank: |
CIR76 |
CIR90 |
CIR110 |
CIR110/CIR130 |
