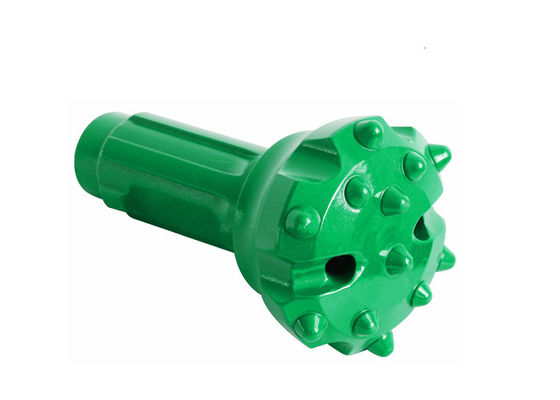

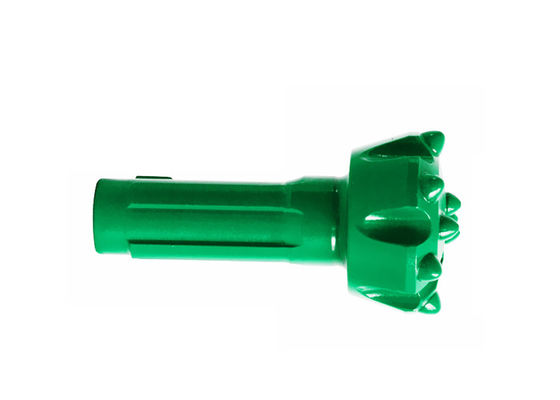

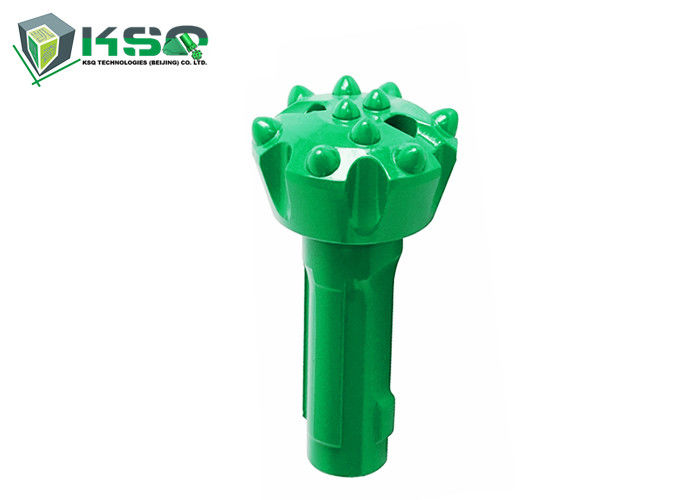

Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits

Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits

Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits
Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits
Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits
Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: J150B 165mm
Payment & Shipping Terms:
Packaging Details: Wooden Case/Plate
Delivery Time: 5-15 Work Days
Supply Ability: 100000pcs per year
Contact Now
Detailed Product Description
Applicable Industries: Construction Works , Energy & Mining, DTH Drilling Tool Material: Carbon Steel
Color: Required OEM: YES
Advantage: High Performance Cost Ratio Size: 165mm
High Light:

165MM Dth Hammer Drill Bits

,

Dth Hammer Drill Bits 165MM

,

Low Air Pressure Dth Hammer Bit

Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits



What is Low air pressure DTH hammer ?

Low air pressure DTH hammer is widely used in geotechnical engineering in a variety of hard, high hardness and other toughness can be poor tough rock, the following characteristics:

1. Low air pressure DTH hammer is a valve-type center exhaust hammer, the discharge of rock powder effect is good, reducing the re-broken rock slag, reducing the wear of the drill, improve the drilling efficiency.

2. Using the latest rock design theory to design the hammer of the internal structure of the size of the hammer to obtain the ideal energy transfer, a single hammer power, drilling faster, lower air consumption.

3. Selection of the highest quality raw materials and the most advanced processing technology, more stable performance, longer life.

4. Easy disassembly, low failure, easy maintenance.



The application of Low air pressure DTH Hammer:

Mining, quarrying, road construction and other projects drilling blasting hole, landslide protection, dam reinforcement, anchoring and other engineering holes, geothermal air conditioning, hydrology, wells and other fields.

J Series low air pressure DTH Bits
Type Diameter (mm) Number of Splines Weight (kg)
J60C 65 4 2.26
J70C 75 4 2.80
J80B 85 4 3.20
J80B 90 4 4.80
J100B 110 4 5.04
J100B 115 4 5.50
J100B 120 4 6.25
J150B 155 4 14.0
J150B 160 4 15.5
J150B 165 4 22.0
J170B 170 4 24.5
J170B 180 4 28.6
J200B 210 4 43.2
J200B 220 4 45.0

Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits 0Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits 1

Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits 2Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits 3Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits 4Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits 5Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits 6Low Air Pressure CIR J150B 165mm DTH Hammer Drill Bits 7
