| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | DTH Drill Pipe |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Wooden case |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000 pieces per month |
| Machinery Type: | DTH Drilling Tools | Product Name: | DTH Drill Pipe |
|---|---|---|---|
| Pipe Diameter: | 114mm | Pipe Length: | 9140mm |
| Wall Thickness: | 8.00mm | Connection Thread: | API Reg 3-1/2" |
| Material: | High Manganese Steel | Processing Type: | Forging |
| Application: | Water Well Drilling, Coal Mining, Ore Mining, Quarrying | OEM Service: | YES |
| Advantages: | High Performance, High Quality, Factory Prices, Long Lifetime, Best Service | ||
| High Light: | 114mm Dth Drill Pipe,Dth Drill Pipe 114mm,Water Well Dth Drill Pipe |
||
DTH DRILL PIPE
BY KSQ TECHNOLOGIES
Description:
Key features of a high quality DTH pipe are durability, accuracy and manageability.
We adopts famous domestic large steel enterprises products of material to produce drill pipe, and heat treatment of materials by using an integrated multi-processing furnace. Professional CNC machining was applied in all of the connection thread processing, all the threads are configurated thread gauge, which are in accordance with international standard.
Internal thickening technology has carried on the tempering process after friction welding, so the processing quality of drill pipe is stable, reliable, use cycle greatly extended. We can process different length, diameter and wall thickness and material of API standard thread rod, we also can design and manufacture drill pipe according to customers' requirements of the material, length, wall thickness and connection thread.
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Specifications:
| NO | Diameter | Length, mm | Wall thickness, mm | Connection thread | |
| inch | mm | ||||
| 1 | 3 | 76 | 1000-6000 | 5.00 | API 2 3/8”REG |
| 2 | 3 | 76 | 1000-6000 | 6.00 | API 2 3/8”REG |
| 3 | 3 | 76 | 1000-9000 | 8.00 | API 2 3/8”REG |
| 4 | 3 1/2 | 89 | 1000-6000 | 6.00 | API 2 3/8”REG |
| 5 | 3 1/2 | 89 | 1000-6000 | 6.00 | API 2 3/8”REG |
| 6 | 3 1/2 | 89 | 1000-9600 | 8.00 | API 2 3/8”REG |
| 7 | 3 1/2 | 89 | 1000-9600 | 8.00 | API 2 3/8”REG |
| 8 | 4 | 102 | 1000-9000 | 8.00 | API 2 7/8”REG |
| 9 | 4 | 102 | 1000-9000 | 10.00 | API 2 7/8”REG |
| 10 | 4 1/2 | 114 | 1500-7620 | 6.00 | API 3 1/2”REG |
| 11 | 4 1/2 | 114 | 1500-9140 | 8.00 | API 3 1/2”REG |
| 12 | 4 1/2 | 114 | 1500-9140 | 8.00 | API 3 1/2”REG |
| 13 | 4 1/2 | 114 | 1500-9140 | 10.00 | API 3 1/2”REG |
| 14 | 4 1/2 | 114 | 1500-9140 | 18.00 | API 3 1/2”REG |
| 15 | 5 | 127 | 1500-9500 | 10.00 | API 3 1/2”REG |
| 16 | 5 | 127 | 1500-9500 | 12.00 | API 3 1/2”REG |
| 17 | 5 | 127 | 1500-9500 | 14.00 | API 3 1/2”REG |
| 18 | 5 | 127 | 1500-9500 | 18.00 | API 3 1/2”REG |
| 19 | 5 1/2 | 140 | 1500-9500 | 9.00 | API 4 1/2”REG or 4” FH |
| 20 | 5 1/2 | 140 | 1500-9500 | 10.00 | API 4 1/2”REG or 4” FH |
| 21 | 5 1/2 | 140 | 1500-9500 | 12.00 | API 4 1/2”REG or 4” FH |
Applications:

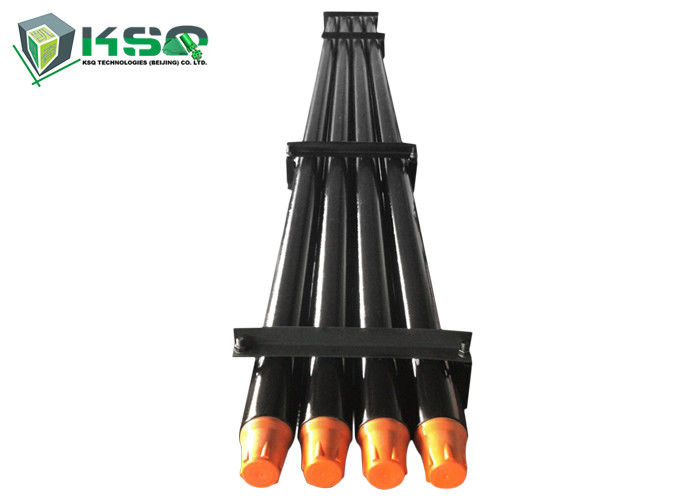

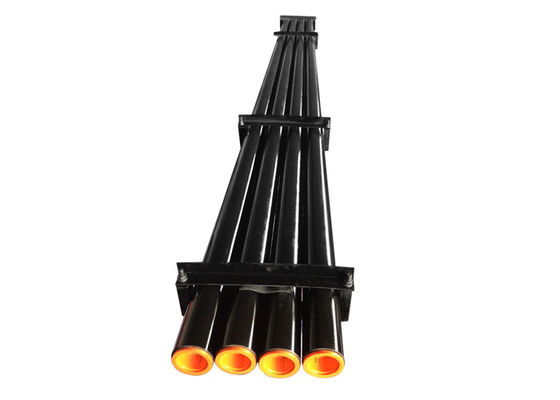

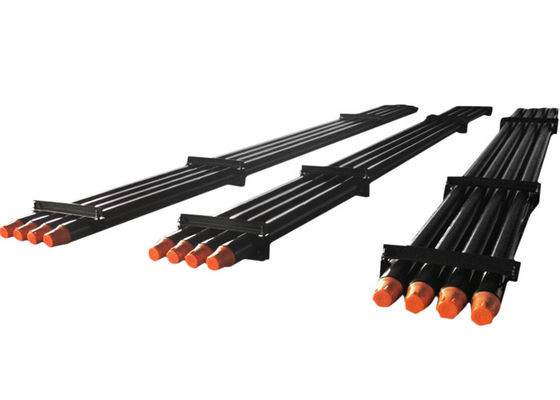

Photos:
About us:
Our products:
Drill Buttons Bits,
Drill Rods
DTH Hammers and Bits
Shank Adapters and a lot of other drilling tools.
