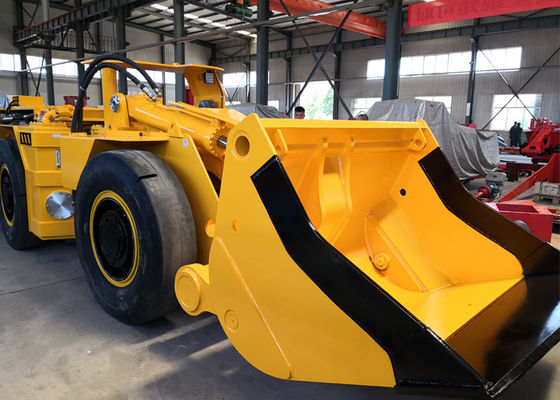

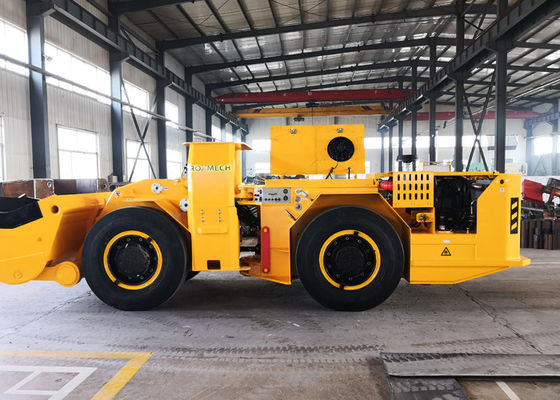

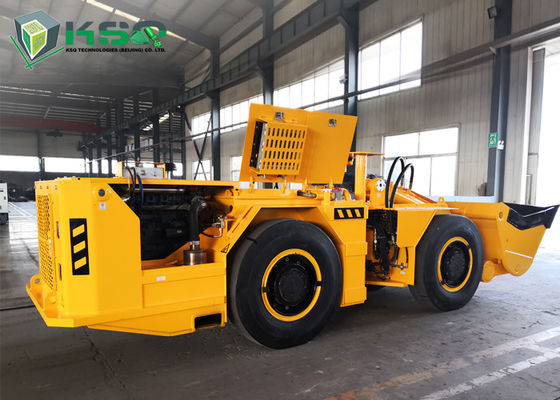

1.8 Cubic Meter Underground Mining Loader With Detuz Engine

1.8 Cubic Meter Underground Mining Loader With Detuz Engine

1.8 Cubic Meter Underground Mining Loader With Detuz Engine
1.8 Cubic Meter Underground Mining Loader With Detuz Engine
1.8 Cubic Meter Underground Mining Loader With Detuz Engine
Product Details:
Place of Origin: China
Brand Name: ROXMECH
Certification: CE, ISO
Model Number: 1.8 Cubic Meter Underground Mining loader
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Suitable for Long Transportation
Delivery Time: 2 Months
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Contact Now
Detailed Product Description
Brand: ROXMECH Length: 7003mm
Width: 1700mm Height: 2086mm
Car Turning Inner Diameter: 2740mm Turning Outer Diameter Of Car: 4766mm
On 90º No More: 3040mm Road Clearance: 266mm
No Load Weight: 11500kg Total Weight With Load No More: 16440kg
High Light:

1.8 Cubic Meter Underground Mining Loader

,

Underground Mining Loader With Detuz Engine

,

Detuz Engine Underground Mining Loader

1.8 Cubic Meter Underground Mining loader with Detuz Engine



1.8m³ Underground Loader
Workhorse of small to medium size mining and tunneling projects
The trusted workhorse of miners and tunneling professionals, the 1.8m³ Underground Loader is ideal for small to medium size rock excavation operations. The 1.8m³ maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.



Competitive Advantage:

1. Original DEUTZ engine

2. Very competitive pricing

3. Competitive delivery time

4. CE, ISO9001 Certified



Applications:
• Underground Mining
• Hydropower Tunneling
• Roadway/Railway Tunneling
• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)



Assembly site

1.8 Cubic Meter Underground Mining Loader With Detuz Engine 0



1.8 Cubic Meter Underground Mining Loader With Detuz Engine 1



1.8 Cubic Meter Underground Mining Loader With Detuz Engine 2



Main Technical Configuration:

11

Hydraulic separation force, kg

8300

12

Mechanical separation force, kg

5600

13

Bucket capacity on SAE with a cap, m3

1.8

14

The angle of overturning of the bucket when loading the dump truck is not less than degrees

40

15

Diesel engine

DeutzF6L914

16

Diesel engine power,kW

74.4KW /84KW

17

Engine cooling

Air

18

Air filter

Dry type

19

Exhaust toxicity reduction system, not lower

Tier III

20

Exhaust system

Exhaust pipe with catalytic converter and muffler

21

Fuel tank capacity, liters

110

22

Torque converter

Dana

23

Transmission

Dana

24

Front axle

Dana 14D

25

Back axle

Dana 14D

26

Tires standard size

12.00 x 24.0 L-5S

27

Open operator's cab, required

ROPS certification
FOPS certification
Lateral location of the operator's seat for ease of movement in both directions
Rotate control with mono joystick.
Two-way lever to control bucket overturning and boom lift.
ROPS
FOPS

28

Operator's chair, required

With two-point seat belt

29

Automatic lubrication system

Necessarily

30

Hydraulic tank capacity, liters

120

31

Hydraulic tank filling pump with filter

Necessarily

32

Indication of low level of hydraulic oil

Necessarily

33

Brake system

Fully enclosed disc brakes in the oil bath on each wheel.
Parking and extreme brakes: spring brake and hydraulic release. Multi-disc, wet type, built into the transmission.
Liquid-cooled service brakes.

34

Headlights and work lighting

Car front-2 units, 50 W
Rear of the car - 2 units , 50 W.

35

Lockable main power switch

Necessarily

36

Reversing Warning (CEN)

Audio-visual alarm

37

Emergency switch (not less)

1 unit

38

Fire extinguishing system

Automatic

39

Manual fire extinguisher

6 kg

40

Security systems

Emergency stop button
The device of mechanical blocking of the central joint of half-frames
The device of mechanical blocking of an arrow in the top position
Retractable stops

41

Spare wheel with tire

Necessarily

42

A set of tools for commissioning

Equipment maintenance tools

43

Documentation

Passport;
Instructions for operation and maintenance in electronic and printed form in Ukrainian or Russian in two copies;
Catalog of spare parts in electronic and printed form in Ukrainian or Russian in two copies;
A set of working drawings and posters for training.
