| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | COP 131 Shank Adapter |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Material: | Alloy Steel | Thread: | T38, T45 |
|---|---|---|---|
| Process Type: | Forging | Product Name: | Shank Adapter |
| Length: | 380mm,445mm | Color: | Black Or Customized |
| High Light: | 445MM T38 Shank Adapter,Top Hammer Drilling T38 Shank Adapter,COP 131 T38 Shank Adapter |
||

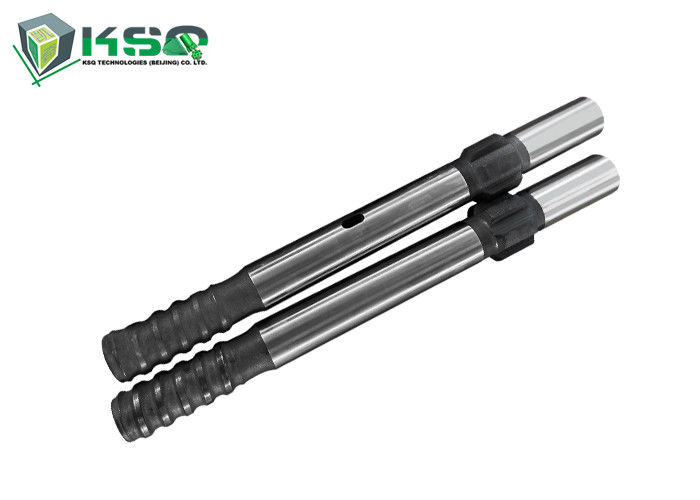

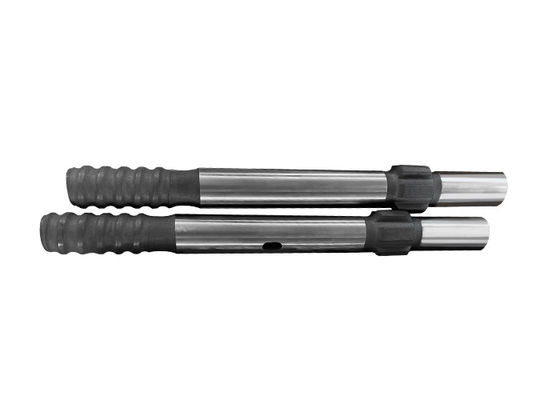

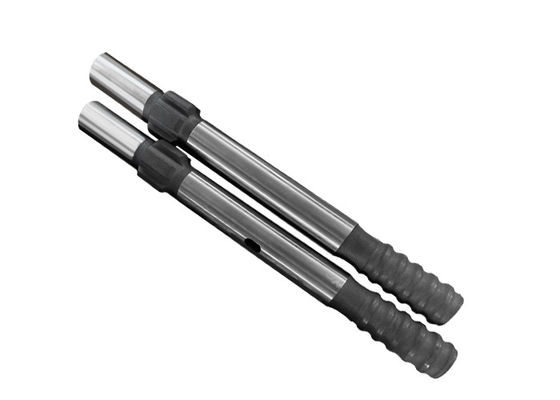

T38 445mm COP 131 Shank Adapter for Top Hammer Drilling
The shank adapters are designed to withstand the high impact power of modern rock drills and made from specially selected material which also is hardened through cauterizing. Around 300 different shank adapters suitable for different rock drills are currently available from Atlas Copco series drifters, Furukawa drifters, Ingersoll-Rand drifters, Montabert drifters, Secoma Hydrastar drifters, Toyo drifters, Tam rock series drifters, Garden Diver series drifters etc.
Male shank adapters are ideal for drifting, tunneling & extension application where high bending stresses are present, Female shank adapters are used when the drilling space is limited and the total feed length is important.
Specification
| Item | Thread | Length | Diameter | Weight | Flushing Tube | Part Number |
| mm | mm | kg | mm | |||
| Atlas Copco 125, COP 130, COP 131 Drifting, Bench Drilling, Production Drilling |
T38 (1 1/2") | 380 | 38 | 3 | 14.3 | 4148322400 |
| T45 (1 3/4") | 380 | 38 | 3 | 14.3 | 4148322401 | |
| Atlas Copco COP 131 Drifting, Production Drilling |
T38 (1 1/2") | 445 | 38.3 | 3.8 | - | 4148322402 |
| Atlas Copco COP 131E Drifting, Production Drilling |
T38 (1 1/2") | 380 | 38.3 | 2.8 | - | 4148322403 |
| Atlas Copco COP 131EB Drifting, Production Drilling |
T38 (1 1/2") | 405 | 38 | 3.2 | 14.3 | 4148322404 |
| Atlas Copco COP 738, Atlas Copco COP A15 Bench Drilling |
T38 (1 1/2") | 500 | 45 | 5.7 | - | 4148322405 |
| Atlas Copco COP 925/928, COP 932/938 with collar Drifting, bench drilling, production drilling |
R32 (1 1/4") | 510 | 38 | 4.7 | - | 414832406 |
| R38 (1 1/2") | 510 | 38 | 5 | - | 414832407 | |
| T38 (1 1/2") | 510 | 38 | 5 | - | 414832408 |
