Certification: | ISO |
Model Number: | T38 Thread Retrac Button Bit |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | customised |
Delivery Time: | 15-20 days |
Supply Ability: | 20000pcs per month |
Place Of Origin: | China | Brand Name: | MIROC |
---|---|---|---|
Type: | Drill Bit | Processing Type: | Forging |
Diameter: | 70-102mm | Button Shape: | Spherical, Ballistic, Conical |
Material: | Tungsten Carbide | Color: | Customised |
High Light: | T38 Tungsten Carbide Button Bit,64mm Tungsten Carbide Button Bit,64mm T38 Button Bit |

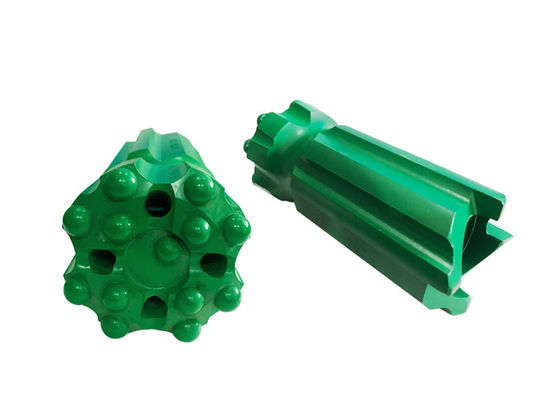

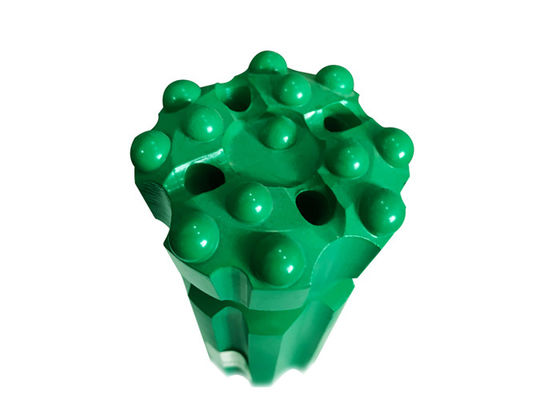

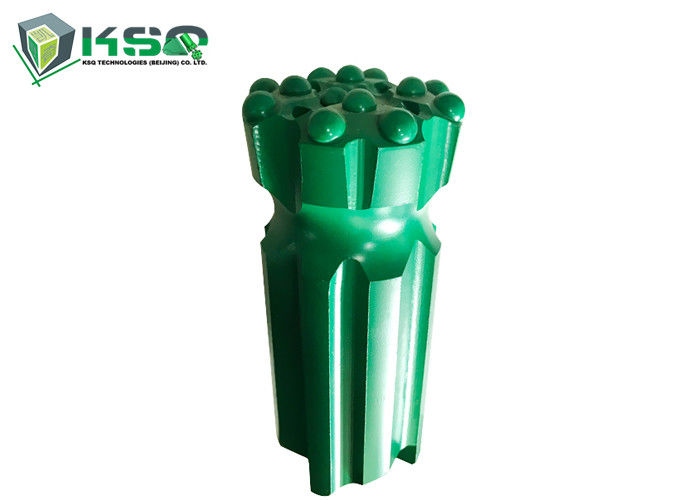

64mm T38 Tungsten Carbide Retracable Thread Button Bit for Top Hammer drilling
Application:
Specification as below:
T38 Retrac Button Bit | Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Part Number | |||
mm | inch | Front | Gauge | Front | Side | kg | ||
Retrat Button Bit,Drop Center Spherical Buttons, R10XX |
64 | 2 1/2 | 3x10,1x10 | 6x11 | 3 | 0 | 2.2 | 4148300738 |
70 | 2 3/4 | 3x10,1x10 | 6x13 | 3 | 0 | 2.4 | 4148300740 | |
Retrat Button Bit, Spherical Buttons, R12XX |
64 | 2 1/2 | 4x10 | 8x10 | 2 | 0 | 2.2 | 4148300737 |
70 | 2 3/4 | 4x11 | 8x11 | 2 | 0 | 2.4 | 4148300739 | |
76 | 3 | 4x11 | 8x11 | 2 | 0 | 3.3 | 4148300742 | |
89 | 3 1/2 | 4x13 | 8x13 | 2 | 0 | 4.8 | 4148300745 |
Carbide Button Shape Selection:
1. Semi-Ballistic Buttons
2. Ballistic Button
3. Spherical Button
4. Two-step Button
Raw material:
Steel:
First class special alloy steel with high strength, heat resistance and wearable
Carbide
The best tungsten carbides from China are commonly applied.
Tungsten carbide from European is also available.
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
Our Advantages:
We have advanced production equipment & talented researchers & technicians & rich experiences in R & D and production.
We using the best quality raw materials.
We adopting advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
Our Factory
Our Activities
Contact Person: Mr. Yingkai Zhang
Tel: +86 18501231988
