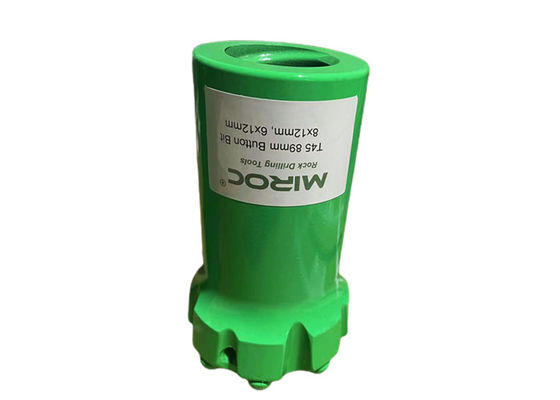

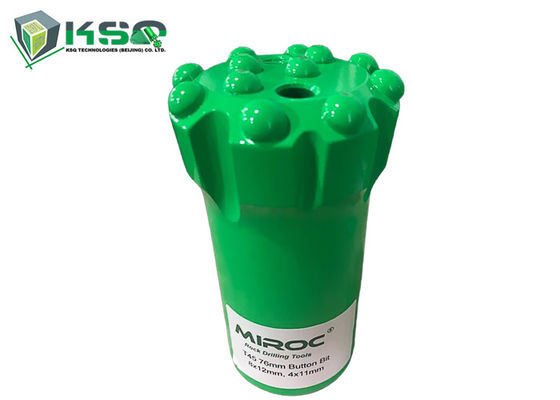

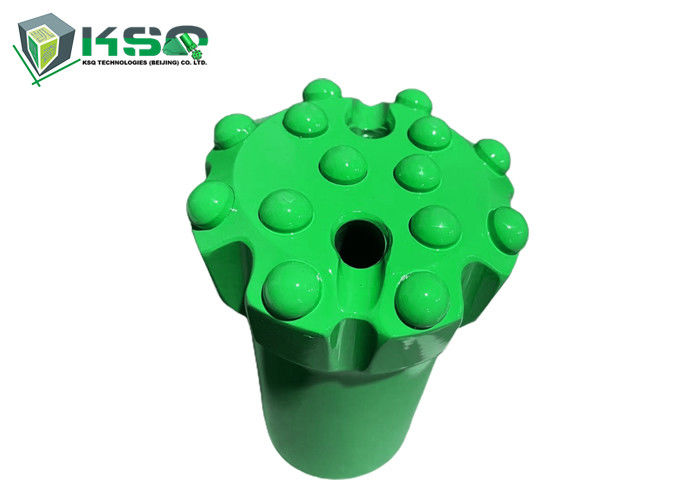

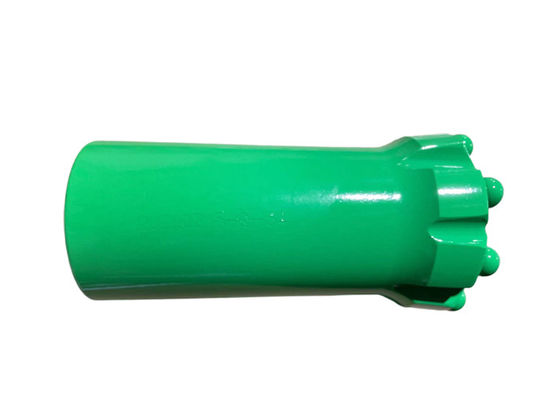

70-102mm Standard And Retrac Shirt T45 Button Bit For Quarry Drilling

70-102mm Standard And Retrac Shirt T45 Button Bit For Quarry Drilling

  • 70-102mm Standard And Retrac Shirt T45 Button Bit For Quarry Drilling
  • 70-102mm Standard And Retrac Shirt T45 Button Bit For Quarry Drilling
  • 70-102mm Standard And Retrac Shirt T45 Button Bit For Quarry Drilling
  • 70-102mm Standard And Retrac Shirt T45 Button Bit For Quarry Drilling
70-102mm Standard And Retrac Shirt T45 Button Bit For Quarry Drilling
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: T45 Button bit
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: wooden box
Delivery Time: 15-20days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Product Name: T45 76 Button Drill Bits Diameter: 76mm
Material: Carbide Processing Type: Forging
Usage: Drifting Tunneling Bench Drilling Button Size: 9x10mm,5x10mm
High Light:

70mm button bit

,

102mm button bit

,

t45 button bits quarry drilling

70~102mm Standard And Retrac Shirt T45 Button Drill For Quarry Drilling



Button Drill bits

The button drill bit is mainly used for blasting hole excavation of open pit rock drilling, underground mining, tunnelling and other infrastructure projects. The connection mode is mainly T-threaded connection and R-threaded connection. The top hammer hydraulic rock drilling rods equipped with drilling rigs and open-air drilling rigs are used to receive the energy transmitted by the rock drill to achieve the effect of breaking the rock.

At present, the most used in engineering is the spherical bit and the ballistic bit. Due to the special working environment of the thread bit, we require that the thread drill bit should have high wear resistance and impact resistance, and have sufficient toughness to cope with the complicated and harsh working environment. Our rock drilling bit is made of high-quality special steel, the alloy head is made of high-strength and toughness wear-resistant alloy, and the whole processing adopts special surface treatment, thus ensuring that our bit is more durable and has higher fatigue resistance.



This type of bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture

• Widely used in bench and long hole drilling
• Bit face design is ideal for medium-hard to hard abrasive rock

Color: Green or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: T45 Button Bit Spherical Buttons

 Applications

• Underground mining
• Tunneling
• Quarry

 Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatmen





T45 Thread button Drill Bit Specification



T45 Button Bit
Thread Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
T45 76 3 4×11 8×11 40° 2 - 2.6 4148300807
76 3 5×11 8×12 35° 2 1 2.6 4148300808
76 3 3×11,1×11 6×13 35° 3 - 2.4 4148300809
76 3 4×11,1×11 8×12 35° 4 - 2.6 4148300810
89 3 1/2 4×13 8×13 40° 2 - 4.6 4148300811
89 3 1/2 6×11 8×12 35° 2 - 4.6 4148300812
89 3 1/2 3×11,2×11 6×13 35° 3 1 4.1 4148300813
89 3 1/2 4×11,1×11 8×12 35° 4 - 4.6 4148300814
89 3 1/2 4×13,1×13 8×13 35° 4 - 4.6 4148300815
102 4 5×14 8×14 40° 2 - 5 4148300816
102 4 6×13 8×16 40° 2 1 5 4148300817
102 4 3×13, 2×13 6×14 35° 3 1 4.5 4148300818
102 4 4×13, 1×13 8×14 35° 4 - 4.5 4148300819
102 4 4×13, 2×13 8×13 35° 4 1 4.5 4148300820



Button carbide shape



Button shape Application
70-102mm Standard And Retrac Shirt T45 Button Bit For Quarry Drilling 0

Spherical Buttons

Universal button for all rock formations,best suited to hardest and very abrasive rock formations

70-102mm Standard And Retrac Shirt T45 Button Bit For Quarry Drilling 1



Conical button



For soft to medium rock hardness,more aggressive with faster penetration rates.



70-102mm Standard And Retrac Shirt T45 Button Bit For Quarry Drilling 2



Ballistic button



Similar to Parabolic buttons,used for soft to medium hard and not so abrasive rock formations,excellent in penetration rate



70-102mm Standard And Retrac Shirt T45 Button Bit For Quarry Drilling 3
