Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: NQ Reamers
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standrad export packaging or customized
Delivery Time: 15-20 days
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Application: Mineral Exploration Industry Type Of Formation: Soft To Super Hard
Usage: In Wire-line Drilling Series Common Size: Overseas Standard Q Series And Others
Packaging: Carton, Wooden Box, Pallet Color: Black, Yellow Or As Requirements
Material: Alloy Steel And Diamond Grains Package: Carton Or As Requested
High Light:

nq core drilling tools

,

nq reaming shell

,

alloy steel iso reaming shell

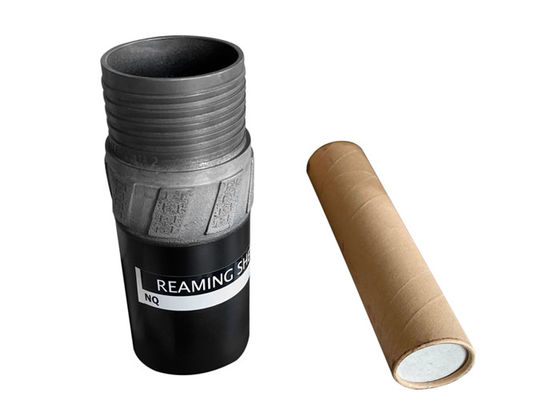

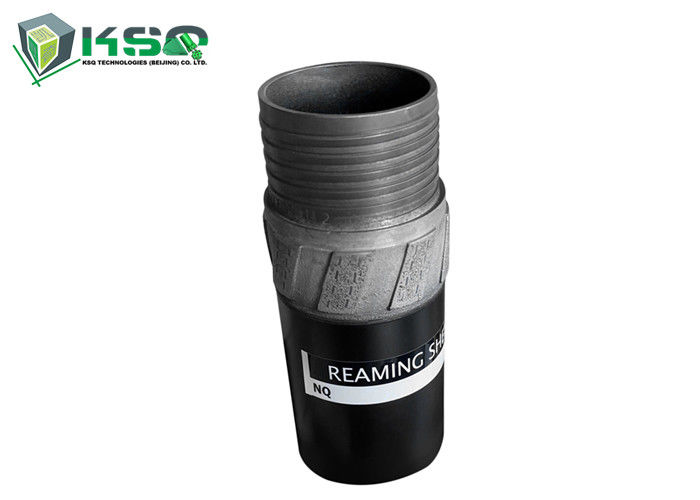

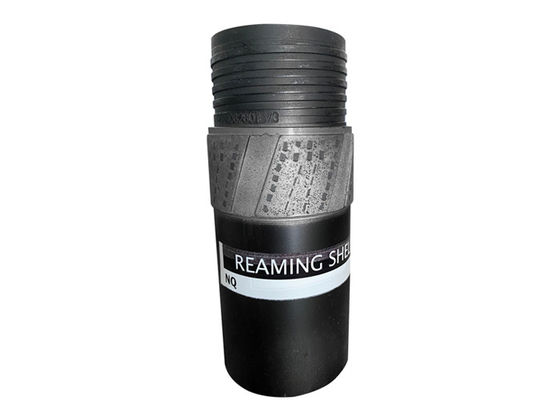

Core Drilling Tools NQ Reamers Reamiing Shell

The reaming shell is an integral part of a diamond drilling system and acts as a coupling between the core bit and the outer barrel. It reams the hole to the proper size, and stabilizes the bottom of the drill string.

Reamers feature increased stability and reduced vibrations due to the specially designed spiral pads, which provide increased contact with the circumference of the hole. Our reaming shells experience longer life in the field due to the greater number of diamonds and hign grade carbide reinforcements.



Core Drilling Tools NQ Reamers Reaming Shell 0







Specifications

Size
Outside Diameter
Inside Diameter
Inch
mm
Inch
mm
AQ
1.880/1.870
47.75/47.50
1.607/1.057
27.1/26.85
BQ
2.350/2.340
59.69/59.44
1.438/1.428
36.52/36.27
NQ
2.970/2.960
75.44/75.19
1.880/1.870
47.75/47.50
HQ
3.770/3.755
95.76/95.38
2.505/2.495
63.63/63.38
PQ
4.815/4.795
122.30/121.80
3.350/3.340
85.09/84.84



Core Drilling Tools NQ Reamers Reaming Shell 1
