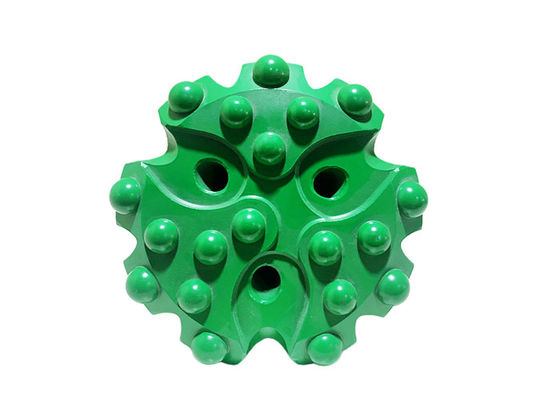

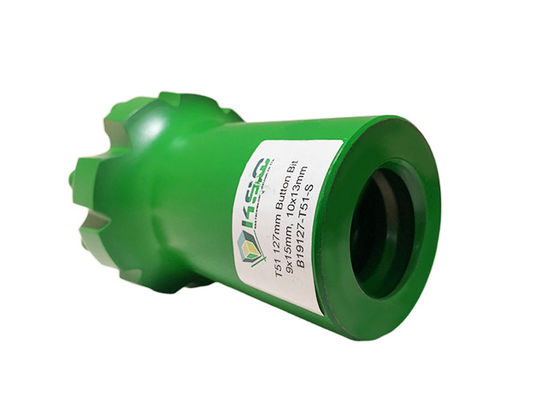

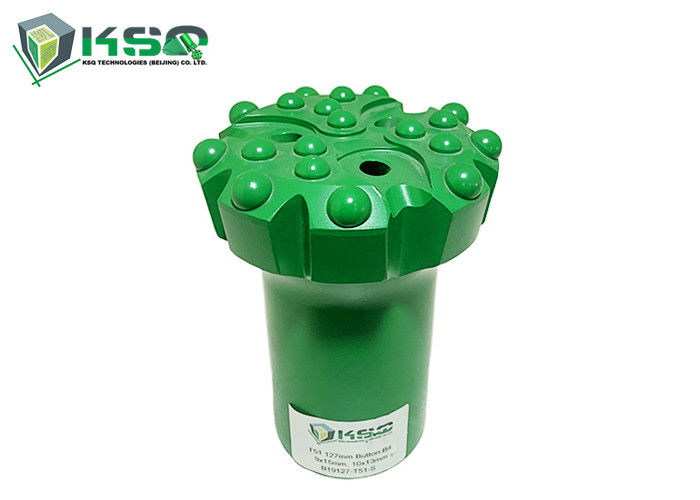

T51 127 Mm Spherical Buttons Drop Center Rock Drill Bits

T51 127 Mm Spherical Buttons Drop Center Rock Drill Bits

  • T51 127 Mm Spherical Buttons Drop Center Rock Drill Bits
  • T51 127 Mm Spherical Buttons Drop Center Rock Drill Bits
  • T51 127 Mm Spherical Buttons Drop Center Rock Drill Bits
T51 127 Mm Spherical Buttons Drop Center Rock Drill Bits
Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: T51 127mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Type: Rock Drill Bit, Mining Drilling Tools Material: Tungsten Carbide
Shape: Based On Needs Color: Green Golden ETC
Advantege: Good Quality And Lower Price. Button Bit Shape: Sphercial / Ballistic / Conical
High Light:

t51 127mm small rock drill bits

,

spherical buttons rock drill bits

,

drop center rock drill bits

T51 127mm Spherical Buttons Drop Center Rock Drill Bits



Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations
(between 200 Mpa to 260 Mpa compressive strength).
Featuring spherical tungsten carbide inserts that are known to have strong configuration against carbide fracture.

Made with the high-quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.

• Used in benching and long hole drilling.
• The bit face design is ideal for medium-hard to hard abrasive rock

Mainly Products

Thread Drill Bits---Diameter: 51mm to 127mm

Thread Type---R22,R25,R28,R32,R38,T38,T45,T51
Face Shape---Plate, Concave, Convex.

Bit Shank & Coupling sleeve---R22,R25,R28,R32,R38,T38,T45,T51

• Color: Green,Blue or Based on Customer requirements



Drill Rod

Steel Drill Rod---H19/H22, Length: 0.5M to 6.0M.

Thread Rod---R25,R28,R32,R38,T38,T45,T51.

Integral Drill Rod---H19/H22, Diameter---20mm - 42mm.



Description

T51 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 89 3x11, 2x11 6x13 4 - 4.9
2 102 3x13, 2x13 6x14 3 1 5.2
3 115 6x14 8x14 2 - 6.8
4 127 4x16, 2x13 8x16 4 - 7.5
T45 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 70 3×11, 1×19 6×11 3 - 2.2
2 76 3×11, 1×11 6×13 3 - 2.4
3 89 3×11, 2×11 6×13 3 1 4.1
4 102 3×13, 2×13 6×14 3 1 4.5
T38 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 64 3×10, 1×10 6×11 3 - 1.8
2 70 3×10, 1×10 6×12 3 - 2.6
3 76 3×11, 1×11 6×12 3 1 2.6
4 89 3×11, 2×11 6×13 3 1 3.3
