R32 52mm Drop Center Stone Retrac Rock Drill Bit

R32 52mm Drop Center Stone Retrac Rock Drill Bit

  • R32 52mm Drop Center Stone Retrac Rock Drill Bit
  • R32 52mm Drop Center Stone Retrac Rock Drill Bit
  • R32 52mm Drop Center Stone Retrac Rock Drill Bit
  • R32 52mm Drop Center Stone Retrac Rock Drill Bit
R32 52mm Drop Center Stone Retrac Rock Drill Bit
Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: R32 52mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10-25days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Type: Retrac Rock Drill Bit Material: Tungsten Carbide, 45CrNiMoVa / Carbide
Use: Coal Mining Diameter: 35mm - 152mm
Advantages: Factory Price Connection: Drill Rod / Shank Adapter
Thread Type: GT60, T51, T45, T38, R32 ETC. Color: Green Or Customize
High Light:

r32 rock drill bit

,

52mm rock drill bit

,

retrac rock drill bit

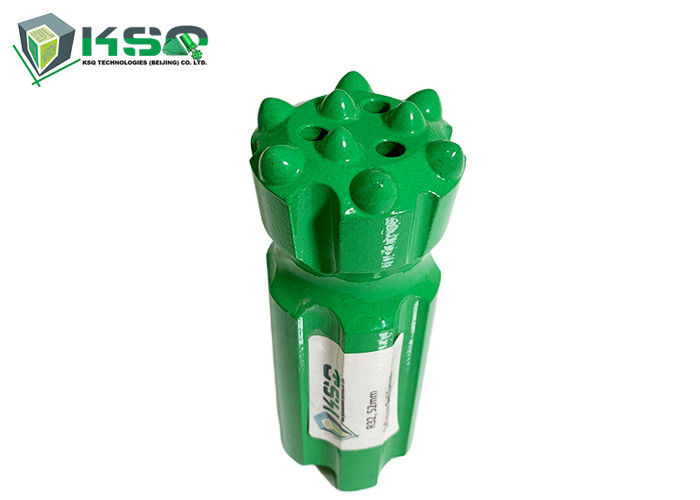

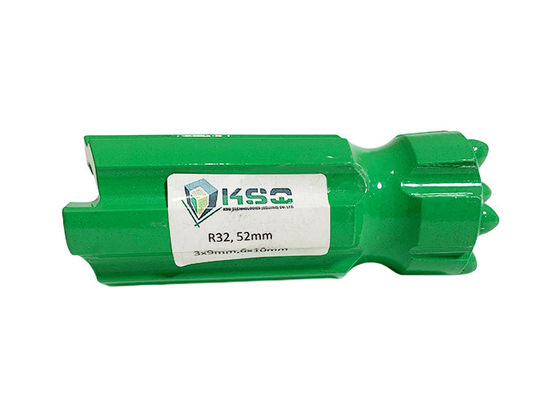

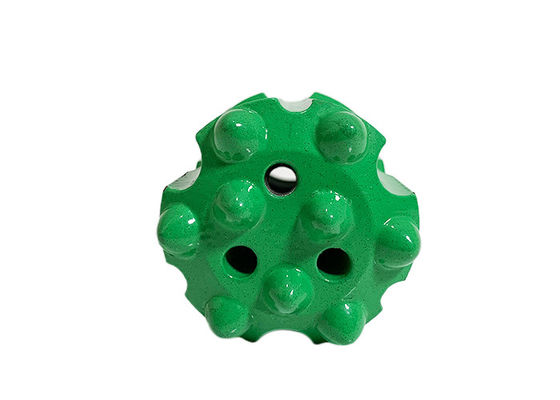

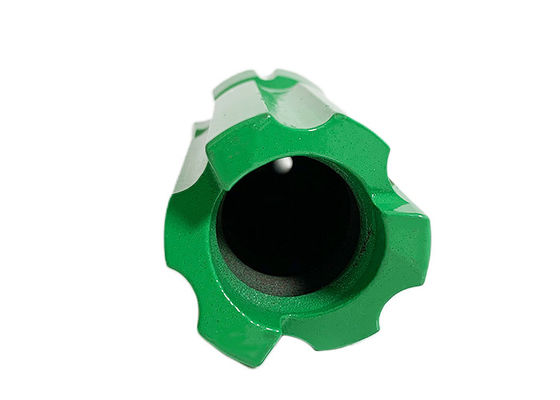

R32 52mm Drop Center Rock Stone Retrac Rock Drill Bit



Thread Button bit is well known for its high wear resistance on

medium-hardto hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.



Main Products:

1. Integral Drill Rods, Plug Hole Rods

Shank : H22x108mm, H19x108mm, standard hex.;

Bit diameters: 29-40mm;

Length: 400mm-8000mm;



2. Tapered Drilling Tools

Taper Bit: 7, 11, 12 degree Taper Button bits, Cross bits and Chisel bits;

Diameter: 20mm- 60mm ;



Taper Rod

Shank Type: H22x 108mm, Shank H25x159mm;

Length: 600-6000mm;



3. Threaded Rock Drilling Tools

Thread: H25,R25, R28, R32, R38, T38,T45, T51, ST58, GT60 Drill Bit;

Bit Body: Button Bit, Reaming Bit, Cross Type Bit, Retrac Button Bit.



R38 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 76 3×11, 1×11 6×12 2 - 2.6
2 89 4×13, 1×13 8×13 4 - 3.3
R32 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
1 48 2×9 5×11 1 1 0.9
2 51 2×10 5×11 1 1 1
3 57 3×9 6×11 3 - 1.3
4 76 4×11 8×11 2 - 2.8
R28 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
  mm Front Gauge Front Side kg
1 37 2×7 5×9 1 1 0.5
2 45 2×9 5×10 1 2 0.9
3 48 2×9 5×11 1 2 1
R25 button bit
  Bit Dia. Buttons and Size (mm) Flushing Hole Weight
1 32 1x8 3x8 1 1 0.24
2 33 2x7 5x7 2 1 0.26
3 41 2x7 5x9 1 1 0.42
4 42 2x8 5x9 1 1 0.43



R32 52mm Drop Center Stone Retrac Rock Drill Bit 0R32 52mm Drop Center Stone Retrac Rock Drill Bit 1R32 52mm Drop Center Stone Retrac Rock Drill Bit 2R32 52mm Drop Center Stone Retrac Rock Drill Bit 3R32 52mm Drop Center Stone Retrac Rock Drill Bit 4R32 52mm Drop Center Stone Retrac Rock Drill Bit 5R32 52mm Drop Center Stone Retrac Rock Drill Bit 6R32 52mm Drop Center Stone Retrac Rock Drill Bit 7
