Place of Origin: | CHINA |
Brand Name: | MIROC |
Certification: | ISO |
Model Number: | T38 76mm |
Packaging Details: | Carton Box or Wooden Box |
---|---|
Delivery Time: | 5-15 Working Days |
Supply Ability: | 10000000 Pieces per Year |
Type: | Rock Drill Bit | Manufacturing Process: | Forging |
---|---|---|---|
Material: | Tungsten Carbide | Surface Treatment: | Heat Treatment |
Button Shape: | Spherical / Ballistic | Rock Class: | Soft, Medium And Hard |
Application: | Rocking | Name: | T38 Button Bit |
High Light: | 64mm top hammer bit,t38 thread top hammer bit,89mm button bits rock drilling |

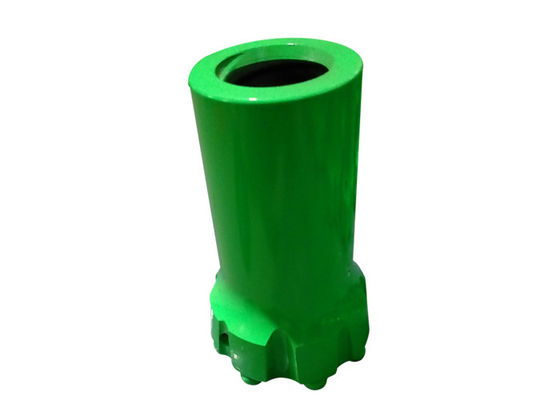

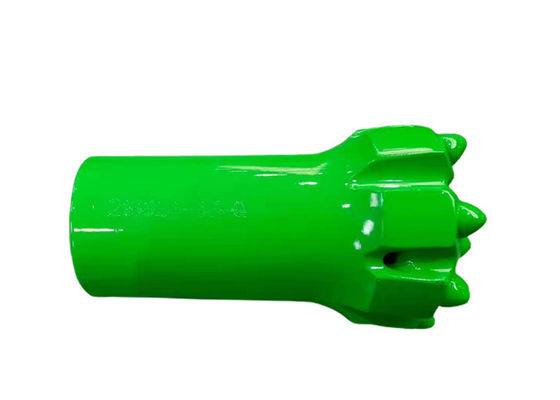

64mm ~89mm Top Hammer Bit T38 Thread Button Bit For Rock Drilling
Application
The thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Rock Drill Thread Button Bits is suitable for R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60 rock drill rods use. It have many thread. It's widely used for hard rock(f=8~18) drilling use.
Characteristics
1. Thread connection: R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60
2. Alloy steel:42CrMo
3. Suitable carbide tips:YK05
4. Technology:hot-pressing or welding
Before Official Order, please confirm below informations:
1. Thread Type
2. Standard or Retrac

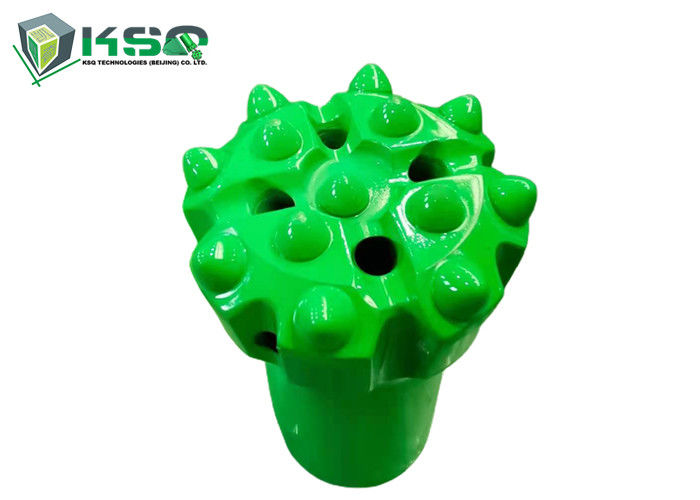

3. Bit button shape (tip shape)--Spherical or Ballistic
4. Bit face shape--Drop Center, Flat Face, Convex, Concave, etc...
T38 Thread Button Bit Specification
Diameter | Buttons and Size (mm) | Flushing hole | Weight | Part Number | ||||
mm | inch | Front | Gauge | Angle | Front | Side | kg | |
Spherical | ||||||||
64 | 2 1/2 | 3×11 | 6×12 | 35° | 3 | - | 1.8 | 4148300705 |
64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | 4148300706 |
64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | - | 1.7 | 4148300707 |
70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | - | 1.9 | 4148300708 |
70 | 2 3/4 | 4×10, 1×10 | 8×11 | 30° | 4 | - | 1.9 | 4148300709 |
70 | 2 3/4 | 3×10, 1×10 | 6×12 | 35° | 3 | - | 1.8 | 4148300710 |
76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 2.4 | 4148300711 |
76 | 3 | 5×11 | 8×13 | 35° | 2 | 1 | 2.4 | 4148300712 |
76 | 3 | 3×11, 1×11 | 6×12 | 35° | 3 | 1 | 2.6 | 4148300713 |
76 | 3 | 4×11, 1×11 | 8×12 | 35° | 4 | - | 2.6 | 4148300714 |
76 | 3 | 4×11, 1×11 | 8×11 | 40° | 4 | - | 2.6 | 4148300715 |
89 | 3 1/2 | 4×13 | 8×13 | 40° | 2 | - | 3.3 | 4148300716 |
89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | - | 3.3 | 4148300717 |
89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | - | 3.3 | 4148300718 |
89 | 3 1/2 | 3×11, 2×11 | 6×13 | 35° | 3 | 1 | 3.3 | 4148300719 |
89 | 3 1/2 | 4×11, 1×11 | 8×13 | 35° | 4 | - | 3.3 | 4148300720 |
89 | 3 1/2 | 4×13, 1×13 | 8×13 | 35° | 4 | - | 3.3 | 4148300721 |
Ballistic | ||||||||
64 | 2 1/2 | 3×11 | 6×12 | 35° | 3 | - | 1.8 | 4148300722 |
64 | 2 1/2 | 4×10 | 8×10 | 40° | 2 | - | 1.6 | 4148300723 |
64 | 2 1/2 | 3×10, 1×10 | 6×11 | 35° | 3 | - | 1.7 | 4148300724 |
70 | 2 3/4 | 4×11 | 8×11 | 40° | 2 | - | 1.9 | 4148300725 |
70 | 2 3/4 | 4×10, 1×10 | 8×11 | 30° | 4 | - | 1.9 | 4148300726 |
76 | 3 | 4×11 | 8×11 | 40° | 2 | - | 2.4 | 4148300727 |
76 | 3 | 5×11 | 8×13 | 35° | 2 | 1 | 2.4 | 4148300728 |
76 | 3 | 3×11, 1×11 | 6×12 | 35° | 3 | 1 | 2.6 | 4148300729 |
76 | 3 | 4×11, 1×11 | 8×12 | 35° | 4 | - | 2.6 | 4148300730 |
76 | 3 | 4×11, 1×11 | 8×11 | 40° | 4 | - | 2.6 | 4148300731 |
89 | 3 1/2 | 5×13 | 8×13 | 35° | 2 | - | 3.3 | 4148300732 |
89 | 3 1/2 | 6×11 | 8×12 | 35° | 2 | - | 3.3 | 4148300733 |
89 | 3 1/2 | 3×11, 2×11 | 6×13 | 35° | 3 | 1 | 3.3 | 4148300734 |
89 | 3 1/2 | 4×11, 1×11 | 8×13 | 35° | 4 | - | 3.3 | 4148300735 |
89 | 3 1/2 | 4×13, 1×13 | 8×13 | 35° | 4 | - | 3.3 |
4148300736 |
