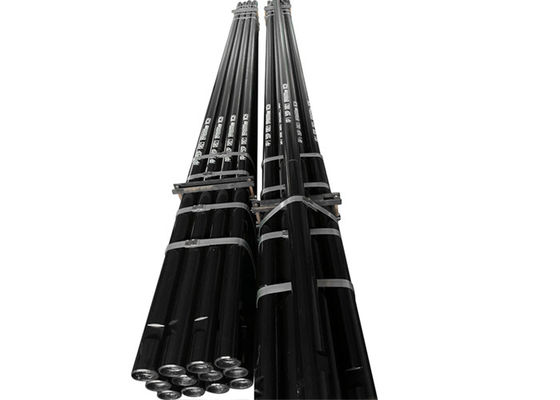

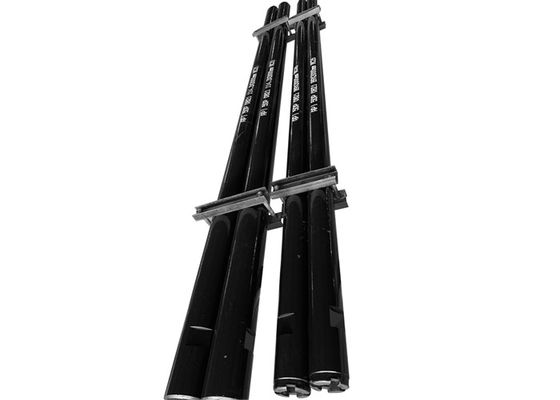

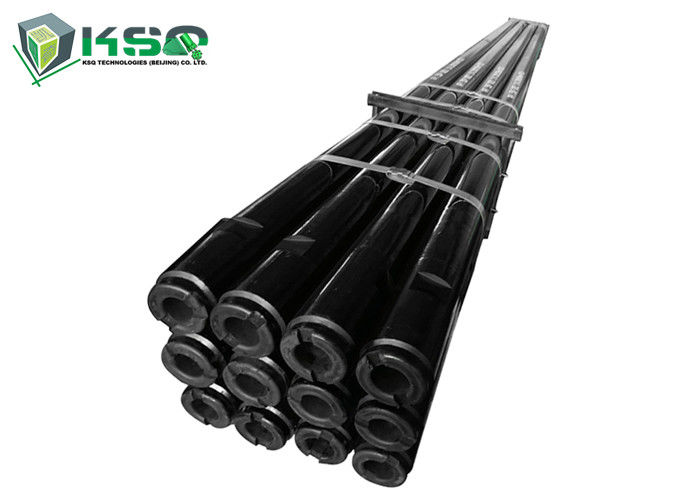

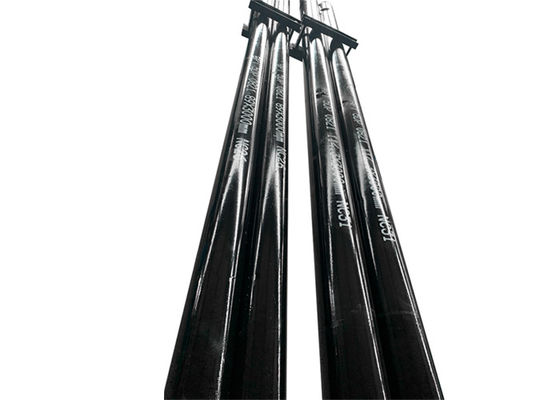

Rotary Drill Pipe Flush Joint 3-1/2" OD 6m Length API 2-3/8" IF For Oil Well

Rotary Drill Pipe Flush Joint 3-1/2" OD 6m Length API 2-3/8" IF For Oil Well

  • Rotary Drill Pipe Flush Joint 3-1/2" OD 6m Length API 2-3/8" IF For Oil Well
  • Rotary Drill Pipe Flush Joint 3-1/2" OD 6m Length API 2-3/8" IF For Oil Well
  • Rotary Drill Pipe Flush Joint 3-1/2" OD 6m Length API 2-3/8" IF For Oil Well
  • Rotary Drill Pipe Flush Joint 3-1/2" OD 6m Length API 2-3/8" IF For Oil Well
Rotary Drill Pipe Flush Joint 3-1/2" OD 6m Length API 2-3/8" IF For Oil Well
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO9001,SGS, SONCAP
Model Number: Drill Pipe
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD50-USD1000
Packaging Details: Iron Pallet
Delivery Time: 20-25 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30000pcs
Contact Now
Detailed Product Description
Color:: Black Diameter:: 89mm,102mm,114mm,127mm,140mm,152mm,159mm,178mm,194mm
Length:: 1meter To 9meter Welding:: Friction Welding
API Thread:: API 2-3/8" IF Wall Thickness:: 5mm, 6mm, 8mm, 10mm
Usage:: Well Drilling Name: 89mm Rotary Drill Pipe
High Light:

oil well rotary drill pipe

,

flush joint rotary drill pipe

,

friction welding rotary drill pipe

New Rotary Drill Pipe Flush Joint 3-1/2"O.D 6m Length API 2-3/8" IF For Oil Well



1, Drill pipe body raw material

Drill pipe body and tools joint raw material are high-performance alloy steel according with API standard and strictly checked by chemical content, metallographic structure,geometric dimension,NDT tests,etc to ensure the stable quality of the product.



2,Process of drill pipe body

Pipe end is upsetted by National Oil Well equipment with 1250 tons weight. The upsetted area is more thicker, no wrinkle and longer smooth transition zone from upset to normal thickness area. Pipe body heat treatment is processed by over-type automatic heat treatment furnace and straightening machine with whole course hardness test and Ultrasonic inspection.



3,Process of friction welding

Friction welding is processed by MTI equipment for the pipe body and joint,automatically finished by computer control,and the after welding process such as welding area heat treatment, inner and outside grinding,magnetic particle inspection may guarantee high quality of finished product.



4,Tensile performance parameters

API Steel Grade: E-75

Yield strength min: 75,000 Psi~ 517Mpa

Yield strength Max: 105,000 Psi~ 724Mpa

Tensile strength min: 100,000Psi -- 689Mpa



Basic Information

Product Name Rotary Drill Pipe
Thread API 2-3/8" IF
Diameter  89mm
Length  6m
Thickness  8.8mm
Order Information Thread + Length + Diameter+Thickness
MOQ 1 Pieces
Color Black or based on customer requirements.



Specifications:

OD/mm(in)
Weight/(kg/m)
Thickness/mm
ID/mm
Cross-section/cm2
Connection
60.3(23/8)
9.892
7.11
46.1
11.89
NC26
73.0(27/8)
15.475
9.19
54.64
18.44
NC31
88.9(31/2)
19.788
9.35
70.212
3.36
NC38
88.9(31/2)
23.061
11.41
66.09
27.77
NC38
101.6(4)
17.63
6.65
88.29
19.85
NC40
101.6(4)
20.828
8.38
84.84
24.55
NC46
114.3(41/2)
26.933
9.47
95.35
31.2
NC50
114.3(41/2)
29.756
10.92
92.46
35.47
NC50
127(5)
24.2
7.52
111.96
28.22
NC50
127(5)
29.011
9.19
108.6
134.03
NC50
139.7(51/2)
32.583
9.17
121.36
37.6
5 1/2 FH
139.7(51/2)
36.754
10.54
118.62
42.77
  5 1/2 FH

Rotary Drill Pipe Flush Joint 3-1/2" OD 6m Length API 2-3/8" IF For Oil Well 0



All products processing and quality control are in accordance with API SPEC Q1 and ISO 901:2000 quality management standard.



For further improve the quality of management we set an independent API quality management audit team who make supervising and examining to the quality system operation so as to continuously improve product quality and employee’s quality awareness.



In whole production,quality control procedure includes tracking production process for each product,statistical analysis of quality and trace ability system.



Our company has a large number of experienced production and quality and technical experts and professional service engineers to provide technical service at any time and help customer solve problems.



Rotary Drill Pipe Flush Joint 3-1/2" OD 6m Length API 2-3/8" IF For Oil Well 1
