| Certification: | ISO |
| Model Number: | T45 102mm Thread Button Bit |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Nogotiation |
| Packaging Details: | customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Place Of Origin: | China | Brand Name: | MIROC |
|---|---|---|---|
| Type: | Drill Bit | Processing Type: | Forging |
| Diameter: | 89mm To 115mm | Material: | Tungsten Carbide And Steel |
| Button Type: | Spherical, Ballistic, Conical | Corlor: | Customised |
| Button Numbers: | 12 To 18 Buttons | Face Type: | Flat, Drop Center |
| Flushing Hole: | 2 To 5 Holes | Product Name: | T45 Threaded Button Bit |
| High Light: | alloy steel rock drill bit,102mm rock drill bit,t45 thread rock drill bits |
||

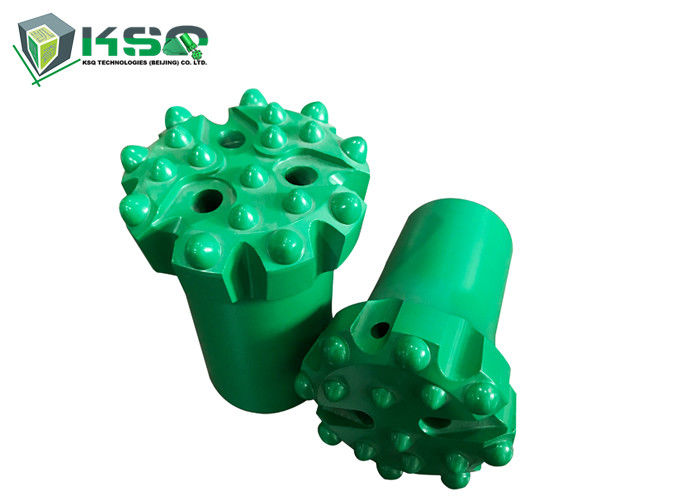

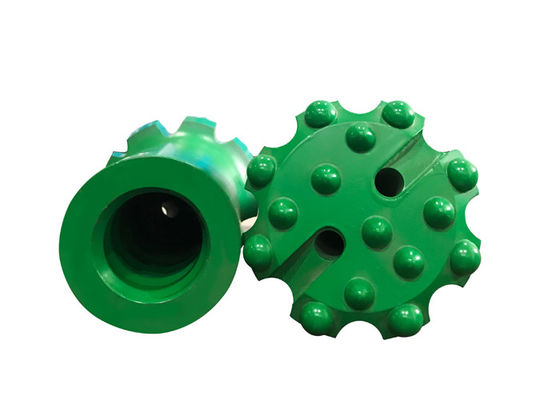

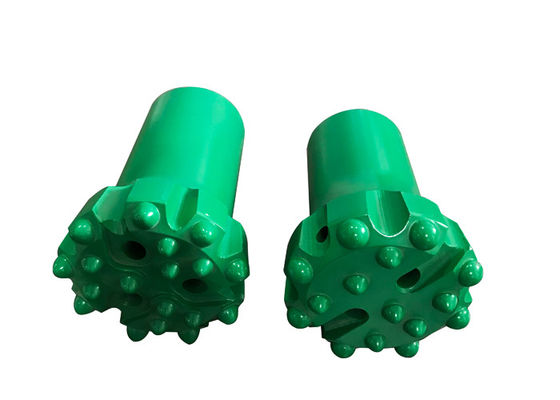

Alloy Steel 102mm T45 Threaded Rock Drill Bit with Carbide Buttons Inserts
KSQ With the top quality of alloy steels and the best carbides made in China, we produce all threaded button bits by hot press technology.
A comprehensive range of various button bits shown as below:
Thread sizes: R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST60, GT60;
Head diameters: 33mm ~ 152mm;
Face designs; flat face, drop center, uni-face;
Skirt designs: normal, retract, straigh retract
Specification:
| T45 Threaded Button Bit | Bit Dia. | Buttons and Size (mm) | Flushing Hole | Weight | Product Code | |||
| mm | inch | Front | Gauge | Front | Side | kg | ||
| Button Bit, Drop Center Spherical Buttons, B10XX |
70 | 2 3/4 | 3x11,1x19 | 6x11 | 3 | - | 2.2 | B1070-T45-S |
| 76 | 3 | 3x11,1x11 | 6x13 | 3 | - | 2.4 | B1076-T45-S | |
| Button Bit, Drop Center Spherical Buttons, B11XX |
89 | 3 1/2 | 3x11, 2x11 | 6x13 | 3 | 1 | 4.1 | B1189-T45-S |
| 102 | 4 | 3x13, 2x13 | 6x14 | 3 | 1 | 4.5 | B11102-T45-S | |
| Button Bit Spherical Buttons, B12XX |
70 | 2 3/4 | 4x11 | 8x11 | 2 | - | 2.3 | B1270-T45-S |
| 76 | 3 | 4x11 | 8x11 | 2 | - | 2.6 | B1276-T45-S | |
| 89 | 3 1/2 | 4x13 | 8x13 | 2 | - | 4.6 | B1289-T45-S | |
| Button Bit, Drop Center Spherical Buttons, B13XX |
70 | 2 3/4 | 4x10, 1x10 | 8x11 | 4 | - | 2.2 | B1370-T45-S |
| 76 | 3 | 4x11, 1x11 | 8x12 | 4 | - | 2.6 | B1376-T45-S | |
| 89 | 3 1/2 | 4x11, 1x11 | 8x12 | 4 | - | 4.6 | B1389-T45-S-1 | |
| 89 | 3 1/2 | 4x13, 1x13 | 8x13 | 4 | - | 4.6 | B1389-T45-S-2 | |
| 102 | 4 | 4x13, 1x13 | 8x14 | 4 | - | 4.5 | B13102-T45-S | |
| Button Bit Spherical Buttons, B14XX |
89 | 3 1/2 | 6x11 | 8x12 | 2 | - | 4.6 | B1489-T45-S |
| 102 | 4 | 6x13 | 8x16 | 2 | 1 | 5 | B14102-T45-S-1 | |
| Button Bit, Drop Center Spherical Buttons, B14XX |
102 | 4 | 4x13, 2x13 | 8x13 | 4 | 1 | 4.5 | B14102-T45-S-2 |
| Button Bit, Drop Center Ballistic Buttons, B10XX |
70 | 2 3/4 | 3x11, 1x19 | 6x11 | 3 | - | 2.2 | B1070-T45-B |
| 76 | 3 | 3x11, 1x11 | 6x13 | 3 | 1 | 2.4 | B1076-T45-B | |
| Button Bit, Drop Center Ballistic Buttons, B11XX |
89 | 3 1/2 | 3x11, 2x11 | 6x13 | 3 | 1 | 4.1 | B1189-T45-B |
| Button Bit Ballistic Buttons, B12XX |
76 | 3 | 4x11 | 8x11 | 2 | - | 2.6 | B1276-T45-B |
| 89 | 3 1/2 | 4x13 | 8x13 | 2 | - | 4.6 | B1289-T45-B | |
| Button Bit Ballistic Buttons, B13XX |
76 | 3 | 5x11 | 8x12 | 2 | 1 | 2.6 | B1376-T45-B-1 |
| Button Bit, Drop Center Ballistic Buttons, B13XX |
70 | 2 3/4 | 4x10, 1x10 | 8x11 | 4 | - | 2.2 | B1370-T45-B |
| 76 | 3 | 4x11, 1x11 | 8x11 | 4 | - | 2.6 | B1376-T45-B-2 | |
| 76 | 3 | 4x11, 1x11 | 8x12 | 4 | - | 2.6 | B1376-T45-B-3 | |
| 89 | 3 1/2 | 4x11, 1x11 | 8x12 | 4 | - | 4.6 | B1389-T45-B-1 | |
| 89 | 3 1/2 | 4x13, 1x13 | 8x13 | 4 | - | 4.6 | B1389-T45-B-2 | |
| Button Bit Ballistic Buttons, B14XX |
89 | 3 1/2 | 6x11 | 8x12 | 2 | - | 4.6 | B1489-T45-B |
