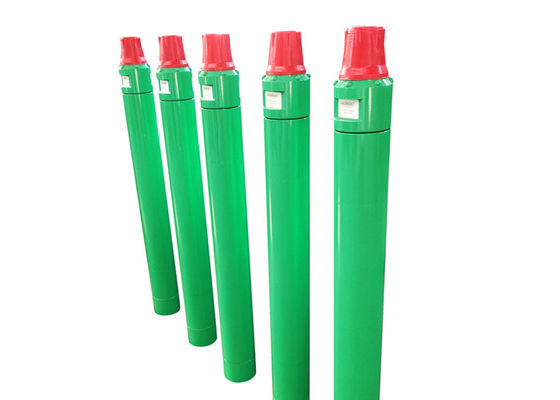

Air High Pressure 152 Mm Dth Button Bit And Hammer Dhd 360 For Water Well

Air High Pressure 152 Mm Dth Button Bit And Hammer Dhd 360 For Water Well

  • Air High Pressure 152 Mm Dth Button Bit And Hammer Dhd 360 For Water Well
  • Air High Pressure 152 Mm Dth Button Bit And Hammer Dhd 360 For Water Well
  • Air High Pressure 152 Mm Dth Button Bit And Hammer Dhd 360 For Water Well
  • Air High Pressure 152 Mm Dth Button Bit And Hammer Dhd 360 For Water Well
  • Air High Pressure 152 Mm Dth Button Bit And Hammer Dhd 360 For Water Well
Air High Pressure 152 Mm Dth Button Bit And Hammer Dhd 360 For Water Well
Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: DHD360 Drill Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Carton Box or Wooden Box
Delivery Time: 5-15 Working Days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Type: DHD360 Drill Bit Material: Carbide
Color: Red, Black, Yellow, White,Request Transport Package: Wood Package
Use: Well Drilling, Ore Mining Product Name: DHD Hammer Bit
Application: DTH Drilling Advantage: Wear Resistant
High Light:

carbide dth button bit

,

152 mm dth button bit

,

water well dth button bit

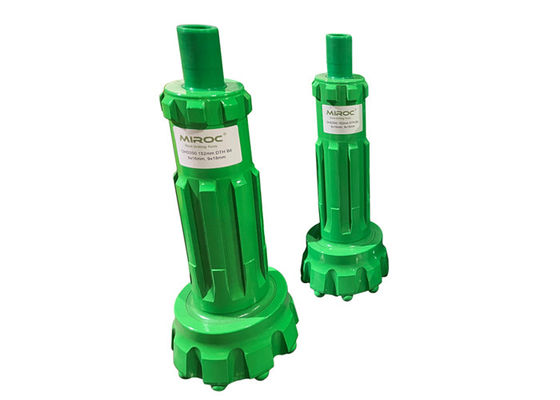

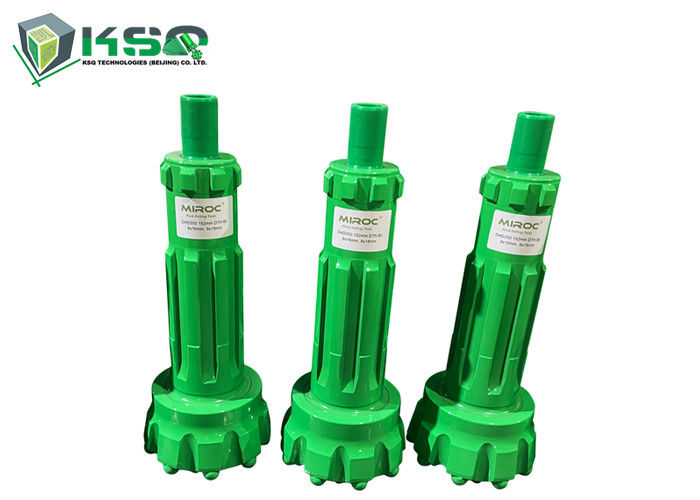

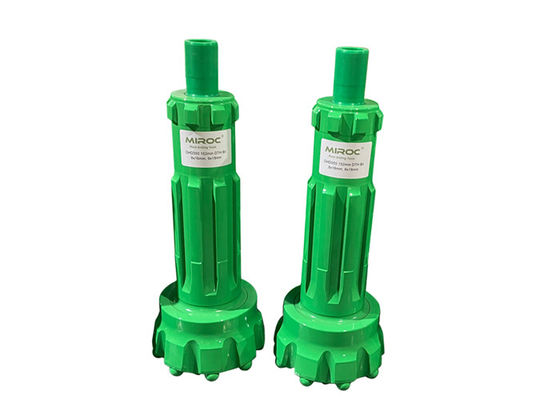

Air High Pressure 152mm DTH Button Bit And Hammer DHD360 For Water Well

Dth Hammer Bit Products Parameters:

1. high and low air pressure down-the-hole drill bits

2. Low air pressure hole Dia.:65-220mm

3. High air pressure hole Dia.:85-305mm

4. Face type: drop center bit/concave face/convex face/double gauge face/flat face bit

5. Carbide button shape: domed/round button parabolic/semi-ballistic button ballistic button sharp button flat button

6. Drill rock type: Granite, Marble, Limestone, Basalt, ect.

7. Project types: Blast holes, Quarry , Anchoring, Infrastructure, Geothermal holes, Well drilling,ect.

8. Color: Green,Blue or Based on Customer requirements



Dth Hammer Bit Advantages Description
1.Quality 95% quality similarity with world top class brands,such as atlas ingersoll rand etc.
2.Shank Type Our products can be suitable for many types of DTH Hammer, such as QL, Mission, COP, IR, SD,HD,DHD,BR,CIR etc.
3.Materials Our products adopt high-quality raw materials, advanced technology and passed through strictly inspection, making sure the high quality of every dth bits
4.Advantages Our dth bits can transmit intensive impact energy into the rock with the least loss of energy, which can help you improve efficiency and reduce costs
5.Product life We select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear, thus the service life of bits will be increased.



Products Parameters

Product DHD360 bit
Air pressure high
Diameter 152mm

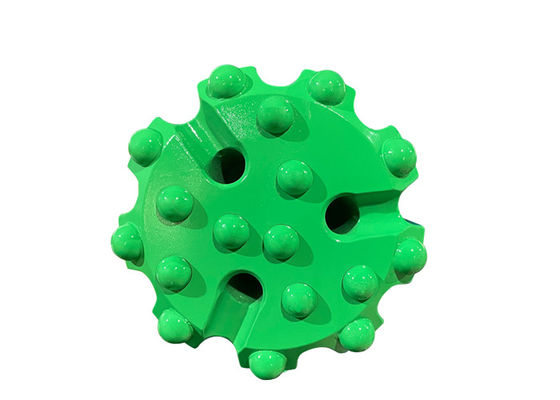

Face type Concave face
Carbide button shape Spherical
Drill rock type Granite, Marble, Limestone, Basalt, ect.
Project types Blast holes,/Quarry/Anchoring/Infrastructure/Geothermal holesWell drilling,ect.



6'' High Air Pressure DTH Bit for DHD360 Shank Specification



Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge kg
DHD360 Spherical button/Concave face
152 6 4×16,4×16 8×18 2 26 4148301383
155 6 1/8 4×16,4×16 8×18 2 27 4148301384
159 6 1/4 4×16,4×16 8×18 2 29 4148301385
165 6 1/2 4×16,4×16 8×18 2 30 4148301386
165 6 1/2 4×18,4×18 8×18 2 30 4148301387
172 6 3/4 4×18,4×18 8×18 2 31 4148301388
178 7 4×18,4×18 8×18 2 32 4148301389
190 7 1/2 3×18,5×18 9×18 3 34 4148301390
203 8 3×18,6×18 9×18 3 36 4148301391
DHD360 Ballistic button/Convex face
152 6 6×16,4×16 9×18 3 26 4148301392
155 6 1/8 6×16,4×16 9×18 3 27 4148301393
159 6 1/4 6×16,4×16 9×18 3 29 4148301394
165 6 1/2 6×18,4×18 9×18 3 30 4148301395
172 6 3/4 6×18,4×18 9×18 3 31 4148301396
178 7 6×18,4×18 9×18 3 32 4148301397
190 7 1/2 6×18,5×18 9×18 3 34 4148301398
203 8 6×18,6×18 9×18 3 36 4148301399
DHD360 Spherical button/Flat face
152 6 8×16 9×18 3 26 4148301400
155 6 1/8 8×16 9×18 3 27 4148301401
159 6 1/4 9×16 9×18 3 29 4148301402
165 6 1/2 8×16 9×18 3 30 4148301403
165 6 1/2 8×16 9×18 3 30 4148301404
172 6 3/4 8×18 9×18 3 31 4148301405
178 7 8×18 9×18 3 32 4148301406
190 7 1/2 9×18 9×18 3 34 4148301407
203 8 9×18 9×18 3 36 4148301408





Air High Pressure 152 Mm Dth Button Bit And Hammer Dhd 360 For Water Well 0Air High Pressure 152 Mm Dth Button Bit And Hammer Dhd 360 For Water Well 1Air High Pressure 152 Mm Dth Button Bit And Hammer Dhd 360 For Water Well 2
