| Place of Origin: | CHINA |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | COP1132 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 5-15 Working Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000 pieces per month |
| Type: | Shank Adaptor | Material: | Stainless Steel |
|---|---|---|---|
| Use: | Tunneling, Mining,quarrying,construction, Well Drilling,mining Drilling,ore Drilling | Thread: | R32,R38, |
| Length: | 300mm-800mm | Weight (KG): | 2.4 |
| High Light: | r32 drill shank adaptor,tunneling shank adapter,tunneling drill shank adaptor |
||

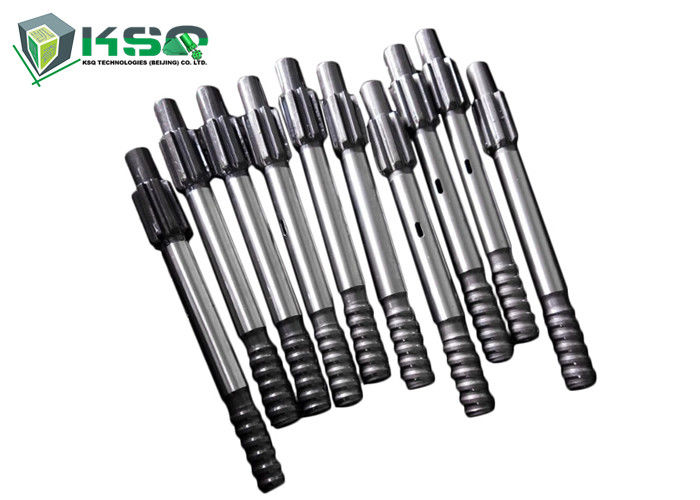

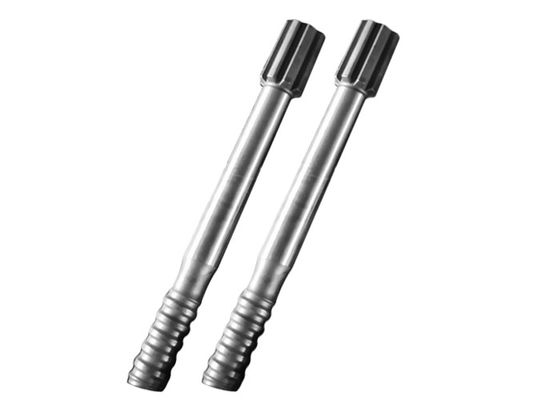

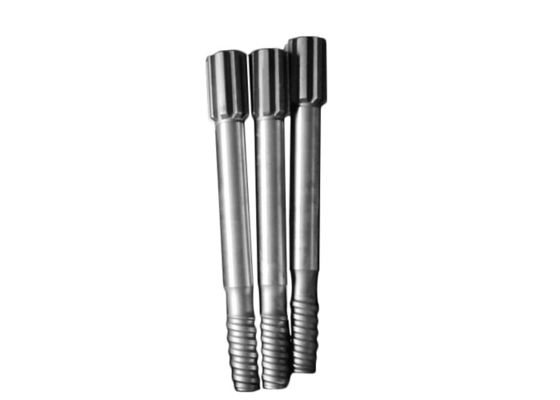

COP1132 Thread R32 Rock Drill Shank Adaptor
KSQ shank adaptors ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment. Different shank adapters are available, like Atlas Copco, Tamrock, Ingersoll Rand,etc. Also for the same drill machine, due to different applications, the shank adapters can be different length and different threads:
Atlas Copco (COP1238, COP1838, COP1032 and etc)
Furukawa (HD715, HD612, HD609, PD200 and etc)
Ingersoll-Rand (VL140, VL671, YH80A and etc)
Tamrock(HLX5, HL600, HL500, HL300, HL 700, HL850, HL1000, HL1500 and etc)
Shank Adapter Specification for Rock Drill
| SHANK ADAPTER | |||||
| Rock Drill Manufacturer and Model | Thread | Diameter | Length | Flushing | Weight |
| mm | mm | kg | |||
| COP 1132 | R32 | 35 | 410 | - | 2.4 |
| COP 1132 | R32 | 35 | 500 | - | 3.0 |
| COP 1132 | R32 | 45 | 280 | - | 2.4 |
| COP 1140 | R32 | 35 | 410 | - | 2.6 |
| COP 1238 | R25 | 38 | 485 | - | 4.2 |
| COP 1240 | R32 | 52 | 565 | - | 6.4 |
| T38 | 52 | 565 | - | 6.6 | |
| COP 1240, COP 1640 | R32 | 52 | 680 | - | 9.6 |
| COP 1240EX | T38 | 60 | 770 | - | 10.7 |
| COP 1338EX | R32 | 60 | 780 | - | 10.1 |
| T38 | 60 | 780 | 10.2 | ||
| T45 | 60 | 780 | 10.4 | ||
| COP 1140 | R32 | 55 | 341 | - | 4.7 |
| R38 | 55 | 341 | 4.4 | ||
| T38 | 55 | 341 | 4.4 | ||
| COP 1238 | R32 | 35 | 410 | - | 2.6 |
| COP 1240 | R32 | 35 | 500 | - | 3.0 |
| COP 1440, COP 1838 | R32 | 52 | 640 | - | 7.5 |
| COP 1440, COP 1838 | R32 | 52 | 640 | - | 9.1 |
| R38 | 640 | - | 8.9 | ||
| COP 1440, COP 1838, COP1550 | R32 | 52 | 525 | - | 5.7 |
| T38 | 52 | 525 | - | 5.9 | |
| T45 | 52 | 525 | - | 6.1 | |
| T51 | 52 | 525 | - | 6.5 |
|
Our drill tools has following advantages:
1. 95% quality similarity with world top class brands,such as atlas Copco etc.
2. Strong ability in drilling tools production.
3.Strick quality control.
