| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | T45-210mm |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standrad export packaging or customised |
| Delivery Time: | 15-20 days |
| Supply Ability: | 20000pcs per month |
| Material: | Alloy Steel | Process Type: | Forging |
|---|---|---|---|
| Application: | Drifting & Tunneling, Benching And Long Hole Drilling | Diameter: | 55mm, 63mm, 66mm |
| Processing: | CNC Milling And Heat Treatment | Product Name: | Thread Coupling Sleeve |
| Bridge Type: | Full-bridge, Semi-bridge Etc. | Thread Type: | T38，T45 |
| Product Type: | Drill Sleeve, Standard Coupling, Crossover Coupling | Corlor: | Black Or Customized |
| High Light: | 190mm t38 threaded coupling sleeve,connecting drill rod threaded coupling sleeve,210mm t45 coupling sleeve |
||

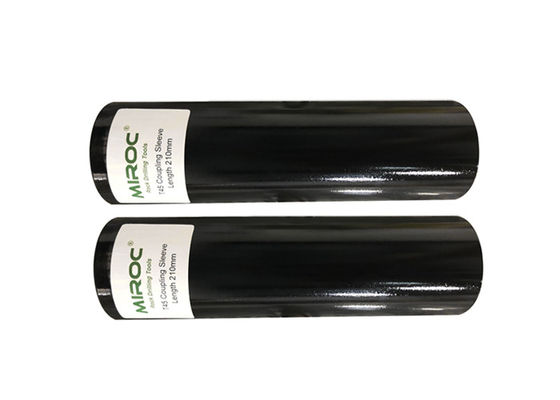

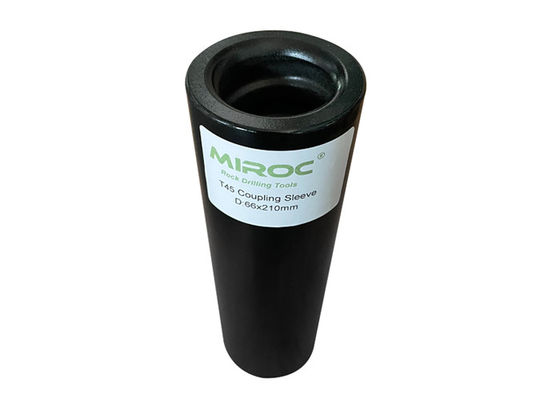

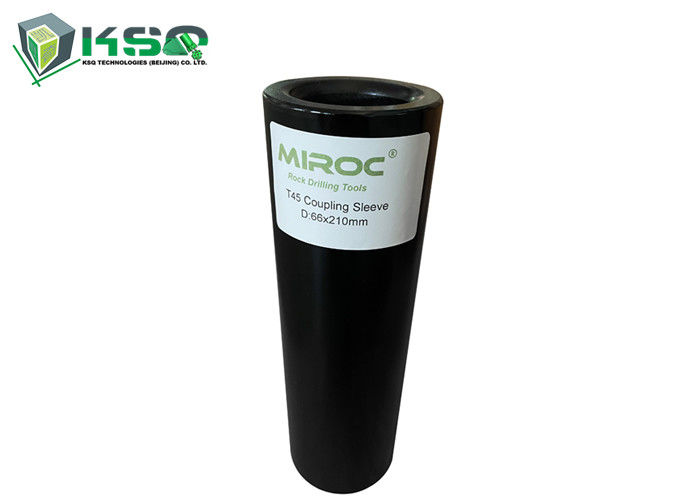

T38, T45 Threaded Coupling Sleeve for Connecting Extension Drill Rod
Coupling sleeves, other name is Coupling, when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod, ensuring the ends touch for efficient energy transmission. Couplings are also used to connect several rods to each other in the same way. Couplings have a middle stop to prevent over-threading on to the drill rod. We can manufactures semi-bridge, full bridge coupling sleeves for the percussive tools.
Specification for Couple Sleeve
| Coupling Sleeve | ||||||
| Length | Diameter | Thread | Weight | Part Number | ||
| mm | inch | mm | inch | kg | ||
| R25 Coupling Sleeve | ||||||
| 150 | 6 | 35 | 1 3/8 | R25 | 0.7 | 4148300429 |
| 155 | 6 1/9 | 44 | 1 3/4 | R25 | 1 | 4148300430 |
| 160 | 6 2/7 | 38 | 1 1/2 | R25 | 1.3 | 4148300431 |
| R28 Coupling Sleeve | ||||||
| 150 | 6 | 40 | 1 4/7 | R28 | 0.9 | 4148300483 |
| 170 | 6 2/3 | 55 | 2 1/6 | R28 | 2 | 4148300484 |
| R32 Coupling Sleeve | ||||||
| 150 | 6 | 44 | 1 3/4 | R32 | 1 | 4148300646 |
| 160 | 6 2/7 | 44 | 1 3/4 | R32 | 1.1 | 4148300647 |
| R38 Coupling Sleeve | ||||||
| 170 | 6 2/3 | 55 | 2 1/6 | R38 | 1.9 | 4148300703 |
| 190 | 7 1/2 | 55 | 2 1/6 | R38 | 2.1 | 4148300704 |
| T38 Coupling Sleeve | ||||||
| 190 | 7 1/2 | 55 | 2 1/6 | T38 | 2.1 | 4148300803 |
| T45 Coupling Sleeve | ||||||
| 210 | 8 1/4 | 63 | 2 1/2 | T45 | 3 | 4148300881 |
| 210 | 8 1/4 | 66 | 2 3/5 | T45 | 3.3 | 4148300882 |
| T51 Coupling Sleeve | ||||||
| 225 | 8 6/7 | 71 | 2 4/5 | T51 | 4.6 | 4148300961 |
| 225 | 8 6/7 | 76 | 3 | T51 | 4.8 | 4148300962 |
| 235 | 9 1/4 | 72 | 2 5/6 | T51 | 4.7 | 4148300963 |
| 235 | 9 1/4 | 77 | 3 | T51 | 4.9 | 4148300964 |
