Home ProductsButton Drill Bit

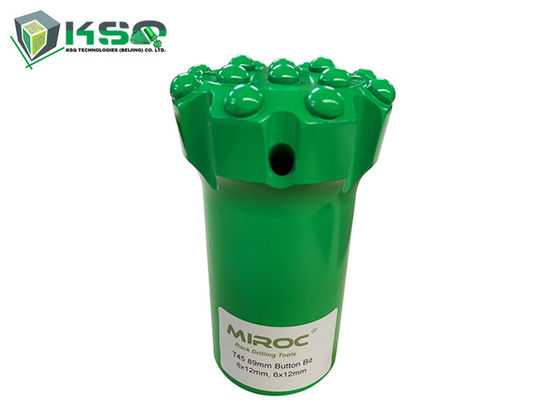

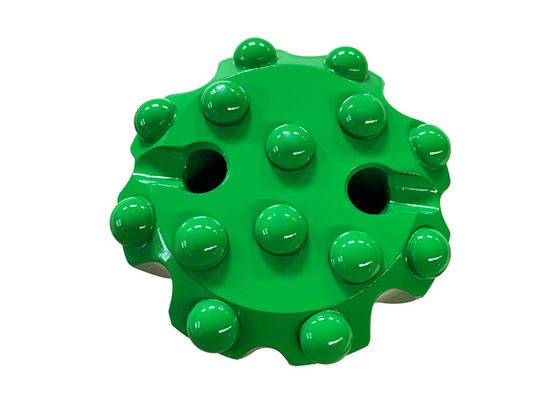

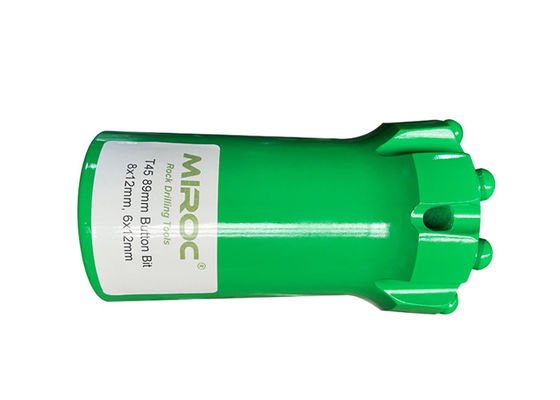

T45 Threaded Diameter 89mm Button Drill Bit For Top Hammer Drills

T45 Threaded Diameter 89mm Button Drill Bit For Top Hammer Drills

  • T45 Threaded Diameter 89mm Button Drill Bit For Top Hammer Drills
  • T45 Threaded Diameter 89mm Button Drill Bit For Top Hammer Drills
  • T45 Threaded Diameter 89mm Button Drill Bit For Top Hammer Drills
T45 Threaded Diameter 89mm Button Drill Bit For Top Hammer Drills
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: T45 89mm Thread Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Nogotiation
Packaging Details: customised
Delivery Time: 15-20 days
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Place Of Origin: China Type: Drill Bit
Processing Type: Forging Diameter: 70mm To 102mm
Brand Name: MIROC Material: Tungsten Carbide And Steel
Button Type: Spherical, Ballistic, Conical Corlor: Customised
Button Numbers: 10 To 14 Buttons Face Type: Flat, Drop Center
Flushing Hole: 2 To 5 Holes Product Name: T45 Threaded Button Bit
High Light:

t45 button drill bit

,

top hammer button drill bit

,

89mm button bit

T45 Threaded Diameter 89mm Button Drill Bit for Top Hammer Drills



Product Description

KSQ With the top quality of alloy steels and the best carbides made in China, we produce all threaded button bits by hot press technology.

A comprehensive range of various button bits shown as below:

Thread sizes: R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST60, GT60;
Head diameters: 33mm ~ 152mm;
Face designs; flat face, drop center, uni-face;
Skirt designs: normal, retract, straigh retract

T45 Threaded Diameter 89mm Button Drill Bit For Top Hammer Drills 0



Specification:

T45 Threaded Button Bit Bit Dia. Buttons and Size (mm) Flushing Hole Weight Product Code
mm inch Front Gauge Front Side kg
Button Bit, Drop Center
Spherical Buttons, B10XX
70 2 3/4 3x11,1x19 6x11 3 - 2.2 B1070-T45-S
76 3 3x11,1x11 6x13 3 - 2.4 B1076-T45-S
Button Bit, Drop Center
Spherical Buttons, B11XX
89 3 1/2 3x11, 2x11 6x13 3 1 4.1 B1189-T45-S
102 4 3x13, 2x13 6x14 3 1 4.5 B11102-T45-S
Button Bit
Spherical Buttons, B12XX
70 2 3/4 4x11 8x11 2 - 2.3 B1270-T45-S
76 3 4x11 8x11 2 - 2.6 B1276-T45-S
89 3 1/2 4x13 8x13 2 - 4.6 B1289-T45-S
Button Bit, Drop Center
Spherical Buttons, B13XX
70 2 3/4 4x10, 1x10 8x11 4 - 2.2 B1370-T45-S
76 3 4x11, 1x11 8x12 4 - 2.6 B1376-T45-S
89 3 1/2 4x11, 1x11 8x12 4 - 4.6 B1389-T45-S-1
89 3 1/2 4x13, 1x13 8x13 4 - 4.6 B1389-T45-S-2
102 4 4x13, 1x13 8x14 4 - 4.5 B13102-T45-S
Button Bit
Spherical Buttons, B14XX
89 3 1/2 6x11 8x12 2 - 4.6 B1489-T45-S
102 4 6x13 8x16 2 1 5 B14102-T45-S-1
Button Bit, Drop Center
Spherical Buttons, B14XX
102 4 4x13, 2x13 8x13 4 1 4.5 B14102-T45-S-2
Button Bit, Drop Center
Ballistic Buttons, B10XX
70 2 3/4 3x11, 1x19 6x11 3 - 2.2 B1070-T45-B
76 3 3x11, 1x11 6x13 3 1 2.4 B1076-T45-B
Button Bit, Drop Center
Ballistic Buttons, B11XX
89 3 1/2 3x11, 2x11 6x13 3 1 4.1 B1189-T45-B
Button Bit
Ballistic Buttons, B12XX
76 3 4x11 8x11 2 - 2.6 B1276-T45-B
89 3 1/2 4x13 8x13 2 - 4.6 B1289-T45-B
Button Bit
Ballistic Buttons, B13XX
76 3 5x11 8x12 2 1 2.6 B1376-T45-B-1
Button Bit, Drop Center
Ballistic Buttons, B13XX
70 2 3/4 4x10, 1x10 8x11 4 - 2.2 B1370-T45-B
76 3 4x11, 1x11 8x11 4 - 2.6 B1376-T45-B-2
76 3 4x11, 1x11 8x12 4 - 2.6 B1376-T45-B-3
89 3 1/2 4x11, 1x11 8x12 4 - 4.6 B1389-T45-B-1
89 3 1/2 4x13, 1x13 8x13 4 - 4.6 B1389-T45-B-2
Button Bit
Ballistic Buttons, B14XX
89 3 1/2 6x11 8x12 2 - 4.6 B1489-T45-B



T45 Threaded Diameter 89mm Button Drill Bit For Top Hammer Drills 1
