76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation

76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation

  • 76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation
  • 76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation
  • 76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation
  • 76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation
  • 76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation
  • 76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation
76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: Exploration Drilling Tools
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10 - 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Type: NQ Diamond Non-Core Bit Material: Diamond And Steel
Color: Green, Blue, Golden, Orange Etc. Processing Type: Forging
Model: AQ BQ NQ HQ PQ Application: Geological Exploration
High Light:

76mm diamond hole drill bits

,

nq diamond hole drill bits

,

non core diamond hole drill bits

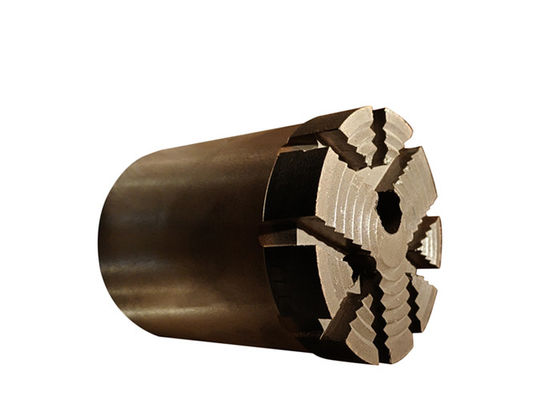

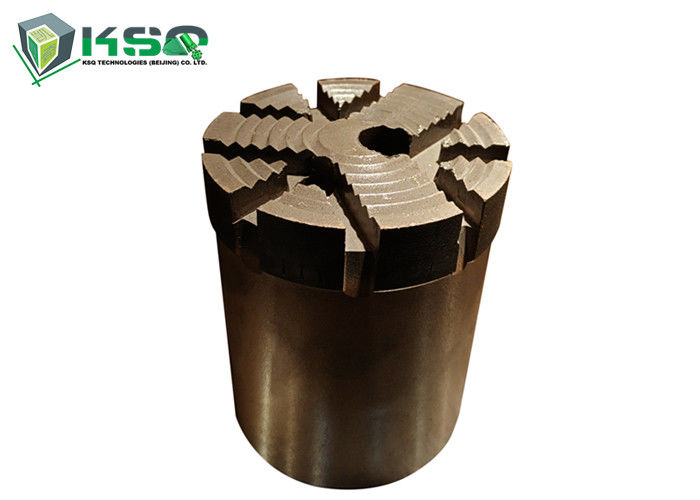

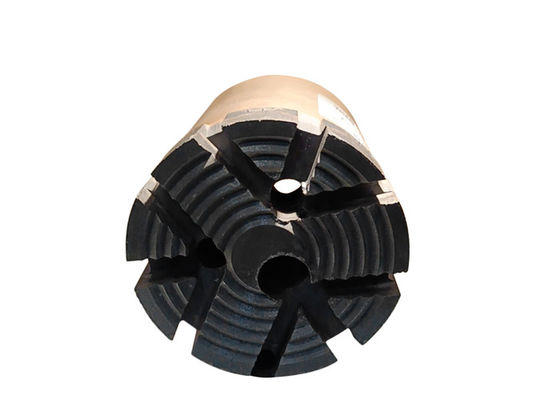

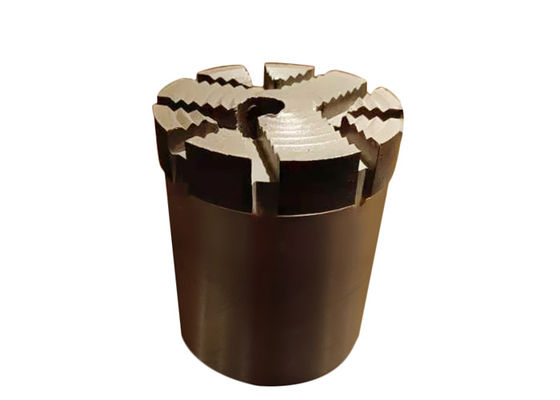

76mm NQ Diamond Non-Core Bit For Medium Hard to hard formation

NQ Non core Bit,
Medium Hard to hard formation,
NQ Rod Box Thread,
size :76mm, Outer Dia,
Diamond size : 20-25 SPC,
4 fluids waterways, concave Type

Description:
Impregnated diamond bits have the widest range of application. They are the most commonly useful bits from medium to super hard formations in the mineral exploration industry. the Hardness and abrasive of the rock formation are the key factors to determine the diamond specifications, concentration and matrix hardness.
Overseas market standard:
Series Q: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
Series T2: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
Series T6: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101, T6S 116
Series T: T36, T46, T56, T66, T76, T86
Series Z: Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
Series B: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
Series WF: HWF, PWF, SWF, UWF, ZWF
Series WT: RWT, EWT, AWT, BWT, NWT, HWT
Series WM: EWM, AWM, BWM, NWM, HWM
Series WG: EWG, AWG, BWG, NWG, HWG
Others: NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 49/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101

Diamond bits Crown Shape

Diamond bits Crown Shape and Applications
76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation 0 Flat

applicable to drilling different levels of hardness or abrasive formation, generally for
single and dual tube drill bits.

76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation 1 Semi-round

good distribution of the diamond at bit face, adapt to a small broken or loose formation, applicable to drilling medium-hard and hard formation.

76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation 2 Ladder applicable to drilling medium-hard, broken or interbedded formations, hole deviation can be prevented.
76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation 3 Serrated applicable to drilling hard and dense formation, Enhancing drilling rate.
76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation 4 Ladder serrated applicable to drilling medium-hard, have good stability during the drilling.
76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation 5 Gear type applicable to harder or dense formations, enhancing drilling rate.
76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation 6 Bottom jetting

bottom jetting applicable to drilling sedimentary or metamorphic formations which containing more power, high coring recovery rate and avoid excessive washout of core .


Toothed bits can get higher drilling efficiency when it is drilling at dense or abrasive stratum with lower drilling speed and pressure. It was especially effective at coal formation, using toothed bits can get better
water flowing and drilling footage effect. Nowadays, Impregnated diamond bits have been widely used in wire-line drilling series.
Application
Geological exploration drilling.

Specifications of Diamond bits & reamers

Overseas Standard Q Series AQ BQ NQ PQ BQ3 NQ3 HQ3 PQ3 AW BW NW HW PW
Others ATW BTW NTW



Photos:
76mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation 776mm Nq Non Core Diamond Hole Drill Bits For Medium Hard To Hard Formation 8
