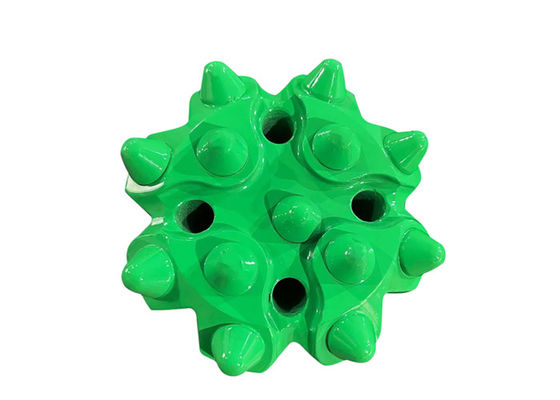

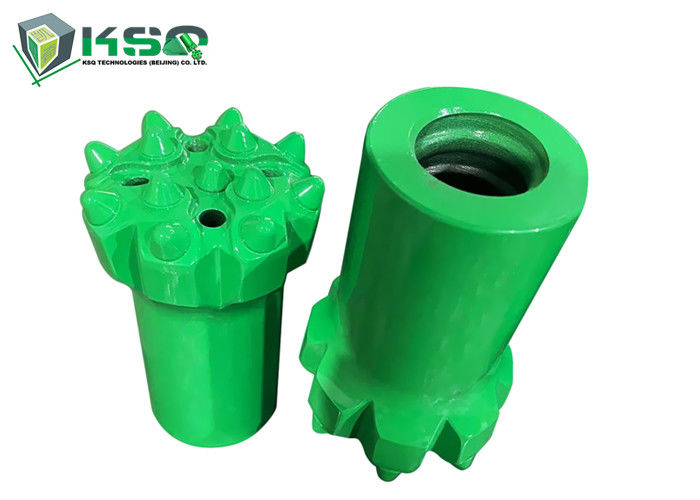

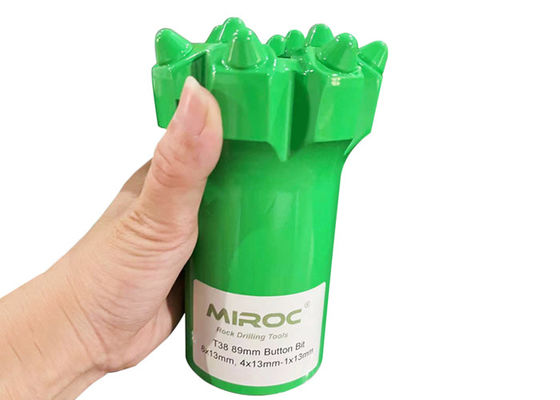

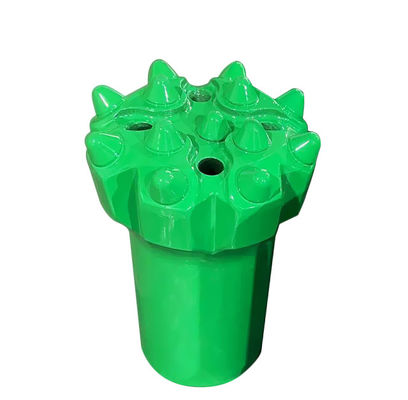

Name: 89mm Drop Center Conical T38 Button Drill Bit Top Hammer Tools
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T38 76mm Thread Button Bit
Price: 150.00 USD
Availability: InStock

Home Products Button Drill Bit

89mm Drop Center Conical T38 Button Drill Bit Top Hammer Tools

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Certification:	ISO
Model Number:	T38 76mm Thread Button Bit

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Nogotiation
Packaging Details:	customised
Delivery Time:	15-20 days
Supply Ability:	20000pcs per month

Contact Now

Detailed Product Description

Name:	T38 Button Bit	Type:	Drill Bit
Processing Type:	Forging	Diameter:	64mm To 89mm
Brand Name:	MIROC	Material:	Tungsten Carbide And Steel
Button Type:	Spherical, Ballistic, Conical	Corlor:	Customised
Button Numbers:	9 To 14 Buttons	Face Type:	Flat, Drop Center
Flushing Hole:	2 Or 3 Holes
Highlight:	89mm button drill bit , t38 button drill bit , top hammer conical drill button bit

Top Hammer Tools 89mm Drop Center T38 Conical Button Drill Bit

Product Description

KSQ With the top quality of alloy steels and the best carbides made in China, we produce all threaded button bits by hot press technology.

A comprehensive range of various button bits shown as below:

Thread sizes: R25, R28, R32, R35, R38, T38, T45, T51, ST58, ST60, GT60;
Head diameters: 33mm ~ 152mm;
Face designs; flat face, drop center, uni-face;
Skirt designs: normal, retract, straigh retract

Specification:

T38 Threaded Button Bit	Bit Dia.		Buttons and Size (mm)		Flushing Hole		Weight
T38 Threaded Button Bit	mm	inch	Front	Gauge	Front	Side	kg
Button Bit Spherical Buttons, B9XX	64	2 1/2	3x11	6x12	3	-	1.8
Button Bit, Drop Center Spherical Buttons, B10XX	64	2 1/2	3x10, 1x10	6x11	3	-	1.7
	70	2 3/4	3x10, 1x10	6x12	3	-	1.8
	76	3	3x11, 1x11	6x12	3	1	2.6
Button Bit, Drop Center Spherical Buttons, B11XX	89	3 1/2	3x11, 2x11	6x13	3	1	3.3
Button Bit Spherical Buttons, B12XX	64	2 1/2	4x10	8x10	2	-	1.6
	70	2 3/4	4x11	8x11	2	-	1.9
	76	3	4x11	8x11	2	-	2.4
	89	3 1/2	4x13	8x13	2	-	3.3
Button Bit Spherical Buttons, B13XX	76	3	5x11	8x13	2	1	2.4
Button Bit Spherical Buttons, B13XX	89	3 1/2	5x13	8x13	2	-	3.3
Button Bit, Drop Center Spherical Buttons, B13XX	70	2 3/4	4x10, 1x10	8x11	4	-	1.9
	76	3	4x11, 1x11	8x12	4	-	2.6
	76	3	4x11, 1x11	8x11	4	-	2.6
	89	3 1/2	4x11, 1x11	8x13	4	-	3.3
	89	3 1/2	4x13, 1x13	8x13	4	-	3.3
Button Bit Spherical Buttons, B14XX	89	3 1/2	6x11	8x12	2	-	3.3
Button Bit Ballistic Buttons, B9XX	64	2 1/2	3x11	6x12	3	-	1.8
Button Bit, Drop Center Ballistic Buttons, B10XX	64	2 1/2	3x10, 1x10	6x11	3	-	1.7
Button Bit, Drop Center Ballistic Buttons, B10XX	76	3	3x11, 1x11	6x12	3	1	2.6
Button Bit, Drop Center Ballistic Buttons, B11XX	89	3 1/2	3x11, 2x11	6x13	3	1	3.3
Button Bit Ballistic Buttons, B12XX	64	2 1/2	4x10	8x10	2	-	1.6
	70	2 3/4	4x11	8x11	2	-	1.9
	76	3	4x11	8x11	2	-	2.4
Button Bit Ballistic Buttons, B13XX	76	3	5x11	8x13	2	1	2.4
Button Bit Ballistic Buttons, B13XX	89	3 1/2	5x13	8x13	2	-	3.3
Button Bit, Drop Center Ballistic Buttons, B13XX	70	2 3/4	4x10, 1x10	8x11	4	-	1.9
	76	3	4x11, 1x11	8x12	4	-	2.6
	76	3	4x11, 1x11	8x11	4	-	2.6
	89	3 1/2	4x11, 1x11	8x13	4	-	3.3
	89	3 1/2	4x13, 1x13	8x13	4	-	3.3
Button Bit Ballistic Buttons, B14XX	89	3 1/2	6x11	8x12	2	-	3.3

89mm Drop Center Conical T38 Button Drill Bit Top Hammer Tools 0

Rock Drilling Tools Brand MIROC®

The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.

MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.

MIROC® Rock Drilling Tools include:

Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammer
PDC Bit
Tricone Bits
