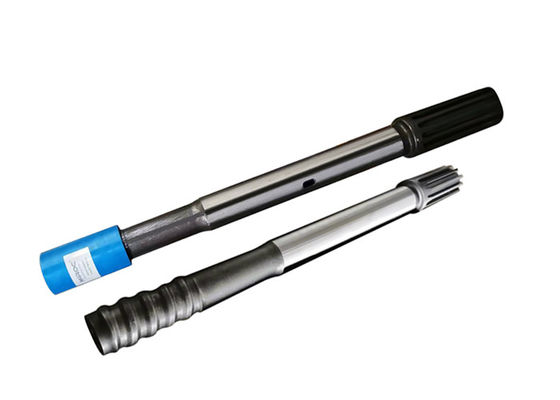

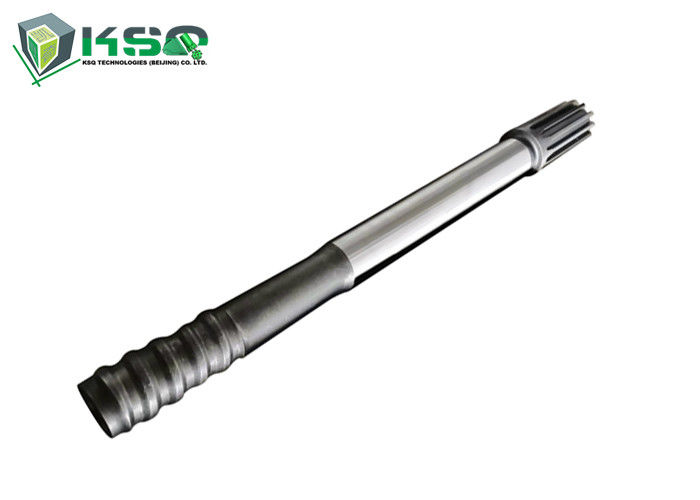

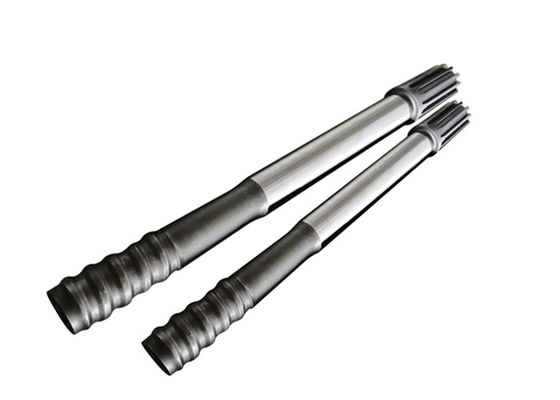

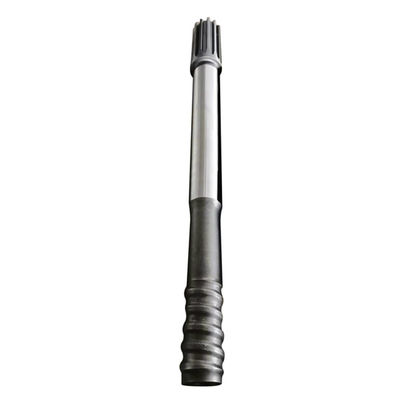

T-WiZ60 Shank Adapter Epiroc COP 3060MEX Length 840mm For Drifting Drilling

T-WiZ60 Shank Adapter Epiroc COP 3060MEX Length 840mm For Drifting Drilling

T-WiZ60 Shank Adapter Epiroc COP 3060MEX Length 840mm For Drifting Drilling
T-WiZ60 Shank Adapter Epiroc COP 3060MEX Length 840mm For Drifting Drilling
T-WiZ60 Shank Adapter Epiroc COP 3060MEX Length 840mm For Drifting Drilling
Product Details:
Place of Origin: China
Brand Name: MIROC Shank Adapter
Certification: ISO
Model Number: Shank Adapter
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product: COP 3060MEX Shank Adapter Diameter: 60mm
Length: 840mm Thread: T-WiZ60
Application: Drifting Drilling, Bench Drilling
High Light:

drifting drilling shank adapter

,

cop 3060mex shank adapter

,

length 840mm shank adapter

T-WiZ60 Shank Adapter Epiroc COP 3060MEX Length 840mm For Drifting Drilling



Our shank adaptors ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment.


Different shank adapters are available, like Atlas Copco, Tamrock, Ingersoll Rand,etc. Also for the same drill machine, due to different applications, the shank adapters can be different length and different threads.


T-WiZ60 drifting shank adapter for tunneling are used for transmitting power from the rock drill to the drill stems. Generally there are male threaded shank dapters and femal threaded shank adapters. Male shank adapters are more popular than female shank adapter. Male shank adapters are generally suited for drifting, tunneling and extension applications where high stresses are present. Female shank adapters are used when the drilling space is limited. Top quality of alloy steels, CNC machining and advanced heat threatment ensure our reliable quality,



Other Shank Adapter Specification

Furukawa SHANK ADAPTER
Furukawa HD 90 Thread Diameter Length Flushing Weight Part Number
mm mm kg
R38 40 515 - 4.3 414832528
Furukawa HD 190 Thread Diameter Length Flushing Weight Part Number
mm mm kg
R38 40 500 - 4.5 414832529
T38 40 500 - 4.5 414832530
Furukawa HD 300 Thread Diameter Length Flushing Weight Part Number
mm mm kg
T38 45 654 16 6.0 414832531
T45 45 654 16 6.7 414832532
Furukawa HD 609 Thread Diameter Length Flushing Weight Part Number
mm mm kg
T38 45 690 - 6.3 414832533
T45 45 690 - 6.4 414832534
Furukawa HD 612 RP Thread Diameter Length Flushing Weight Part Number
mm mm kg
T45 51 884 - 11.2 414832535
Furukawa PD200 Thread Diameter Length Flushing Weight Part Number
mm mm kg
T38 45 485 14.3 5.0 414832536
T45 45 485 14.3 5.4 414832537



Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.



Competitive Advantage

  • High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
  • The accurate dimension of thread perfectly matches the rock drill
  • Work reliably and very cost-effective

    T-WiZ60 Shank Adapter Epiroc COP 3060MEX, 840mm long, dia 60mm

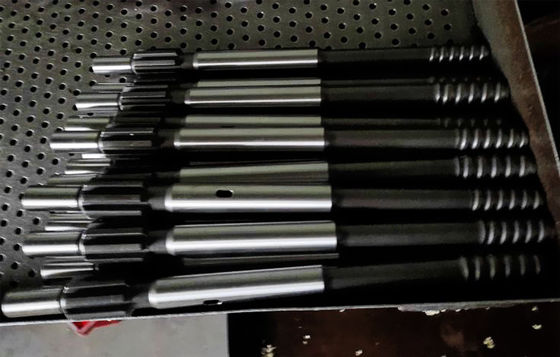

T-WiZ60 Shank Adapter Epiroc COP 3060MEX Length 840mm For Drifting Drilling 0

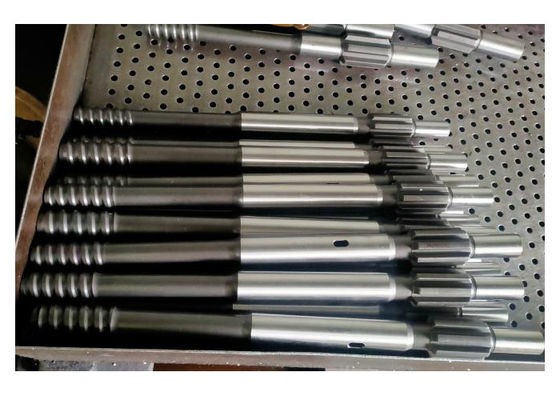

T-WiZ60 Shank Adapter Epiroc COP 3060MEX Length 840mm For Drifting Drilling 1



Shank adapter order information:

Rock Drill Type + Thread + Diameter + Length

Example:

(1) Rock drill Type: Atlas Copco COP1440, COP1550, COP1838

(2) Thread: R32, T38, T45, T51

(3) Diameter: 52mm

(4) Length: 525mm

T-WiZ60 Shank Adapter Epiroc COP 3060MEX Length 840mm For Drifting Drilling 2T-WiZ60 Shank Adapter Epiroc COP 3060MEX Length 840mm For Drifting Drilling 3T-WiZ60 Shank Adapter Epiroc COP 3060MEX Length 840mm For Drifting Drilling 4
