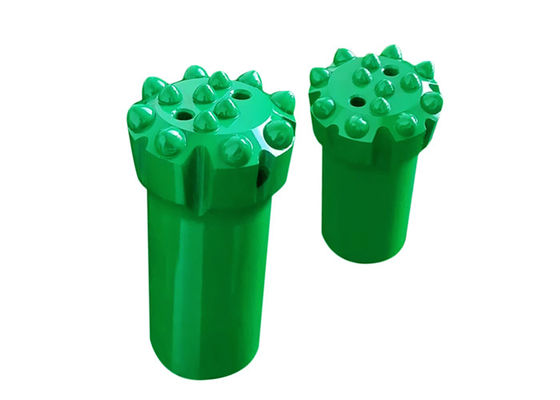

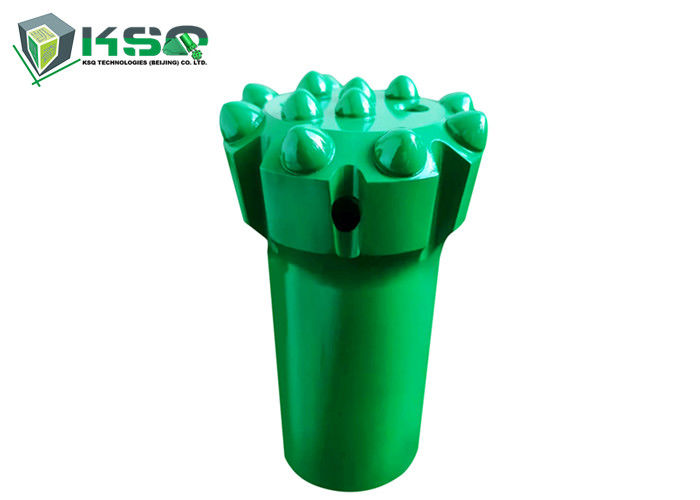

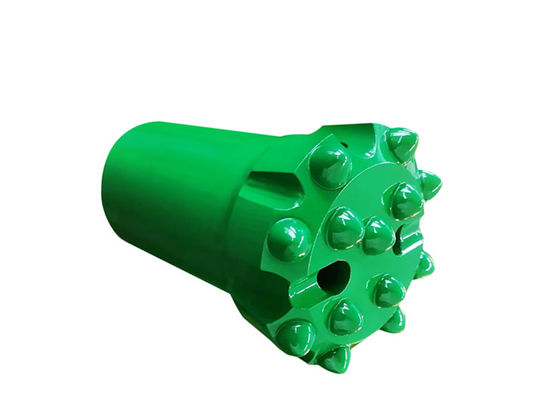

T38 76mm Bench Drilling Button Bit Tungsten Carbide

T38 76mm Bench Drilling Button Bit Tungsten Carbide

T38 76mm Bench Drilling Button Bit Tungsten Carbide
T38 76mm Bench Drilling Button Bit Tungsten Carbide
T38 76mm Bench Drilling Button Bit Tungsten Carbide
Product Details:
Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: T38 76mm
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export packing or as requirements
Delivery Time: 15-20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000pcs per month
Contact Now
Detailed Product Description
Standard: GB Surface Treatment: Spray-Paint
Material: Tungsten Carbide,Alloy Steel Drilling Hole Diameter: 76mm
Water Hole: 3 Color: Customized
Face: Flat;Convex;Concave Applicable Industries: Construction Works , Energy & Mining,
High Light:

bench drilling button bit tungsten carbide

,

t38 drilling button bit

,

rock button bits 76mm

T38 76mm Bench Drilling Tungsten Carbide Drill Button Bit



Application

The thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.



Characteristics
1. Thread connection: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60
2. Alloy steel:42CrMo
3. Suitable carbide tips:YK05
4. Technology:hot-pressing or welding
Before Official Order, please confirm below informations:
1. Thread Type
2. Standard or Retrac
3. Bit button shape (tip shape)--Spherical or Ballistic
4. Bit face shape--Drop Center, Flat Face, Convex, Concave, etc...



T38 Thread Button Bit Specification

Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
Spherical
64 2 1/2 3×11 6×12 35° 3 - 1.8 4148300705
64 2 1/2 4×10 8×10 40° 2 - 1.6 4148300706
64 2 1/2 3×10, 1×10 6×11 35° 3 - 1.7 4148300707
70 2 3/4 4×11 8×11 40° 2 - 1.9 4148300708
70 2 3/4 4×10, 1×10 8×11 30° 4 - 1.9 4148300709
70 2 3/4 3×10, 1×10 6×12 35° 3 - 1.8 4148300710
76 3 4×11 8×11 40° 2 - 2.4 4148300711
76 3 5×11 8×13 35° 2 1 2.4 4148300712
76 3 3×11, 1×11 6×12 35° 3 1 2.6 4148300713
76 3 4×11, 1×11 8×12 35° 4 - 2.6 4148300714
76 3 4×11, 1×11 8×11 40° 4 - 2.6 4148300715
89 3 1/2 4×13 8×13 40° 2 - 3.3 4148300716
89 3 1/2 5×13 8×13 35° 2 - 3.3 4148300717
89 3 1/2 6×11 8×12 35° 2 - 3.3 4148300718
89 3 1/2 3×11, 2×11 6×13 35° 3 1 3.3 4148300719
89 3 1/2 4×11, 1×11 8×13 35° 4 - 3.3 4148300720
89 3 1/2 4×13, 1×13 8×13 35° 4 - 3.3 4148300721
