| Place of Origin: | China |
| Brand Name: | MIROC Rock Drilling Tools |
| Certification: | API |
| Model Number: | DTH Drill Bit |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Standard export packaging or customized |
| Delivery Time: | 10-15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 pcs per month |
| Material: | High Manganese Steel, Tungsten Carbide Buttons | Application: | Coal Mining, Qaurry Drilling, DTH Drilling |
|---|---|---|---|
| Usage: | Well Drilling | Color: | Green, Blackm Yellow Or Customized |
| Hammer Size: | 2" | Bit Shank: | BR2 |
| Bit Diameter: | 70-95mm | Button Tips Shapes: | Sperical, Ballistic, Parabolic, Sharp, Flat |
| Bit Face Selections: | Drop Center, Concave, Convex, Double Gauge, Flat Face | Processing Type: | Forging |
| Advantages: | High Performance, High Wear Resistance, Long Working Life, High Quality, Etc. | ||
| High Light: | 76mm dth drill bit,tungsten carbide buttons dth drill bit,high manganese steel button drill bit |
||

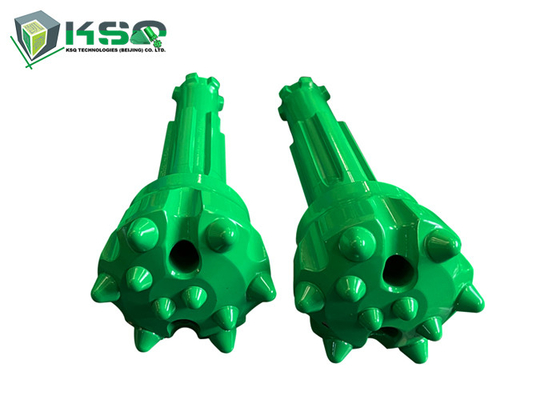

DTH Drill Bit BR2
Diameter: 76mm
High Manganese Steel, Tungsten Carbide Buttons
Product Description:
For efficient down-the-hole (DTH) drilling, KSQ offers high performance drilling tools to increase your productivity, reduced carbon dioxide emissions and reduce your total operation cost. KSQ develops tools in close cooperation with the customers to maximize performance and optimize user experience.
KSQ DTH Drill Bit is made of high quality steel and hard alloy as the raw material. After a special heat treatment process, the hardness of the bit is reached under the rock excavation, the energy loss in the transmission process is reduced, the stress on the tooth is uniform, not easy to fall off the teeth, so the impact of energy-intensive rock to achieve high-efficiency drive.
Specifications of the DTH bits BR2-76mm:
| No. | Head Diameter, (mm) | Part No. | Gauge Buttons | Front Buttons (Flat Face) | Front Buttons (Convex Face) | Button angle | Flushing Holes | Weight, kg |
| 1 | 76 | BR2-76FF6 | 6X12 | 5X10 | / | 38 | 2X12 | 2.3 |
| 2 | 76 | BR2-76CV6 | 6X13 | 2X10 | 2X11 | 38 | 2X12 | 2.3 |
Specifications of the DTH bits BR2 (other diameters):
| No. | Head Diameter, (mm) | Part No. | Gauge Buttons | Front Buttons (Flat Face) | Front Buttons (Convex face) | Button Angle | Flushing Holes | Weight, kg |
|
1 |
80 | BR2-80CV6 | 6X13 | 2X10 | 3X11 | 38 | 2X12 | 2.4 |
| 2 | 90 | BR2-90CV6 | 6X13 | 2X11 | 4X11 | 38 | 2X12 | 2.6 |
| 3 | 90 | BR2-90FF6 | 6X13 | 6X10 | / | 38 | 2X12 | 2.6 |
| 4 | 95 | BR2-95CC8 | 8X12 | 4X12 | / | 38 | 2X12 | 2.8 |
KSQ has an extensive range of products to suit all types of ground conditions. Choosing between the large number of designs of your DTH drill bits can be a challenge but with KSQ's knowledge and experience, we can help you choose the right design for optimal accuracy and penetration. Whether you want a hammer with or without foot valve, or a fast or straight drilling bit, KSQ works in partnership with you to find the best fit.
