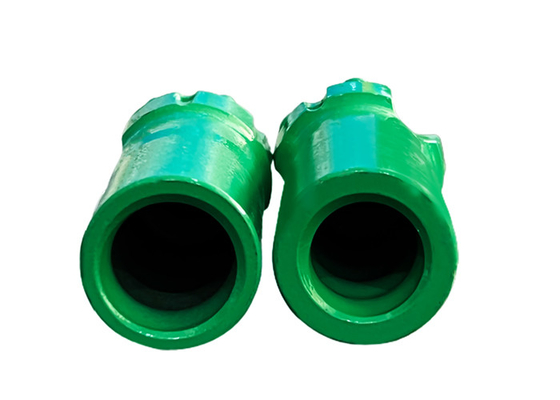

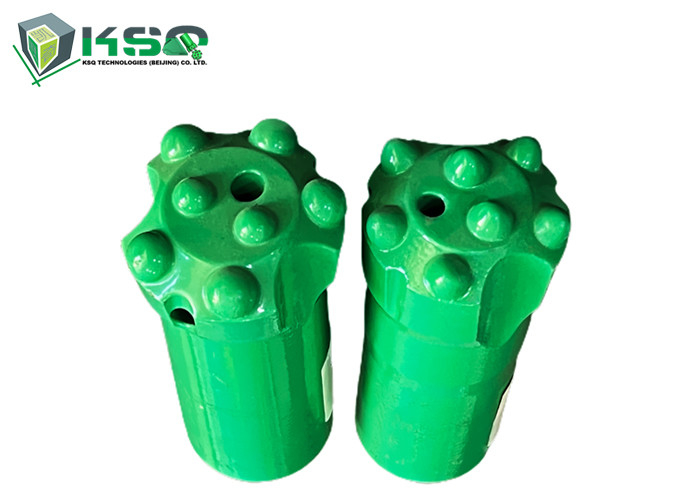

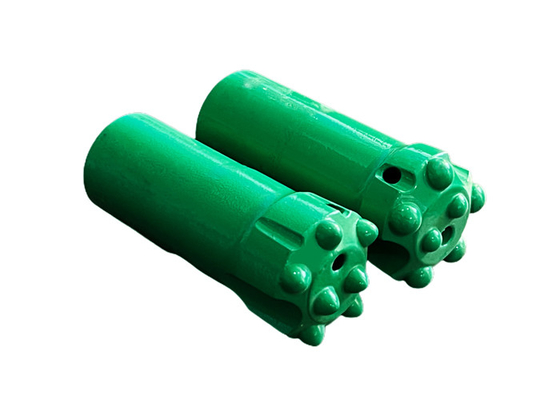

R28 Dia 37-48mm Carbide Button Bits Ballistic Rock Tools

R28 Dia 37-48mm Carbide Button Bits Ballistic Rock Tools

R28 Dia 37-48mm Carbide Button Bits Ballistic Rock Tools
R28 Dia 37-48mm Carbide Button Bits Ballistic Rock Tools
R28 Dia 37-48mm Carbide Button Bits Ballistic Rock Tools
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: R28
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product Name: Thread Drilling Bit Color: Green & Others
Face Design: Flat;Convex;Concave Inserts Design: Spherical; Ballistic; Parabolic
Sample: Can Be Customized According To Customer Requirement. Quality: Excellent
High Light:

37mm button bits rock drilling

,

48mm carbide button bits

,

ballistic carbide button bits

R28 Dia 37-48mm Ballistic Buttons Rock Tools Button Drill Bit



Features of our Threaded Button Bits:
Be produced from premium quality Nickel-alloy steel or Molybdenum-ally steel for increased durability and wear characteristics
Specific heat treatment standards and strict production process ensure consistence performance



Type Thread Button Bit
Material tungsten carbide
Use Ore Mining, quarry,mining,blasting,construction,open bit etc.
Advantages high quality and factory prices
Boby type Normal type or retrac type
Thread R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68
Tungsten carbide Spherical, ballistic,Conical,Hemispherical
Fact type Drop Center, Flat Face, Convex, Concave, etc
Color According to your requirements



• Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock

Color: Green or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: R28 Button Bit Ballistic Buttons



Applications

• Underground mining
• Tunneling



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Specification

Product Code and Brief Description

Angle

Front Flushing

Holes

Side Flushing

Holes

Weight

(kg)

B737-R28-B, R28 Button Bit, Ballistic Buttons

30°

1

1

0.5

B638-R28-B, R28 Button Bit, Ballistic Buttons

30°

1

2

0.6

B738-R28-B, R28 Button Bit, Ballistic Buttons

30°

1

1

0.6

B741-R28-B, R28 Button Bit, Ballistic Buttons

35°

1

1

0.7

B743-R28-B, R28 Button Bit, Ballistic Buttons

35°

1

2

0.8

B745-R28-B, R28 Button Bit, Ballistic Buttons

30°

1

2

0.9

B945-R28-B, R28 Button Bit, Ballistic Buttons

35°

1

3

0.9

B748-R28-B, R28 Button Bit, Ballistic Buttons

30°

1

2

1.0

B948-R28-B, R28 Button Bit, Ballistic Buttons

35°

1

3

1.0

R28 Dia 37-48mm Carbide Button Bits Ballistic Rock Tools 0R28 Dia 37-48mm Carbide Button Bits Ballistic Rock Tools 1R28 Dia 37-48mm Carbide Button Bits Ballistic Rock Tools 2
