R32 2 1/2Inch Ballistic Underground Mining Tools Button Drill Bit

R32 2 1/2Inch Ballistic Underground Mining Tools Button Drill Bit

R32 2 1/2Inch Ballistic Underground Mining Tools Button Drill Bit
R32 2 1/2Inch Ballistic Underground Mining Tools Button Drill Bit
R32 2 1/2Inch Ballistic Underground Mining Tools Button Drill Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: 4148300506-607
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Names: Threaded Button Bits, Material: Alloy Steel Bar 45CrNiMoV And Tungsten Carbide Tips YK05
Technology: Heat Treatment Application: Hard Rock Drilling, Mining, Quarrying, Stoning, Construction
Colour: Gold, Black, Red, Blue, Yellow On Customer Requirements Body Type: Normal Type And Retract Type
Face Shape: Flat Shape And Drop-center Shape Button Bit Shape: Spherical And Ballistic
High Light:

hardened steel drill bits

,

milling drill bits

R32 2 1/2Inch Ballistic Underground Mining Tools Button Drill Bit



Description

We are one of the professional manufacturers & suppliers of ballistic button bit, rock drilling tools, tungsten carbide button bits, DTH bits, DTH hammers, rock tools, coal mining tools, mining rock tools, quarrying tools, machine tools, DTH hammers & bits, retrac button bits, thread button bits, tapered button bits, chisel bits, cross bits, thread cross bits, tapered cross bits, shank adapter, shank adaptors, thread bits, taper bits, drill rod, drill bits, rock bits, mining bits, integral drill steel, tapered drill rods, thread drill rods, M-F (male-female) rods, extension rods, integral drill rods, pneumatic drill rods, self-drilling anchor, drifter rods, hollow drill steels, shoulder drive drilling, drifting and tunneling, bench and production drilling, furnace tapping tools, down the hole drilling, shield driving & TBM cutters, coal cutter pick-shaped bits.



Type Thread Button Bit
Material tungsten carbide
Use Ore Mining, quarry,mining,blasting,construction,open bit etc.
Advantages high quality and factory prices
Boby type Normal type or retrac type
Thread R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68
Tungsten carbide Spherical, ballistic,Conical,Hemispherical
Fact type Drop Center, Flat Face, Convex, Concave, etc
Color According to your requirements



This type of bit is a high speed drilling bit for soft to medium rock formations (between 50 Mpa to 150 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.

• Widely used drifting and tunneling
• Bit face design is ideal for soft to medium rock formations

Color: Green or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: R32 Button Bit Ballistic Buttons



Specification

R32 Button Bit
Diameter Buttons and Size (mm) Flushing hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
Spherical
41 1 5/8 2×9 4×9 35° 1 1 0.6 4148300487
41 1 5/8 2×8 5×9 35° 1 1 0.7 4148300488
43 1 5/7 2×9 5×9 35° 1 2 0.7 4148300489
43 1 5/7 2×9 5×10 35° 1 1 0.7 4148300490
43 1 5/7 2×9 6×9 40° 2 - 0.7 4148300491
45 1 7/9 2×9 5×11 30° 1 1 0.8 4148300492
45 1 7/9 2×9 6×10 35° 2 - 0.8 4148300493
45 1 7/9 3×8 6×10 30° 3 - 0.8 4148300494
48 1 8/9 2×9 5×11 35° 1 1 0.9 4148300495
48 1 8/9 2×9 6×10 40° 2 - 0.9 4148300496
48 1 8/9 3×8 6×10 40° 3 - 0.9 4148300497
48 1 8/9 3×9 6×10 30° 3 - 0.9 4148300498
51 2 2×10 5×11 35° 1 1 1 4148300499
51 2 2×10 6×10 40° 2 - 1 4148300500
51 2 3×9 6×10 35° 3 - 1 4148300501
57 2 1/4 3×9 6×11 35° 3 - 1.3 4148300502
64 2 1/2 3×10, 1×10 6×11 35° 3 - 1.6 4148300503
64 2 1/2 4×10 8×10 40° 2 - 1.6 4148300504
76 3 4×11 8×11 40° 2 - 2.6 4148300505
Ballistic
41 1 5/8 2×8 5×9 40° 1 1 0.7 4148300506
43 1 5/7 2×9 5×9 40° 1 2 0.7 4148300507
43 1 5/7 2×9 6×9 40° 2 - 0.7 4148300508
43 1 5/7 3×8 6×8 40° 3 1 0.7 4148300509
45 1 7/9 2×9 5×11 30° 1 2 0.8 4148300510
45 1 7/9 2×9 6×9 40° 2 2 0.8 4148300511
45 1 7/9 3×8 6×9 40° 3 1 0.8 4148300512
48 1 8/9 2×9 5×11 35° 1 1 0.9 4148300513
48 1 8/9 2×9 6×10 40° 2 - 0.9 4148300514
48 1 8/9 3×8 6×10 40° 3 - 0.9 4148300515
51 2 2×10 6×10 40° 2 - 1 4148300516
51 2 3×9 6×10 40° 3 1 1 4148300517
54 2 1/8 3×9 6×10 40° 3 1 1 4148300518
57 2 1/4 3×9 6×11 35° 3 - 1.3 4148300519
64 2 1/2 4×10 8×10 40° 2 - 1.6 4148300520

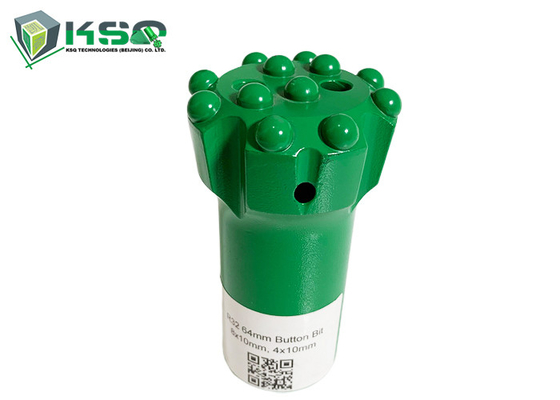

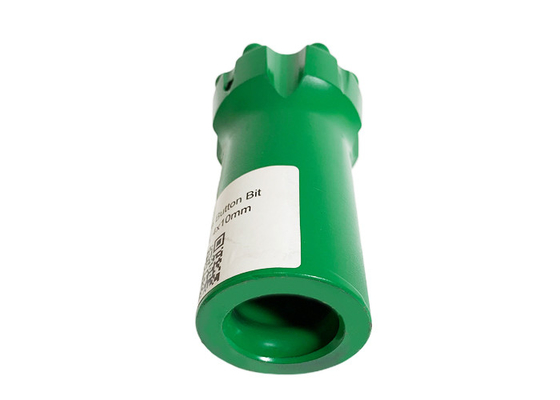

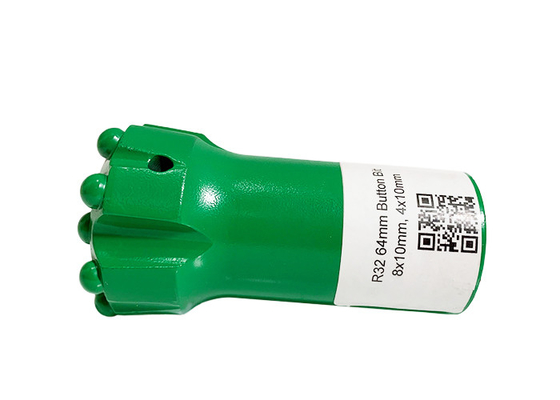

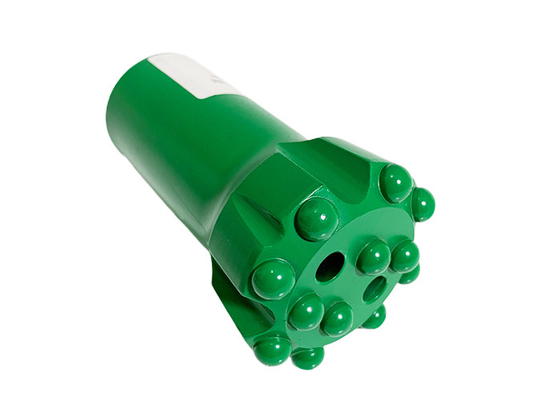

R32 2 1/2Inch Ballistic Underground Mining Tools Button Drill Bit 0R32 2 1/2Inch Ballistic Underground Mining Tools Button Drill Bit 1

R32 2 1/2Inch Ballistic Underground Mining Tools Button Drill Bit 2R32 2 1/2Inch Ballistic Underground Mining Tools Button Drill Bit 3R32 2 1/2Inch Ballistic Underground Mining Tools Button Drill Bit 4
