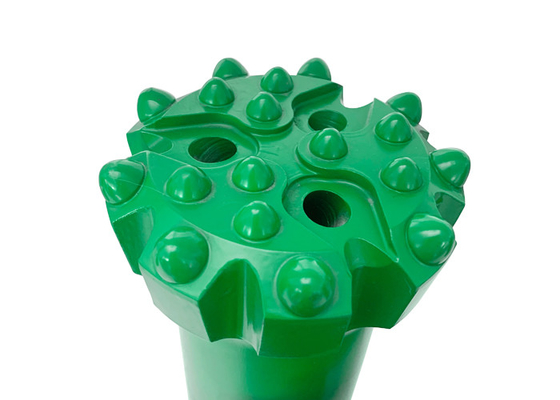

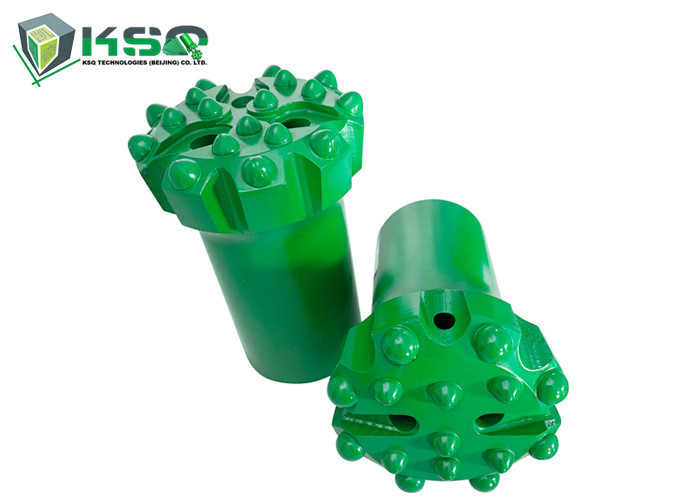

Name: T45 70mm 76mm Spherical Threaded Button Rock Drill Bits
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: T45 70mm/76mm
Price: 150.00 USD
Availability: InStock

Home Products Button Drill Bit

T45 70mm 76mm Spherical Threaded Button Rock Drill Bits

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Certification:	ISO
Model Number:	T45 70mm/76mm

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	negotiation
Packaging Details:	Carton Box or Wooden Box
Delivery Time:	25 days
Payment Terms:	T/T or L/C
Supply Ability:	20000 pieces per month

Contact Now

Detailed Product Description

Product Name:	T45 Threaded Drill Bit	Color:	Orange, Yellow, Black, Red,Green, Etc
Advantage:	Lower Unit Drilling Cost	Material:	Carbide
Skirt:	Normal Skirt / Retract Skirt	Formation:	Hard / Medium Hard / Soft Rock Formation
Highlight:	hardened steel drill bits , milling drill bits

Description

T45 button bits are widely used in Bench drilling, underground long hole drilling to match extension MF rod, MM rod heavy duty top hammer Drilling.

Our offers a complete selection of Top Hammer Drilling Tools to meet all of your drilling needs, which are suitable for any type of drilling application in mining, tunneling, construction and quarry work, and thread adapters in a full range of standard diameters.

With the top quality of alloy steels and the best carbides, we produce all Top Hammer Drilling Tools by hot press technology and multiple heat-treated process to extend the product life for maximum wear and performance in the toughest of drilling conditions.

Applications

• Underground mining
• Tunneling
• Quarry

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Notes:
Special sizes may be available upon request.

How to order?
Button Bit:Diameter + Thread + Skirt Shape + Face Design + Insert Configuration

Specification

Part Number	Product Code and Brief Description	Bit Diameter (mm)	Bit Diameter (inch)	Front Buttons (No. x mm)	Gauge Buttons (No. x mm)	Angle	Front Flushing Holes	Side Flushing Holes	Weight (kg)
4148300811	B1289-T45-S, T45 Button Bit, Spherical Buttons	89	3 1/2	4x13	8x13	40°	2	-	4.6
4148300812	B1849-T45-S, T45 Button Bit, Spherical Buttons	89	3 1/2	6x11	8x12	35°	2	-	4.6
4148300813	B1189-T45-S, T45 Button Bit, Spherical Buttons	89	3 1/2	3x11, 2x11	6x13	35°	3	1	4.1
4148300814	B1389-T45-S-1, T45 Button Bit, Spherical Buttons	89	3 1/2	4x11, 1x11	8x12	35°	4	-	4.6
4148300815	B1389-T45-S-2, T45 Button Bit, Spherical Buttons	89	3 1/2	4x13, 1x13	8x13	35°	4	-	4.6

T45 70mm 76mm Spherical Threaded Button Rock Drill Bits 0
