| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | T51 102mm |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 15-20 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| Type: | Button Drill Bit | Material: | Tungsten Carbide |
|---|---|---|---|
| Face Design: | Flat, Drop, Centre | Head Diameters: | 33mm ~ 152mm; |
| Skirt Designs: | Normal, Retrac, Straightrac; | Color: | Customized |
| High Light: | industrial drill bits,milling drill bits |
||

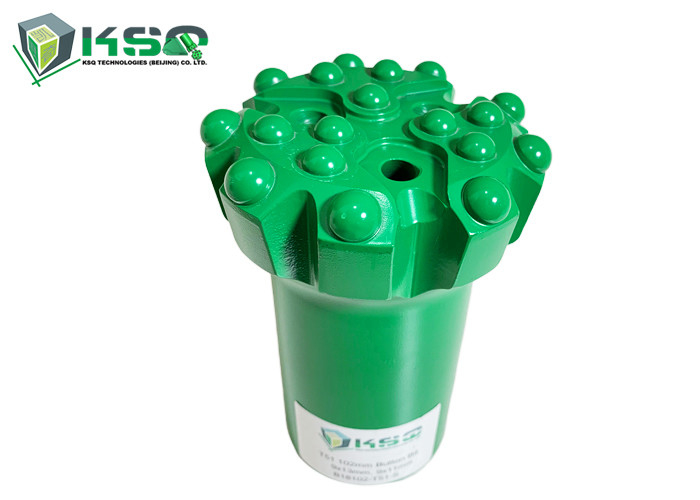

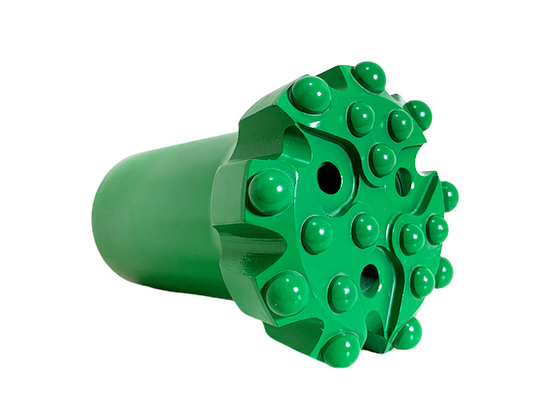

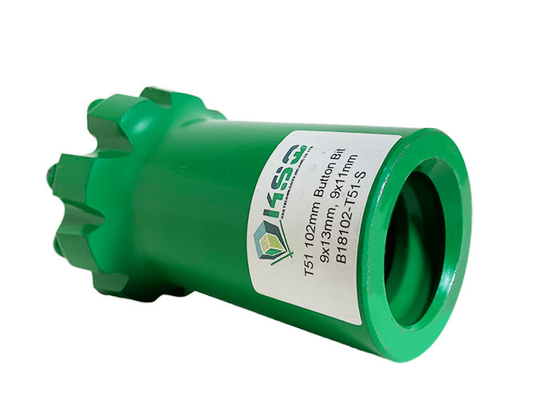

Industrial Alloy Steel T51 102mm Underground Mining Tools Threaded Button Bits
Description
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides. Through heat treatment, our drilling tools are tough enough to meet rock drilling demands and have the least loss of energy while drilling the rocks. Besides, we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
Super Quality--- Our button bit is made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
Global Reputation--- The drill button bit is widely used in metallurgy mine, geological exploration, water conservancy construction, electricity, traffic, tunnel, quarry, national defence stone project etc. Our clients
Are all over the world, like Germany, Spain, Italy, Russia, Japan, India, Australia, Mexico, Colombia, Brazil,
Chile, South Africa Peru...etc. We have very good reputation worldwide!
Applications
• Underground mining
• Tunneling
• Quarry
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory
Specification
| Diameter | Buttons and Size (mm) | Flushing Hole | Weight | Part Number | ||||
| mm | inch | Front | Gauge | Angle | Front | Side | (kg) | |
| Spherical | ||||||||
| 89 | 3 1/2 | 4x13 | 8x13 | 40° | 2 | - | 4.9 | 4148300885 |
| 89 | 3 1/2 | 5x13 | 8x13 | 35° | 2 | 1 | 4.9 | 4148300886 |
| 89 | 3 1/2 | 3x11, 2x11 | 6x13 | 35° | 4 | - | 4.9 | 4148300887 |
| 89 | 3 1/2 | 4x11, 1x11 | 8x13 | 35° | 4 | - | 4.9 | 4148300888 |
| 89 | 3 1/2 | 4x13, 1x13 | 8x13 | 35° | 4 | - | 4.9 | 4148300889 |
| 102 | 4 | 4x14 | 8x14 | 40° | 2 | - | 5.8 | 4148300890 |
| 102 | 4 | 6x13 | 8x16 | 35° | 2 | 1 | 5.8 | 4148300891 |
| 102 | 4 | 3x13, 2x13 | 6x14 | 35° | 3 | 1 | 5.2 | 4148300892 |
| 102 | 4 | 4x13, 1x13 | 8x14 | 35° | 4 | - | 5.8 | 4148300893 |
| 102 | 4 | 4x13, 2x13 | 8x13 | 35° | 4 | 1 | 5.8 | 4148300894 |
| 115 | 4 1/2 | 6x14 | 8x14 | 35° | 2 | - | 6.8 | 4148300895 |
| 115 | 4 1/2 | 6x14 | 8x16 | 35° | 2 | - | 6.8 | 4148300896 |
| 115 | 4 1/2 | 4x13, 2x13 | 8x14 | 35° | 4 | - | 6.8 | 4148300897 |
| 115 | 4 1/2 | 4x13, 3x13 | 8x14 | 35° | 4 | - | 6.8 | 4148300898 |
| 115 | 4 1/2 | 4x14, 2x14 | 8x16 | 35° | 4 | - | 6.8 | 4148300899 |
| 115 | 4 1/2 | 4x13, 2x13 | 8x14 | 35° | 4 | - | 6.8 | 4148300913 |
| 115 | 4 1/2 | 4x13, 3x13 | 8x14 | 35° | 4 | - | 6.8 | 4148300914 |
| 115 | 4 1/2 | 4x14, 2x14 | 8x16 | 35° | 4 | - | 6.8 | 4148300915 |
