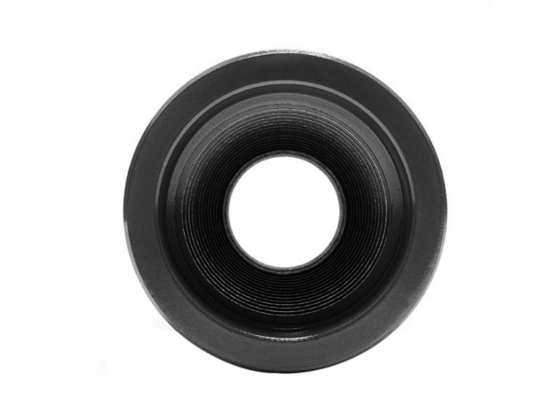

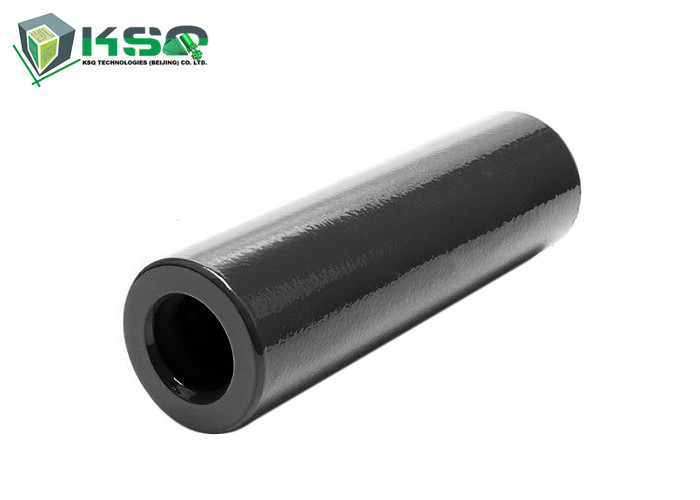

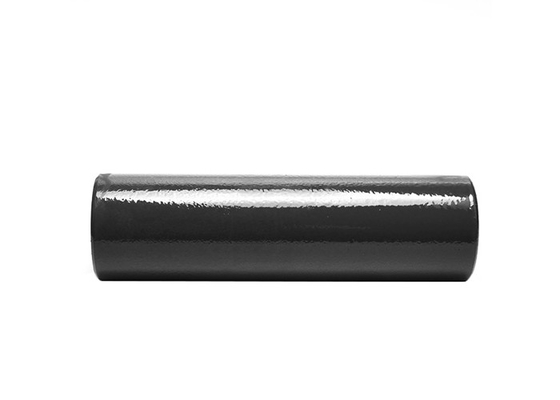

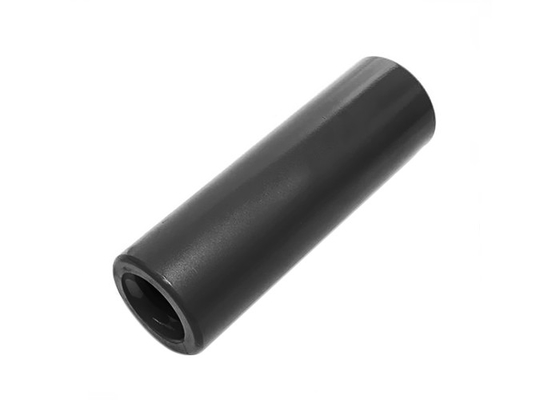

Bench Drilling Tungsten Carbide R32 Crossover Drill Coupling Sleeve

Bench Drilling Tungsten Carbide R32 Crossover Drill Coupling Sleeve

Bench Drilling Tungsten Carbide R32 Crossover Drill Coupling Sleeve
Bench Drilling Tungsten Carbide R32 Crossover Drill Coupling Sleeve
Bench Drilling Tungsten Carbide R32 Crossover Drill Coupling Sleeve
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: R32 Drill Coupling Sleeve
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Type: Drill Sleeve Color: Customized
Advantage: High Performance Application: Bench And Long Hole Drilling
Material: Carbon Steel Quality: OEM Standard
High Light:

threaded coupling

,

rock drilling tool

Bench Drilling Tungsten Carbide R32 Crossover Drill Coupling Sleeve



Description



Coupling sleeves are available with both half-bridge and full-bridge types, as well as adapter couplings.

Semi-bridge coupling, by far is the most popular, has a small non-threaded bridge in the centre. The drill rod cannot thread past the centre of the couplings, and the smaller diameter rods portions butt together in the centre bridge area of the coupling. Semi-bridge couplings are most suited to high torque machines. Most rope (R) and Trapezoidal (T) threaded couplings are semi-bridged.



Full bridge coupling has a great advantage that it positively eliminates the potential for the coupling to creep along the threaded joints. These couplings, are typically used in a Trapezoidal thread, in surface drilling application, have better uncoupling characteristics and tend to maintain tighter joints. Full-bridge couplings have less chance of jamming and are best suited to machines equipped with independent rotation.

Adapter couplings are used when changing from one thread type, or size, to another and are typically required only in special circumstances.


Crossover coupling using R32 thread system


• R32 thread system
• Widely used in drifting and tunneling


Color: Green or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: R32 Crossover Coupling



Applications
• Underground Mining
• Tunneling



Competitive Advantage

High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



Specification

Part Number

Product Code and Brief

Description

Length

(mm)

Length

(inch)

Diameter

(mm)

Diameter

(inch)

Thread

Weight

(kg)

4148300581

CS-R25/R32-150, R25

Crossover Coupling

150 6     45 1 7/9 R25-R32 1.1
4148300582

CS-R25/R32-160, R32

Crossover Coupling

160 6 2/7 45 1 7/9 R25-R32 1.2
4148300583

CS-R28/R32-160, R32

Crossover Coupling

160 6 2/7 45 1 7/9 R28-R32 1.2
4148300584

CS-R28/R38-160, R32

Crossover Coupling

160 6 2/7 55 2 1/6 R28-R38 1.8
4148300585

CS-R28/R38-170, R32

Crossover Coupling

170 6 2/3 55 2 1/6 R28-R38 2.0
4148300586

CS-R28/R38-180, R32

Crossover Coupling

180 7     55 2 1/6 R28-R38 2.2
4148300587

CS-R28/R38-210, R32

Crossover Coupling

210 8 1/4 55 2 1/6 R28-R38 2.8
4148300588

CS-R28/T38-170, R32

Crossover Coupling

170 6 2/3 56 2 1/5 R28-R38 2.1
4148300589

CS-R28/T38-180, R32

Crossover Coupling

180 7     56 2 1/5 R28-R38 2.2
4148300590

CS-R28/T38-210, R32

Crossover Coupling

210 8 1/4 56 2 1/5 R28-R38 2.8
4148300591

CS-R28/T45-190, R32

Crossover Coupling

190 7 1/2 63 2 1/2 R28-R45 3.2

Bench Drilling Tungsten Carbide R32 Crossover Drill Coupling Sleeve 0Bench Drilling Tungsten Carbide R32 Crossover Drill Coupling Sleeve 1
