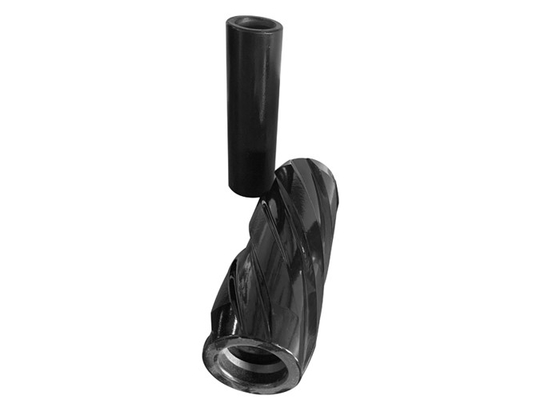

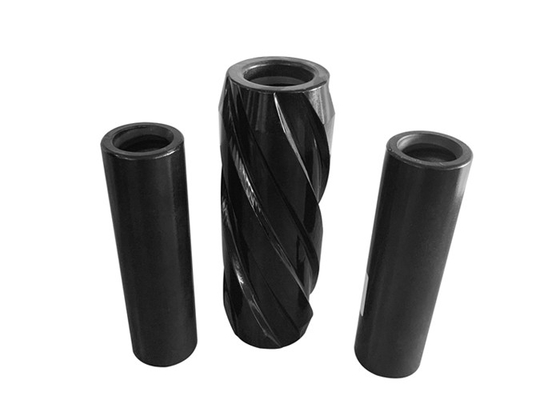

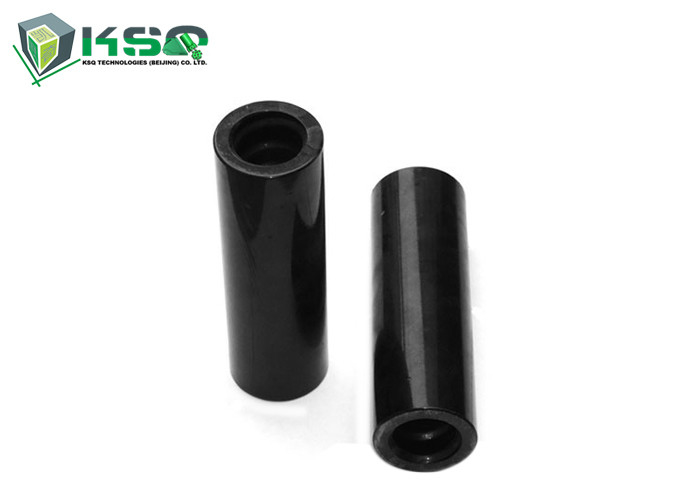

T38 190mm Long Hole Drilling Stone Drilling Drill Threaded Coupling

T38 190mm Long Hole Drilling Stone Drilling Drill Threaded Coupling

T38 190mm Long Hole Drilling Stone Drilling Drill Threaded Coupling
T38 190mm Long Hole Drilling Stone Drilling Drill Threaded Coupling
T38 190mm Long Hole Drilling Stone Drilling Drill Threaded Coupling
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: T38 190mm
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Type: Coupling Sleeves Material: High Manganese Steel, Tungsten Carbide Alloy
Model Type: R32,R38,T38, T45, T51,GT60 Length: 190mm 210mm, 250mm
Aplication: Connecting The Top Hammer Machine Color: Black Or Customized
High Light:

threaded coupling

,

rock drilling tool

T38 190mm Long Hole Drilling Stone Drilling Drill Threaded Coupling



Description

Coupling sleeves, other name is Coupling, when using rock drills with male shank adapters and a conventional drifter rod, a coupling is required to join the adapter to the rod,ensuring the ends touch for efficient energy transmission. Couplings are also used to connect several rods to each other in the same way. Couplings have a middle stop to prevent over-threading on to the drill rod. We can manufactures semi-bridge, full bridge coupling sleeves for the percussive tools.



Advantages:
Compared with the oversea brands, our advantages are bellowing:
a. Our products can match over 95% against the original products
b. Price are competitive against the famous brands and best quality against the small factory


Applications
• Underground Mining
• Tunneling


Specification

R38 Coupling Sleeve
170 6 2/3 55 2 1/6 R38 1.9 4148300703
190 7 1/2 55 2 1/6 R38 2.1 4148300704
T38 Coupling Sleeve
190 7 1/2 55 2 1/6 T38 2.1 4148300803
T45 Coupling Sleeve
210 8 1/4 63 2 1/2 T45 3 4148300881
210 8 1/4 66 2 3/5 T45 3.3 4148300882
T51 Coupling Sleeve
225 8 6/7 71 2 4/5 T51 4.6 4148300961
225 8 6/7 76 3 T51 4.8 4148300962
235 9 1/4 72 2 5/6 T51 4.7 4148300963
235 9 1/4 77 3 T51 4.9 4148300964

T38 190mm Long Hole Drilling Stone Drilling Drill Threaded Coupling 0T38 190mm Long Hole Drilling Stone Drilling Drill Threaded Coupling 1
