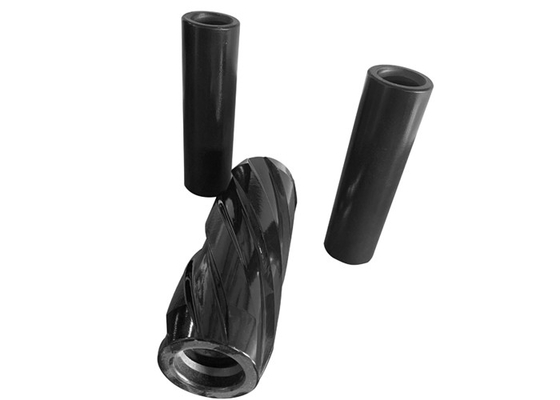

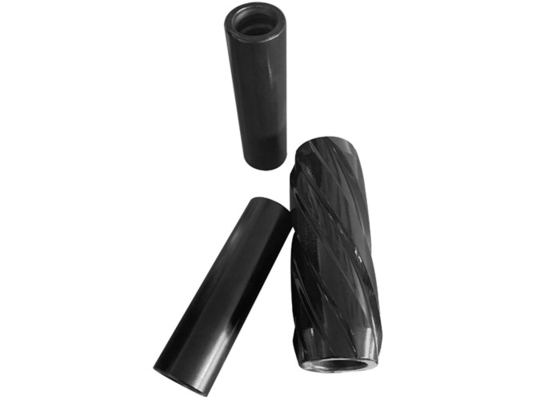

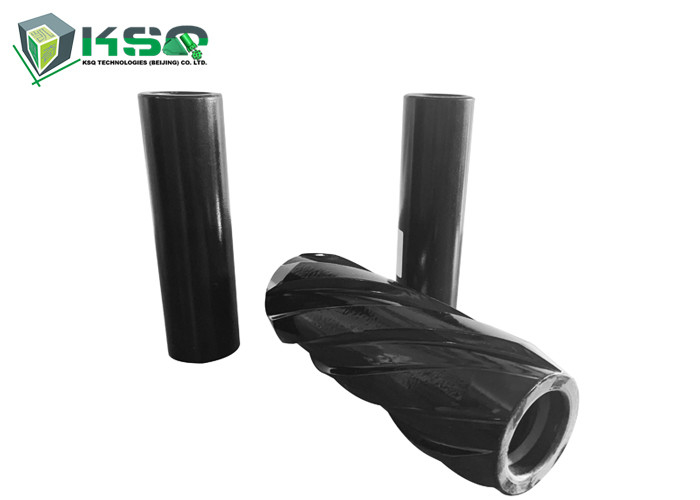

Tunneling Length 8.25 Inch T45 210mm Threaded Couplings

Tunneling Length 8.25 Inch T45 210mm Threaded Couplings

Tunneling Length 8.25 Inch T45 210mm Threaded Couplings
Tunneling Length 8.25 Inch T45 210mm Threaded Couplings
Tunneling Length 8.25 Inch T45 210mm Threaded Couplings
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: T45 210mm
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product Name: Coupling Sleeve Color: Customized
Heat Treatment: Fully Carburization Feature: High Wear Resistant
Usage: Small Hole Drilling Shank Item: Drill Mining Rod
High Light:

threaded coupling

,

rock drilling tool

Tunneling Length 8.25 Inch T45 210mm Threaded Couplings

Description

Because of different applications, we need different lengths of drill stems, so couplings sleeves are used for connecting extension rods. There are semi-bridge couplings and full bridge couplings, the only difference between them is that semi-bridge couplings have a middle stop at the middle of couplings. Usually couplings two ends are the same couplings, like R25, R32,R38,T45, T51, etc .While sometime people need crossover couplings to work, for example, one end is R32 and another end is R38, but basically all couplings are female threads at the two ends.



Full-Bridge Coupling sleeve
Eliminates the potential for the coupling to creep along the threaded joints
Typically used in surface applications
Better uncoupling characteristics and tend to maintain tighter joints
Less chance of jamming
Best suited to machines equipped with independent rotation.



Semi-Bridge Coupling sleeve
Small non-threaded bridge in the center
Steel cannot thread past bridge area
Smaller diameter steel end portions fit together in the centre bridge area of the coupling
Semi-bridged couplings are most suited to high torque machines
Most rope and T threaded couplings are semi-bridged



Same diameteCoupling sleeve
Eliminates the potential for the coupling to creep along the threaded joints
Typically used in surface applications
Better uncoupling characteristics and tend to maintain tighter joints
Less chance of jamming
Best suited to machines equipped with independent rotation.


Applications
• Underground Mining
• Tunneling


Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance


Specification

T45 Coupling Sleeve
210 8 1/4 63 2 1/2 T45 3 4148300881
210 8 1/4 66 2 3/5 T45 3.3 4148300882
T51 Coupling Sleeve
225 8 6/7 71 2 4/5 T51 4.6 4148300961
225 8 6/7 76 3 T51 4.8 4148300962
235 9 1/4 72 2 5/6 T51 4.7 4148300963
235 9 1/4 77 3 T51 4.9 4148300964

Tunneling Length 8.25 Inch T45 210mm Threaded Couplings 0Tunneling Length 8.25 Inch T45 210mm Threaded Couplings 1
