| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | 4148300390-4148300395 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| High Light: | reamer drill bit,tungsten drill bits |
||
|---|---|---|---|
Description

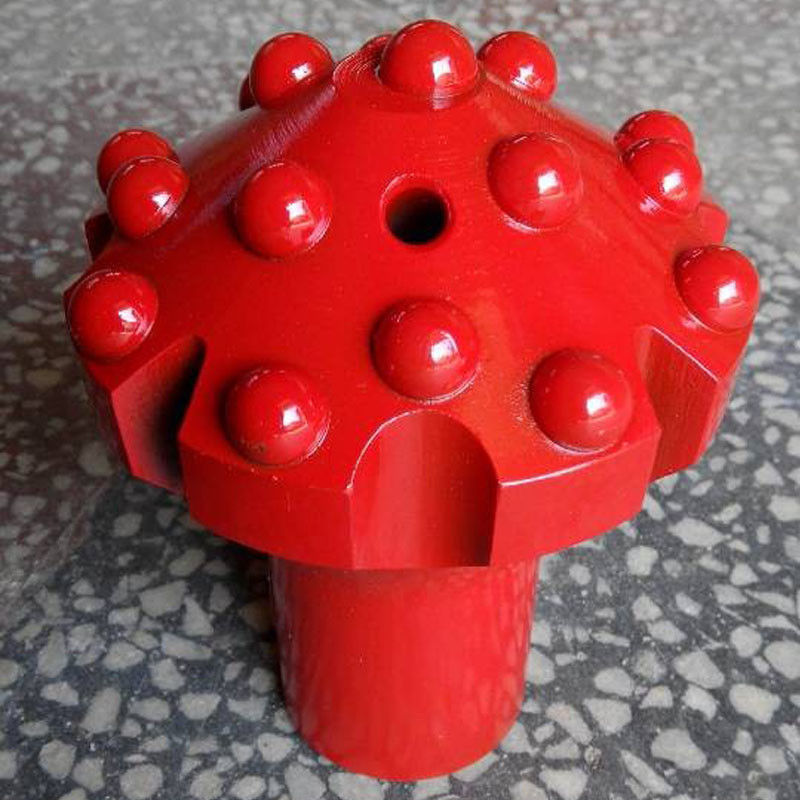

This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.
• Widely used in drifting and tunneling
• R25 thread system
Color: Green,Blue or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R25 Reaming Bit 6°
Applications
• Underground mining
• Tunneling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
specification
1
<
| Part Number |
Product Code and Brief Description |
Bit Diameter (mm) |
Bit Diameter (inch) |
Front Buttons (No. x mm) |
Gauge Buttons (No. x mm) |
| 4148300390 |
RE1064-6D-R25, R25 Reaming Bit 6° |
64 | 2 1/2 | 2x10 | 8x9 |
| 4148300391 |
RE1264-6D-R25, R25 Reaming Bit 6° |
64 | 2 1/2 | 4x8 | 8x9 |
| 4148300392 |
RE1076-6D-R25, R25 Reaming Bit 6° |
76 | 3 | 2x11 | 8x11 |
| 4148300393 |
RE1276-6D-R25, R25 Reaming Bit 6° |
76 | 3 | 4x10 | 8x10 |
| 4148300394 |
RE1289-6D-R25, R25 Reaming Bit 6° |
89 | 3 1/2 | 4x11 | 8x11 |
| 4148300395 |
PA1289-6D-R25, R25 Reaming Bit 6° |
89 | 3 1/2 | 4x10 | 8x10 |
2
<
| Product Code and Brief Description | Angle |
Front Flushing Holes |
Side Flushing Holes |
Weight (kg) |
| RE1064-6D-R25, R25 Reaming Bit 6° | 35° | - | - | 0.8 |
| RE1264-6D-R25, R25 Reaming Bit 6° | 25° | - | - | 0.8 |
| RE1076-6D-R25, R25 Reaming Bit 6° | 35° | - | - | 1.2 |
| RE1276-6D-R25, R25 Reaming Bit 6° | 30° | - | - | 1.2 |
| RE1289-6D-R25, R25 Reaming Bit 6° | 35° | - | - | 1.7 |
| PA1289-6D-R25, R25 Reaming Bit 6° | 30° | - | - | 1.7 |
