T45 Tungsten Carbide Dome Reaming Drill Bit Threaded Drill Bit

T45 Tungsten Carbide Dome Reaming Drill Bit Threaded Drill Bit

T45 Tungsten Carbide Dome Reaming Drill Bit Threaded Drill Bit
T45 Tungsten Carbide Dome Reaming Drill Bit Threaded Drill Bit
T45 Tungsten Carbide Dome Reaming Drill Bit Threaded Drill Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: 4148300863-4148300864
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
High Light:

tungsten drill bits

,

cnc drill bits

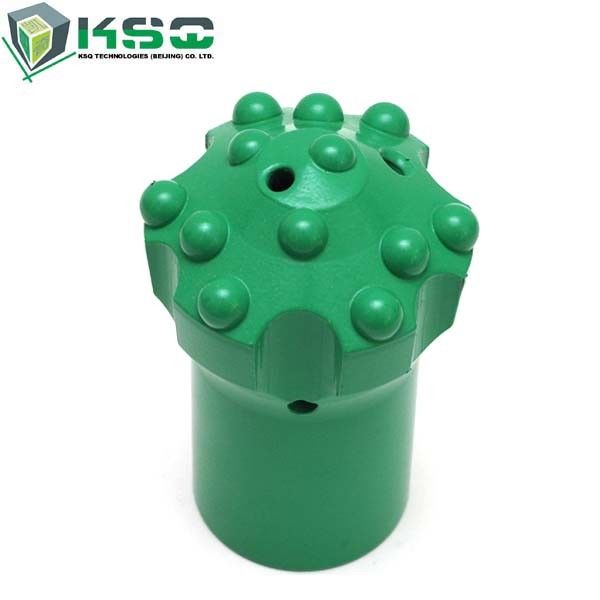

T45 Tungsten Carbide Dome Reaming Drill Bit Threaded Drill Bit



Description


This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.


• Widely used in drifting and tunneling
• T45 thread system


Color: Green,Blue or Based on Customer requirements


Material: Tungsten carbide and high strength alloy steel


Processing: CNC milling and proprietary heat treatment process


Type: T45 Dome Bit For Reaming Spherical Buttons



Applications


• Underground mining
• Tunneling



Competitive Advantage



• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



specification




Part Number Bit Diameter (mm) Bit Diameter (inch)

Front Buttons

(No. x mm)

Gauge Buttons

(No. x mm)

4148300863 127 5     1x13 18x13
4148300864 152 6     2x14 18x14



Product Code and Brief Description Angle

Front Flushing

Holes

Side Flushing

Holes

Weight

(kg)

RE19127-T45-S, T45 Dome Bit For Reaming, Spherical Buttons 35° 3 1 6
RE20152-T45-S, T45 Dome Bit For Reaming, Spherical Buttons 35° 3 1 10.6
